Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 1MRK002311-AAr06 |

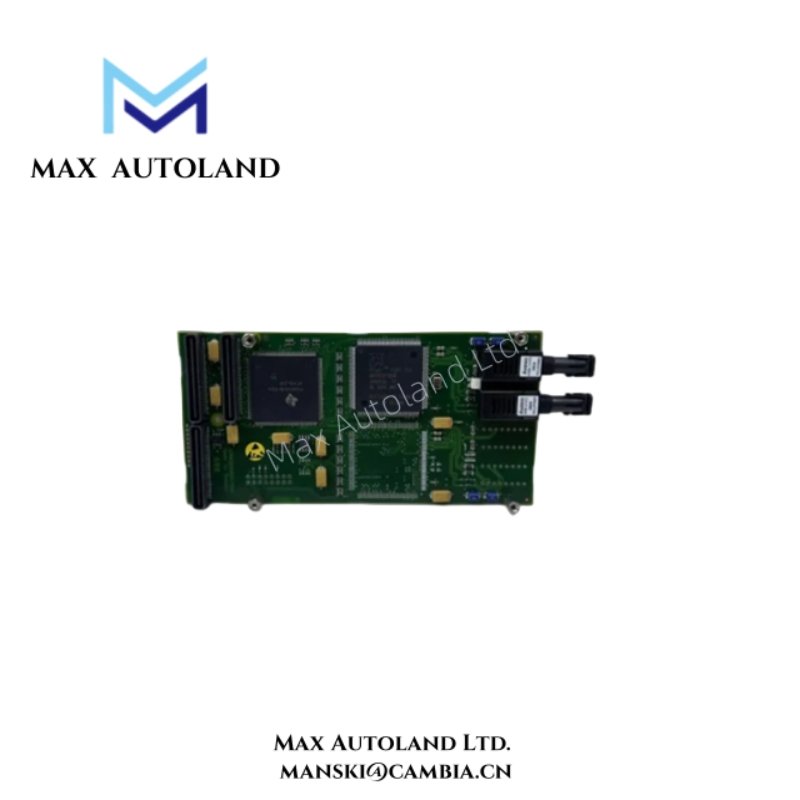

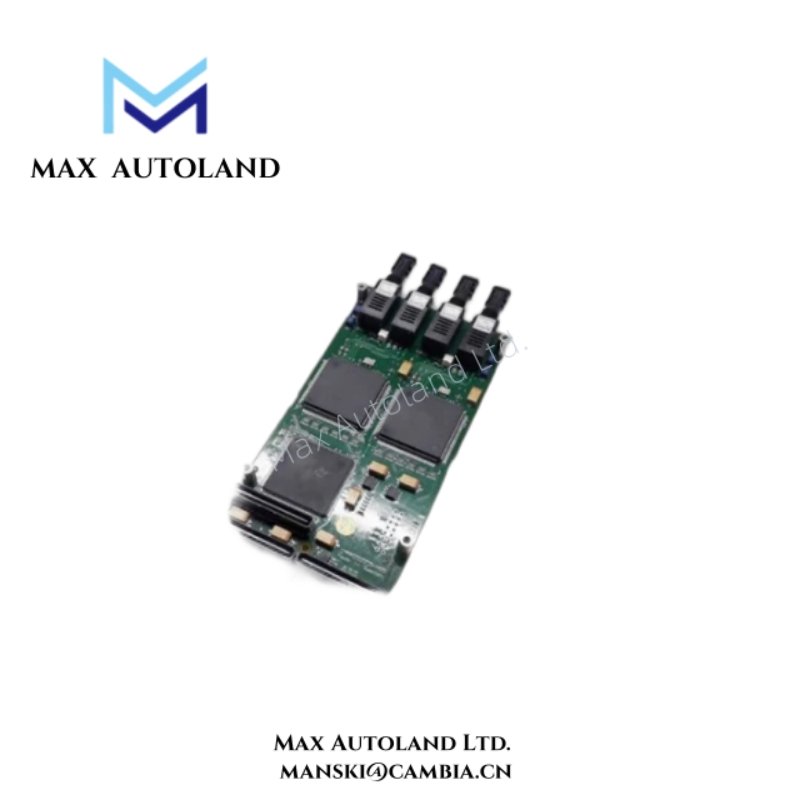

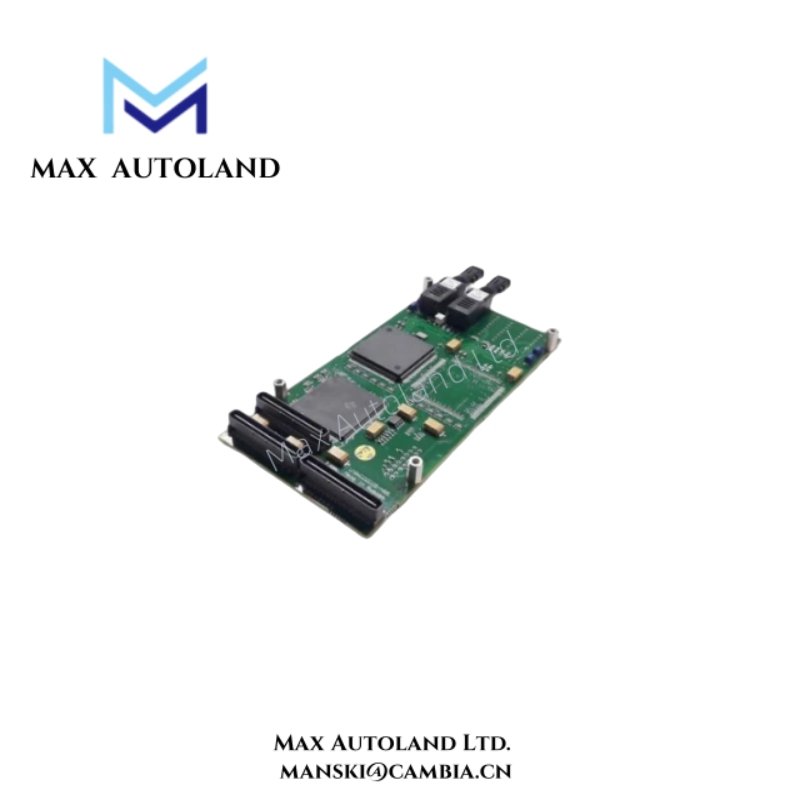

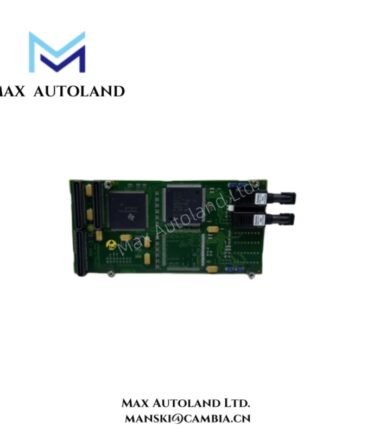

| Module Type | Optical Long Range Line Data Communication Module |
| Communication Type | Single-mode / Multi-mode Optical Fiber |
| Maximum Transmission Distance | Up to 20 km (single-mode), 2 km (multi-mode) |
| Data Rate | 100 Mbps (full-duplex) |
| Optical Wavelength | 1310 nm / 1550 nm (depending on fiber type) |
| Transmit Power | -5 to +2 dBm (typical) |
| Receiver Sensitivity | -28 dBm (minimum) |
| Connector Type | SC or LC connector (depending on model) |
| Link Budget | ≥ 20 dB |
| Signal Integrity | Low jitter, error-free transmission |
| Isolation | Optical isolation for immunity to electrical noise |
| Status Indicators | Power, Link, Activity LEDs |
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 5 W |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Shock & Vibration | IEC 60068 compliant |
| Certifications | CE, UL, CSA |
| Typical Applications | DCS networks, PLC remote communication, long-distance automation links |
FAQ
It enables high-speed, long-range optical data communication between control systems and field devices.Q2: What is the maximum transmission distance?
The module supports up to 20 km depending on fiber type and installation conditions.
Q3: Is it compatible with ABB PLC and DCS systems?
Yes, it integrates seamlessly with ABB PLCs and DCS networks.
Q4: Does it operate in harsh industrial environments?
Yes, it is designed for electrical noise and temperature variations from -10 to 60°C.
Q5: How is the module mounted?
It can be mounted on a DIN rail or panel according to system requirements.
