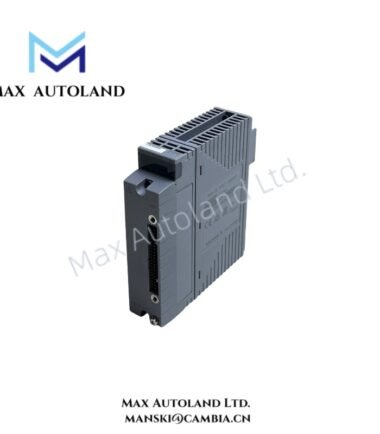

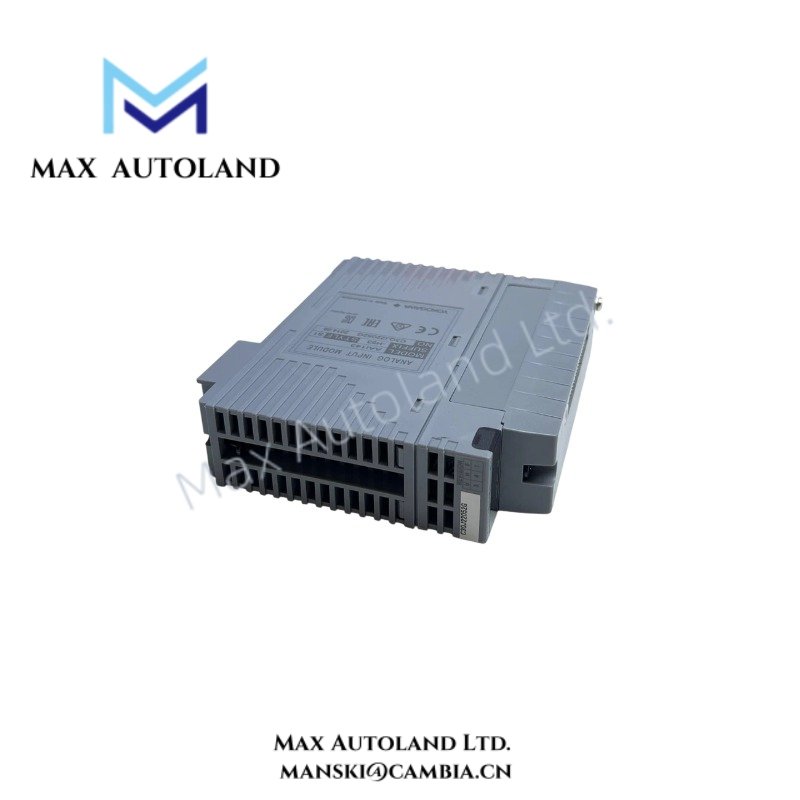

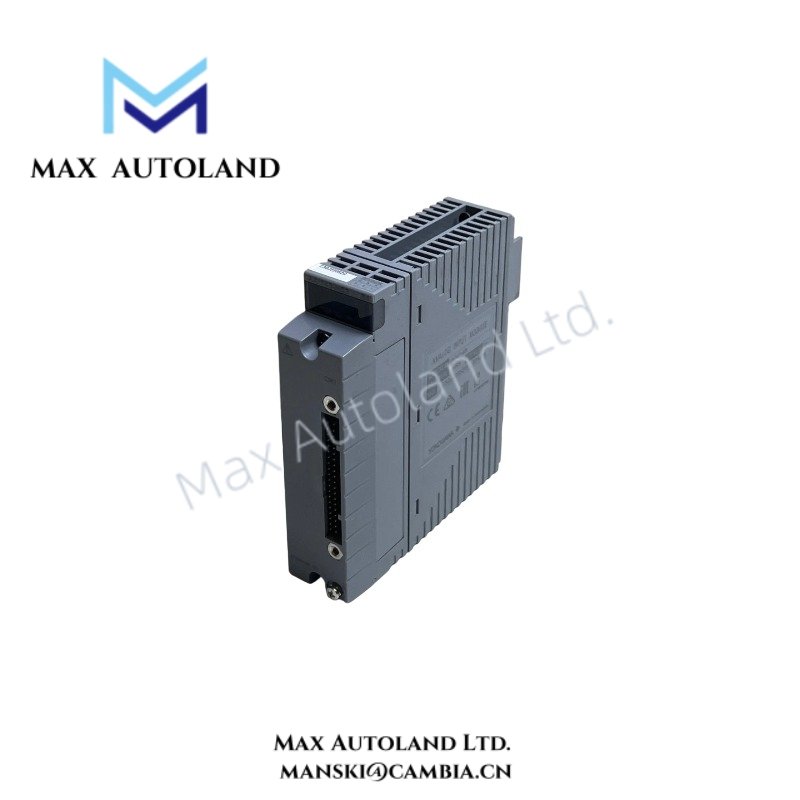

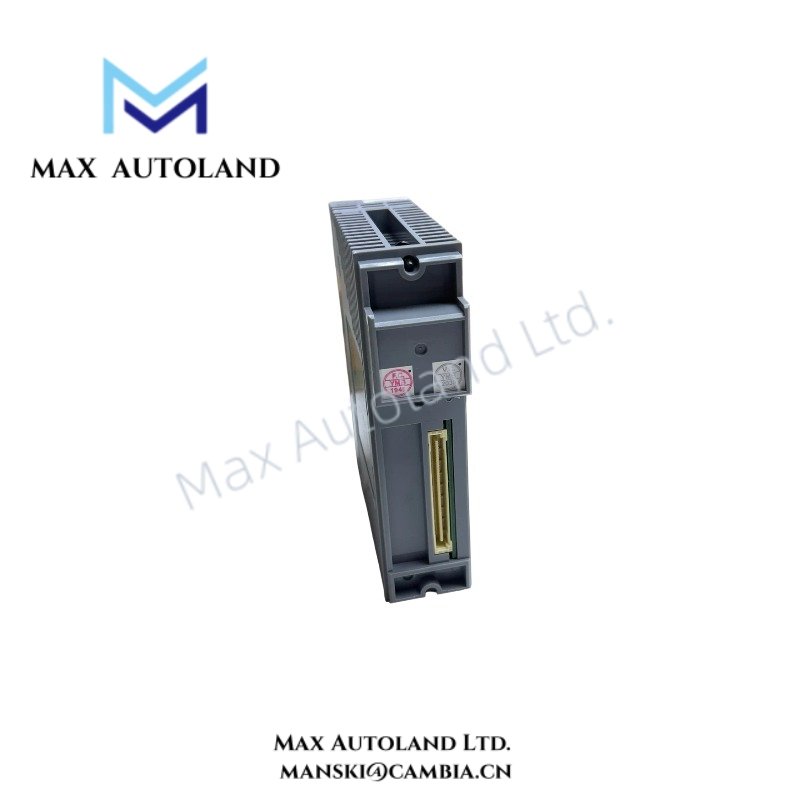

AAI143-H53/A4D00 Yokogawa Analog Input Module

Overview

The Yokogawa SAI143-H53/A4D00, also cataloged as the SAI143 Analog Input Module, operates as a dedicated hardware component for 4-20 mA signal acquisition with HART communication within Yokogawa CENTUM control system platforms.

Hardware Specifications

4-20 mA HART Process Signal Interface

The SAI143-H53/A4D00 receives analog current signals from field transmitters and processes 16 isolated input channels. Additionally, the module supports HART communication through the analog input loop, allowing digital field device information transmission together with the 4-20 mA measurement signal.

The module provides channel-to-channel isolation to reduce interference between independent field loops. Furthermore, the isolated input architecture supports stable signal acquisition in distributed control system installations where multiple field instruments connect to the same I/O subsystem.

The HART function operates with Yokogawa DCS platforms and enables transmitter configuration, diagnostic data collection, and process variable monitoring through the communication layer.

Frequently Asked Questions

Q: What input signal does the Yokogawa SAI143-H53/A4D00 support?
A: The module accepts 4-20 mA analog input signals and supports HART communication through the same current loop.

Q: How many input channels are available on the SAI143-H53/A4D00?
A: The module provides 16 analog input channels with module isolation.

Q: What terminal configuration is included with this model?
A: The /A4D00 option provides a dual-redundant pressure clamp terminal block for analog signal connection.

Field Installation Guidelines

Install the SAI143-H53/A4D00 according to the Yokogawa I/O subsystem installation manual and approved cabinet wiring practices.

Use shielded cables for analog field wiring and connect cable shields according to the grounding method specified for the control cabinet. Avoid routing analog signal cables together with high-voltage power cables or strong electromagnetic interference sources.

Verify the 4-20 mA loop polarity before energizing the module. Confirm that field transmitters provide compatible current output signals and that HART communication wiring maintains proper loop continuity.

Check the terminal block connection condition before system startup. Ensure that redundant terminal connections, grounding points, and cabinet backplane interfaces remain correctly installed.
