Overview

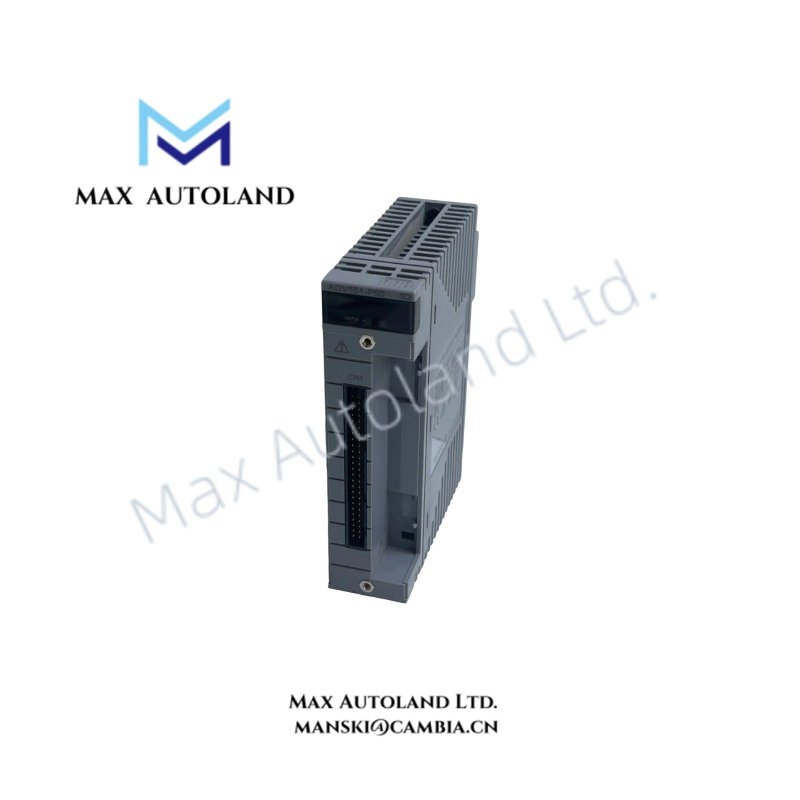

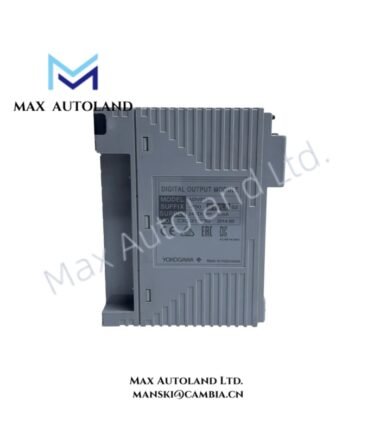

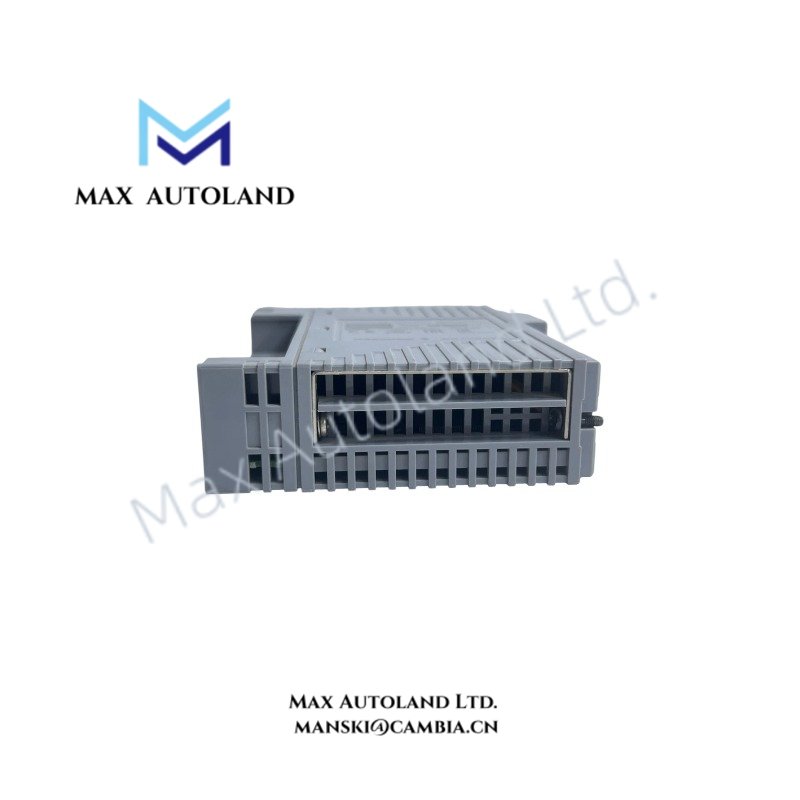

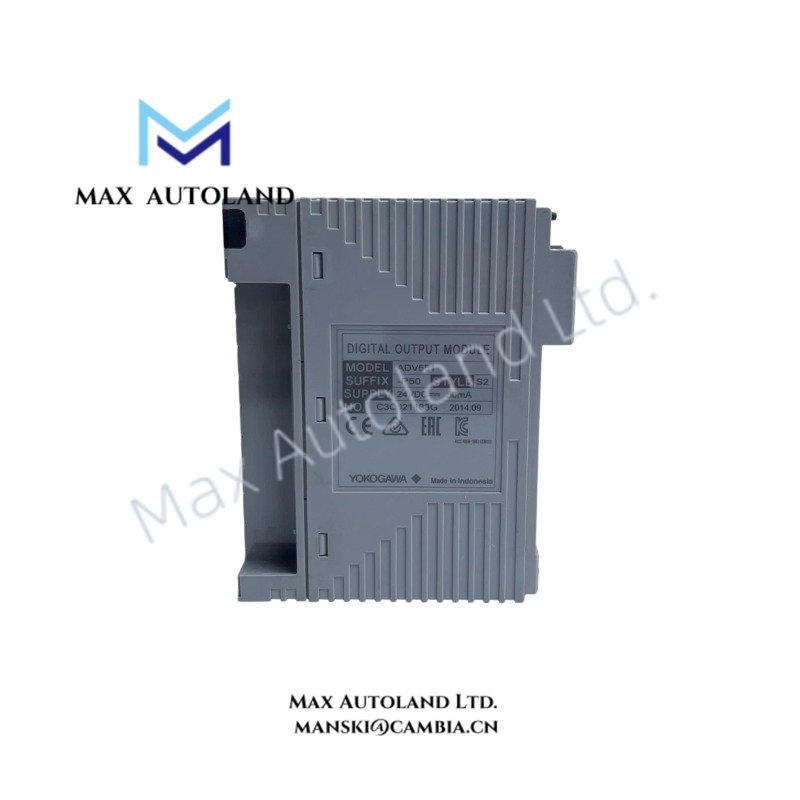

Configured for digital output execution in Yokogawa ESB Bus Node Unit and Field Control Unit platforms, the Yokogawa ADV551-P50 (ADV551-P50 Digital Output Module) provides direct physical signal output control for CENTUM VP distributed control system I/O configurations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV551-P50 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Digital Output Module |
| System Compatibility | ESB Bus Node Unit ANB10S, ANB10D; Optical ESB Bus Node Unit ANB11S, ANB11D; Field Control Unit AFV30S, AFV30D, AFV40S, AFV40D |
| Output Function | Digital output signal processing |
| Channel Configuration | Channel-by-channel function assignment |
| Supported Point Modes | SO, PW, TP |
| Status Output Mode | SO status output |
| Pulse Output Mode | PW pulse width output |
| Time Proportioning Output Mode | TP time-proportioning ON/OFF output |
Yokogawa DCS Digital Signal Output Configuration
The ADV551-P50 performs discrete output operations through configurable digital channels. Each channel can be assigned according to the required point mode within the Yokogawa I/O engineering environment.
The supported point modes include status output (SO), pulse width output (PW), and time-proportioning ON/OFF output (TP). Therefore, the module supports different field control sequences through software-defined channel allocation.
Example channel assignment:
| Terminal Assignment | Function Mode | Description |
|---|---|---|
| Terminals 1 and 2 | PW | One pulse width output using two contiguous terminal numbers |
| Terminals 3 and 4 | TP | Two time-proportioning outputs using two contiguous terminal numbers |
| Terminals 5 and 6 | TP | Two time-proportioning outputs using two contiguous terminal numbers |
The module integrates with Yokogawa process control architectures through ESB communication infrastructure. In addition, the design supports Yokogawa DCS signal management requirements, including channel separation and controlled field output execution.
Frequently Asked Questions
Q: Which Yokogawa hardware platforms support the ADV551-P50 module?
A: The ADV551-P50 installs in ESB Bus Node Units ANB10S and ANB10D, Optical ESB Bus Node Units ANB11S and ANB11D, and Field Control Units AFV30S, AFV30D, AFV40S, and AFV40D.
Q: Can the ADV551-P50 output functions be configured individually by channel?
A: Yes. The module supports channel-by-channel function assignment, allowing SO, PW, and TP point modes to be configured according to application requirements.
Q: Does the ADV551-P50 provide analog signal output capability?
A: No. The ADV551-P50 is a digital output module designed for discrete output functions only.
Field Installation Guidelines
- Install the ADV551-P50 only in the specified Yokogawa ESB Bus Node Unit or Field Control Unit hardware locations.
- Verify the module slot position and system configuration before applying field wiring.
- Use appropriate terminal identification procedures when assigning PW or TP output channels because these functions may require contiguous terminal allocation.
- Maintain separation between digital output wiring and high-voltage power cables to reduce electrical interference.
- Connect cable shields according to the site grounding standard and Yokogawa installation documentation.
- Confirm I/O database configuration before commissioning field output operations.
