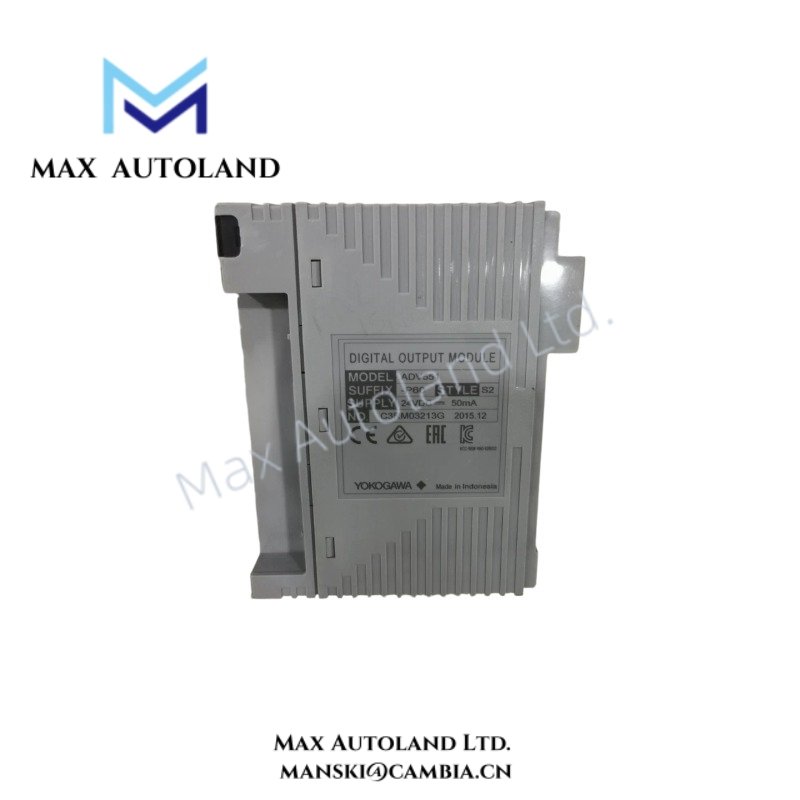

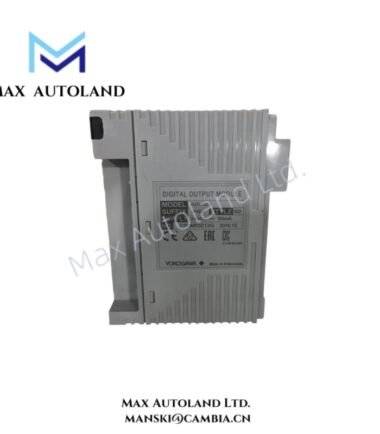

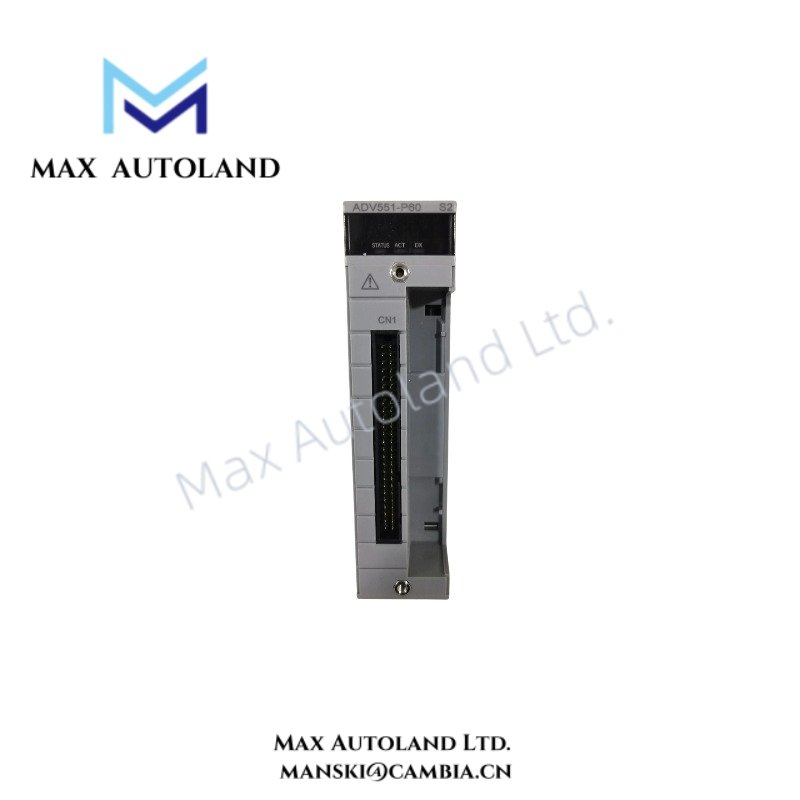

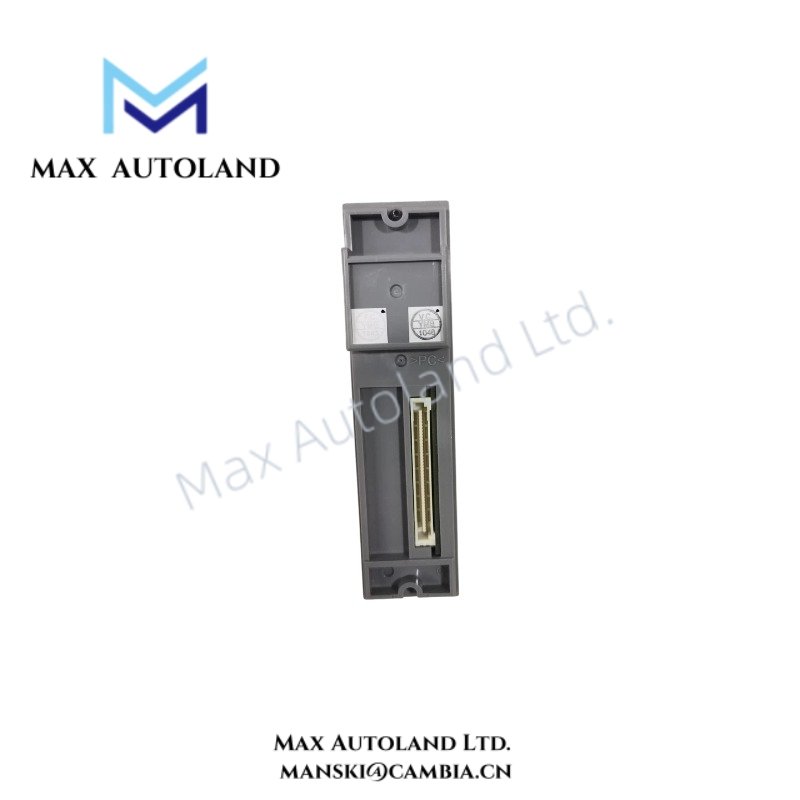

ADV551-P60 Yokogawa Digital Output Module

Overview

Configured for transistor output signal execution in Yokogawa CENTUM VP and CENTUM CS 3000 FIO systems, the Yokogawa ADV551-P60 (ADV551 Digital Output Module) provides direct physical/electrical switching control through 32 isolated 24 VDC output channels.

Hardware Specifications

Yokogawa DCS Signal Output and Channel Isolation Characteristics

The ADV551-P60 operates as a discrete output interface within Yokogawa DCS I/O architectures. Therefore, it converts internal controller commands into 24 VDC transistor output signals for external field devices.

The module provides 32 isolated output channels and supports pulse width output and time-proportional output functions. Furthermore, the isolated channel design separates field-side electrical circuits from the internal control interface to reduce signal interference.

For Yokogawa process control applications, channel-to-channel isolation maintains individual output circuit separation. However, this module does not include explosion protection certification and requires installation within an appropriate protected system environment.

The output circuit supports a maximum load current of 100 mA per channel at 26.4 VDC. Additionally, the module maintains a maximum OFF-state leakage current of 0.1 mA to control unwanted field device activation.

Frequently Asked Questions

Q: What type of field signals does the Yokogawa ADV551-P60 provide?
A: The ADV551-P60 provides 24 VDC transistor digital output signals through 32 isolated output channels for external switching devices.

Q: Does the ADV551-P60 support pulse output functions?
A: Yes. The module supports pulse width output and time-proportional output functions with an 8 ms pulse width resolution. The ON/OFF operation includes an additional delay of maximum 1 ms.

Q: Does the ADV551-P60 provide explosion protection?
A: No. The ADV551-P60 does not provide explosion protection and requires installation according to the applicable site electrical safety requirements.

Field Installation Guidelines

Install the ADV551-P60 inside the designated Yokogawa I/O carrier or system cabinet according to the applicable hardware installation manual.

Connect external 24 VDC power wiring with correct polarity and verify that the supply voltage remains within the specified 20.4 to 26.4 VDC range.

Separate output signal wiring from high-voltage power cables and strong electromagnetic interference sources. Use proper cable shielding and grounding methods where required by the installation environment.

Confirm field device current requirements before connection. Each output channel must remain within the specified maximum load current limitation.

Verify LED status indicators after installation and check output operation through the Yokogawa engineering station before placing the control loop into service.
