Overview

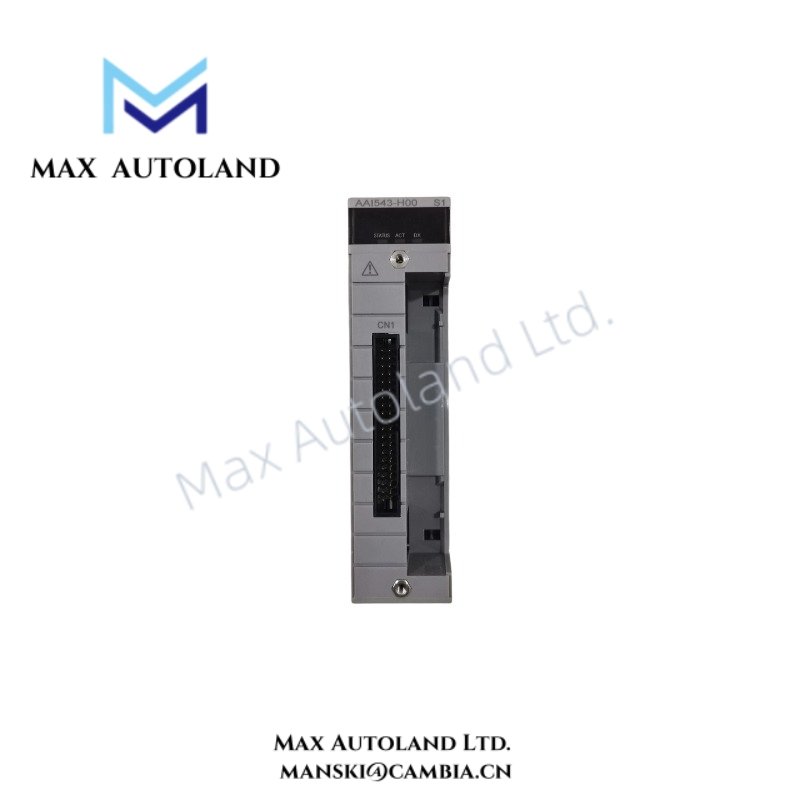

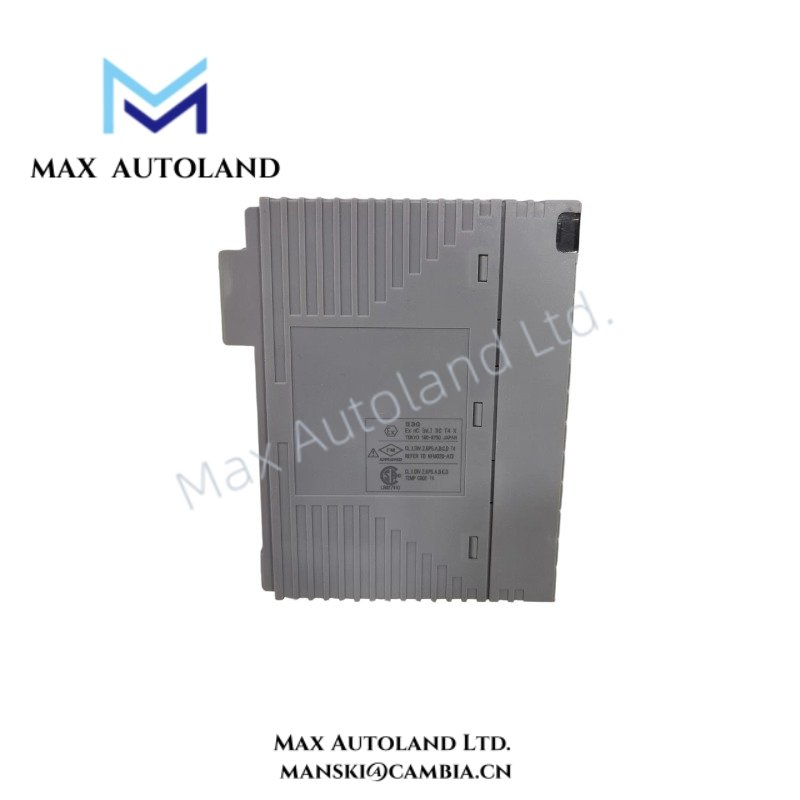

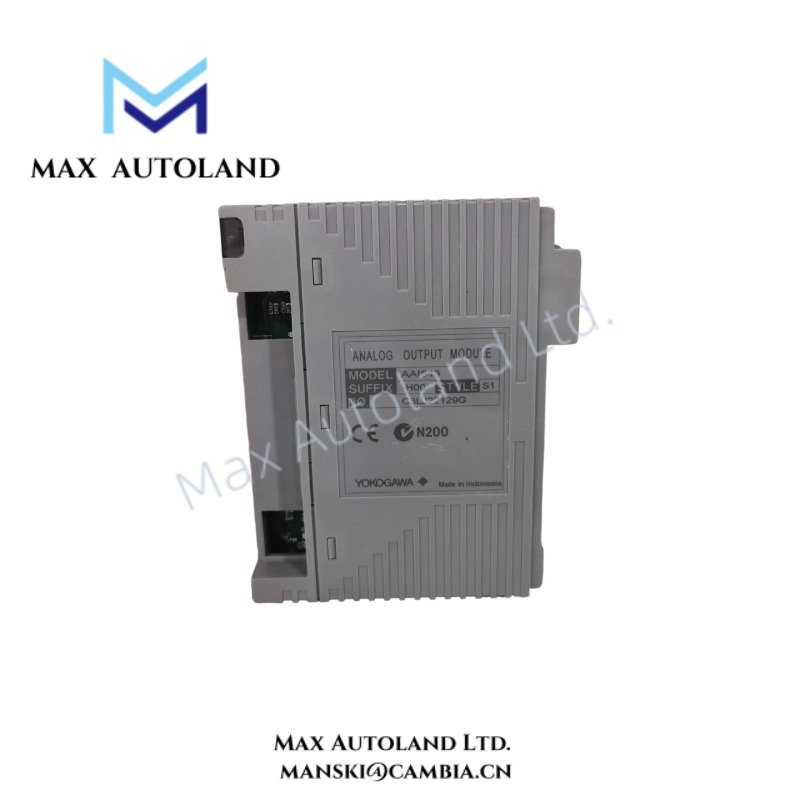

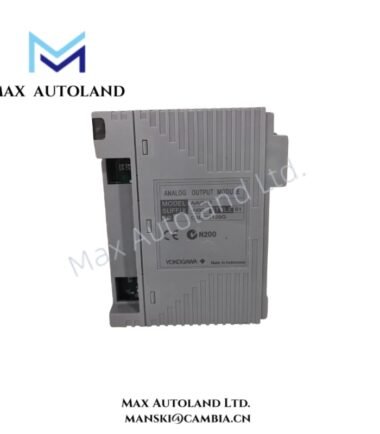

Configured for 4-20 mA signal generation in Yokogawa CENTUM VP and ProSafe-RS platforms, the Yokogawa AAI543-H00/A4S00 (AAI543 Analog Output Module) provides direct electrical output execution for field devices through isolated analog channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H00/A4S00 |
| Brand | Yokogawa |
| Origin | Japan |
| Module Type | Isolated Analog Output Module |
| System Platform | CENTUM VP / ProSafe-RS |
| Number of Channels | 16 channels |
| Output Signal | 4-20 mA DC |
| Communication Function | HART communication support |
| Terminal Block | ATA4S-00 Pressure Clamp Terminal Block |
| Isolation Type | Output-to-system galvanic isolation |
| Allowable Load Resistance | 0 to 750 ohm |
| Accuracy | +/- 48 microA |
| Data Update Period | 10 ms |
| Withstanding Voltage | 1500 VAC for 1 minute between output and system |
| Power Consumption | 230 mA at 5 VDC, 540 mA at 24 VDC |
| Weight | Approx. 0.4 kg |
Yokogawa DCS Analog Signal and HART Interface Characteristics
The AAI543-H00/A4S00 operates as a 16-channel analog output interface for process control applications. It converts controller output data into isolated 4-20 mA DC signals for connection with actuators, control valves, and field indicators.
The module supports HART communication over the analog current loop. Therefore, maintenance personnel can transmit digital configuration and diagnostic information without interrupting the primary analog output signal.
Furthermore, the module implements channel-to-system isolation to reduce electrical interference between field wiring and the DCS backplane. The isolated output structure supports stable analog transmission in industrial environments where grounding differences and signal noise may occur.
The Yokogawa AAI543 series uses channel density scaling within the CENTUM architecture. Each module provides 16 output points while maintaining individual signal processing and electrical separation between the control system and external instrumentation.
Frequently Asked Questions
Q: Does the AAI543-H00/A4S00 support HART communication on all output channels?
A: The module supports HART communication through its 4-20 mA output channels. Field device compatibility depends on the connected HART instrument configuration.
Q: Can the AAI543-H00/A4S00 operate with redundant configurations?
A: The module supports dual-redundant configurations when installed according to Yokogawa system architecture requirements. Actual switching behavior depends on the complete system configuration.
Q: What terminal connection method does the /A4S00 suffix indicate?
A: The /A4S00 option identifies the ATA4S-00 pressure clamp terminal block configuration for field wiring connection.
Field Installation Guidelines
- Install the module inside the designated Yokogawa system cabinet or I/O node according to the hardware installation manual.
- Verify the backplane connection before applying system power.
- Use shielded signal cables for 4-20 mA field wiring where electromagnetic interference may affect measurement accuracy.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points on signal circuits.
- Separate analog signal cables from high-voltage power cables and high-current switching circuits.
- Confirm field device polarity and loop wiring before commissioning.
- Check HART communication availability after completing analog loop verification.
