Overview

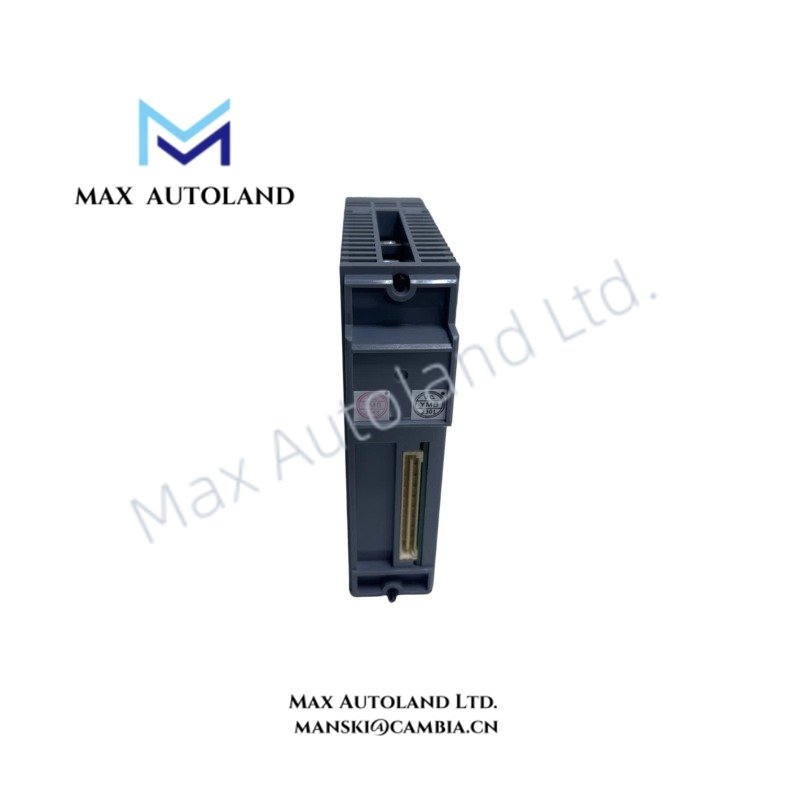

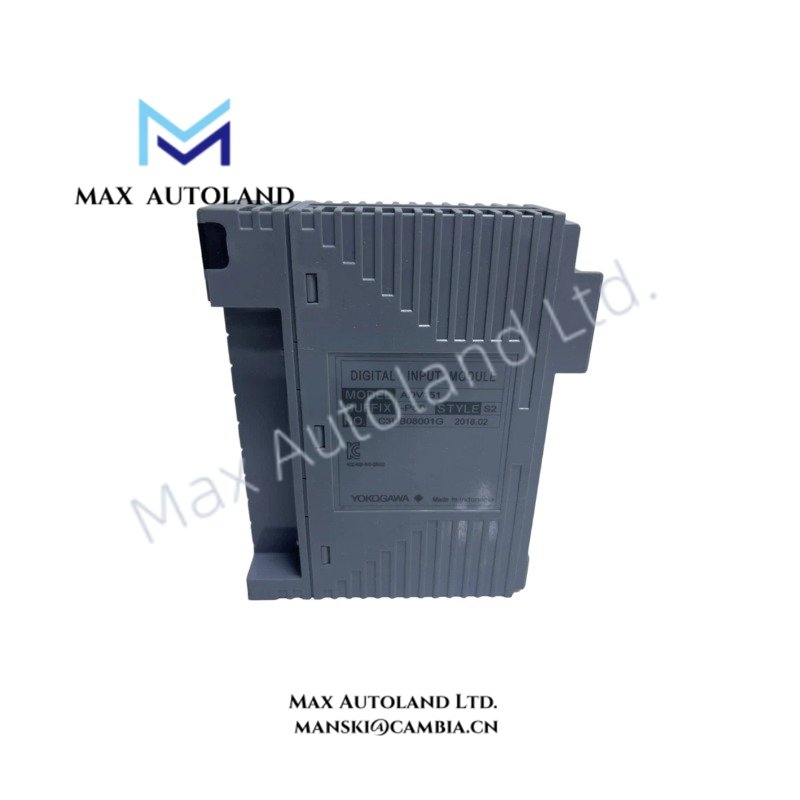

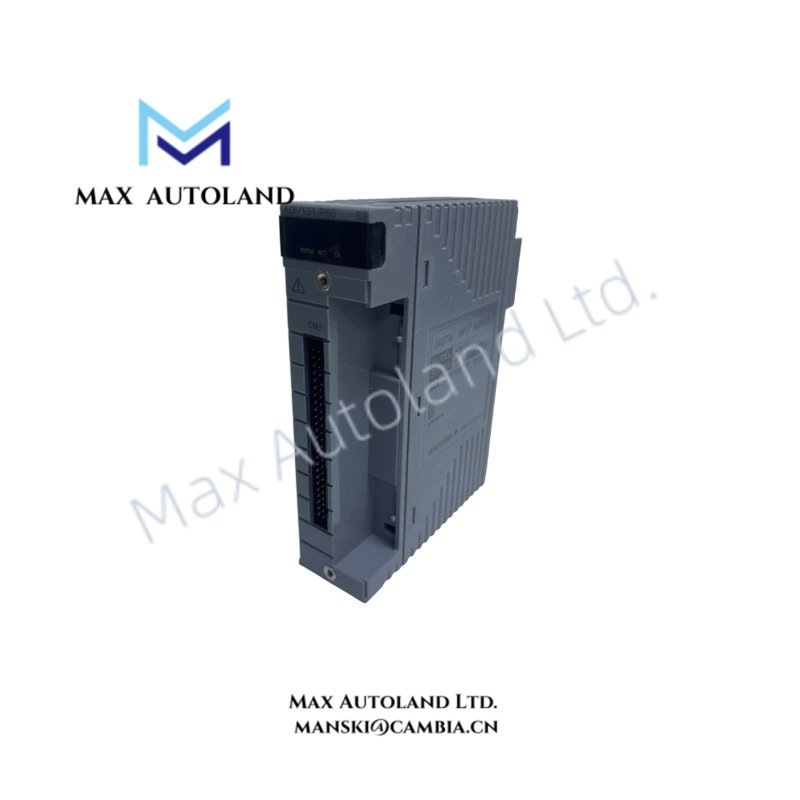

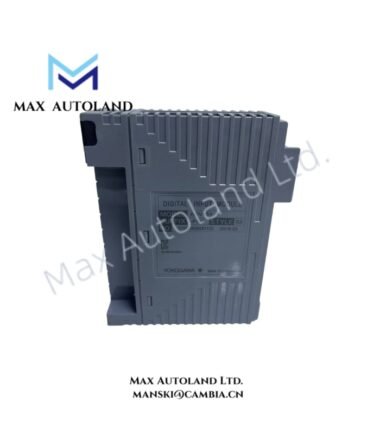

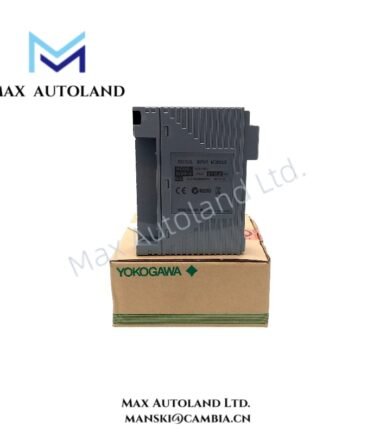

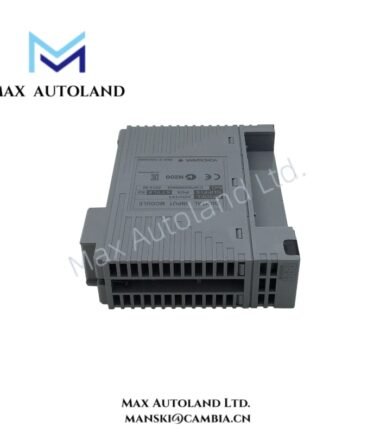

The Yokogawa ADV151-P60, also cataloged as the ADV151-P60 Digital Input Module, provides 24 VDC ON/OFF signal acquisition for FIO field input processing within the Yokogawa CENTUM VP system architecture. The module receives discrete field signals and transfers status data through ESB Bus Node Units or Field Control Units.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P60 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| Origin | Japan |
| Weight | 0.25 kg |
| Dimensions | 3.2 x 10.6 x 13 cm |
| Power Consumption | Maximum 500 mA at 5 VDC |
| Input Channels | 64 channels |
| Rated Input Voltage | 24 VDC |
| Input ON Voltage | 20 to 26.4 VDC |
| Input OFF Voltage | 5.0 VDC or less |
| Input Current | 2.5 mA +/-20 % per channel |
| Maximum Allowable Input Voltage | 30.0 VDC |
| Input Response Time | 8 ms or less |
| Minimum ON Detection Time | 20 ms |
| Maximum ON/OFF Cycle | 25 Hz |
| Between Input Signal and System Isolation | 2 kVAC for 1 minute |
| Between Commons Isolation | 500 VAC for 1 minute, common every 16 channels |
| Installation Compatibility | ANB10S, ANB10D, ANB11S, ANB11D, AFV30S, AFV30D, AFV40S, AFV40D |
Yokogawa DCS Signal Processing and Channel Isolation
The ADV151-P60 processes discrete field input signals through the Yokogawa FIO architecture and provides electrical separation between field circuits and system-side electronics. The module supports channel grouping with common isolation every 16 channels, while maintaining defined input voltage thresholds for status recognition.
In addition, the module integrates with CENTUM VP configurations through ESB Bus Node Units and Optical ESB Bus Node Units. The design supports dual redundant configurations, allowing paired input modules to maintain process signal acquisition capability during module-level faults.
For Yokogawa process I/O applications, the module follows DCS-oriented signal handling practices, including channel-to-channel isolation management and controlled field signal transmission. Therefore, it fits installations requiring stable discrete status monitoring and pulse input functions.
Frequently Asked Questions (FAQ)
Q: How many digital input channels does the Yokogawa ADV151-P60 provide?
A: The ADV151-P60 provides 64 digital input channels for 24 VDC discrete signal acquisition.
Q: Which Yokogawa systems support the ADV151-P60 installation?
A: The module installs in ESB Bus Node Units ANB10S, ANB10D, Optical ESB Bus Node Units ANB11S, ANB11D, and Field Control Units AFV30S, AFV30D, AFV40S, and AFV40D.
Q: What input signal conditions does the ADV151-P60 accept?
A: The module accepts 24 VDC input signals, with ON detection from 20 to 26.4 VDC and OFF detection at 5.0 VDC or less.
Field Installation Guidelines
- Install the ADV151-P60 according to the Yokogawa FIO hardware configuration requirements.
- Confirm the module slot position before connection to the ESB Bus Node Unit or Field Control Unit.
- Separate digital input wiring from high-voltage power cables to reduce electrical interference.
- Verify field device polarity before applying 24 VDC input signals.
- Connect cable shields according to the site grounding standard when shielded field wiring is applied.
- Check terminal assignments and channel mapping before system commissioning.
- Confirm input status indication after wiring verification and controller configuration.
