Overview

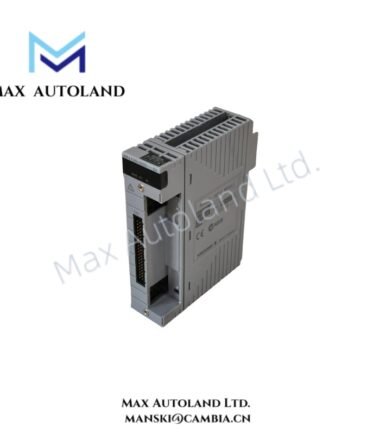

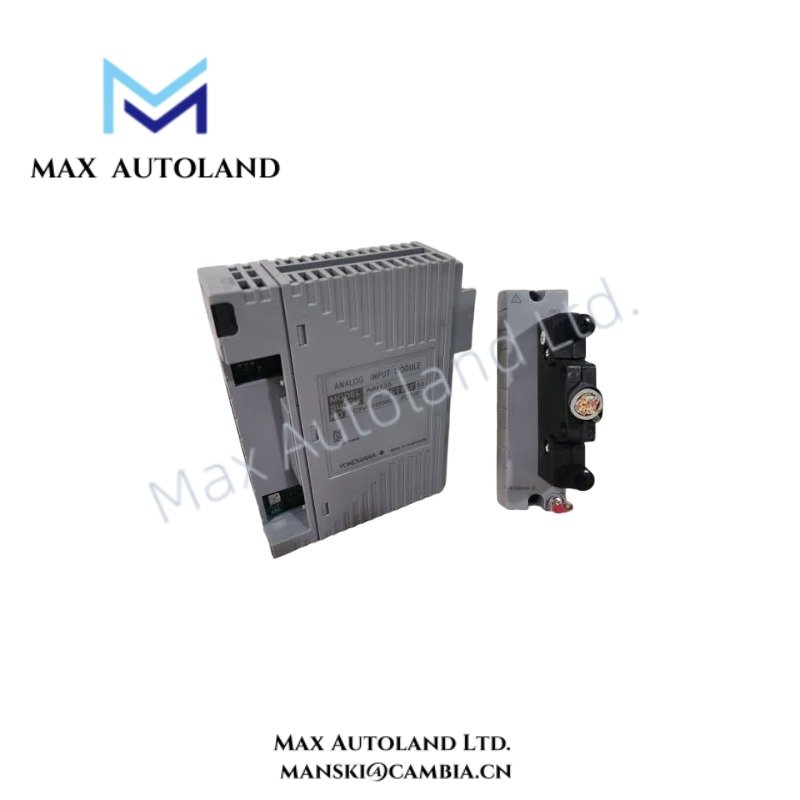

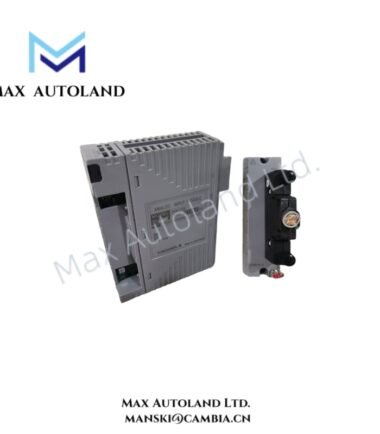

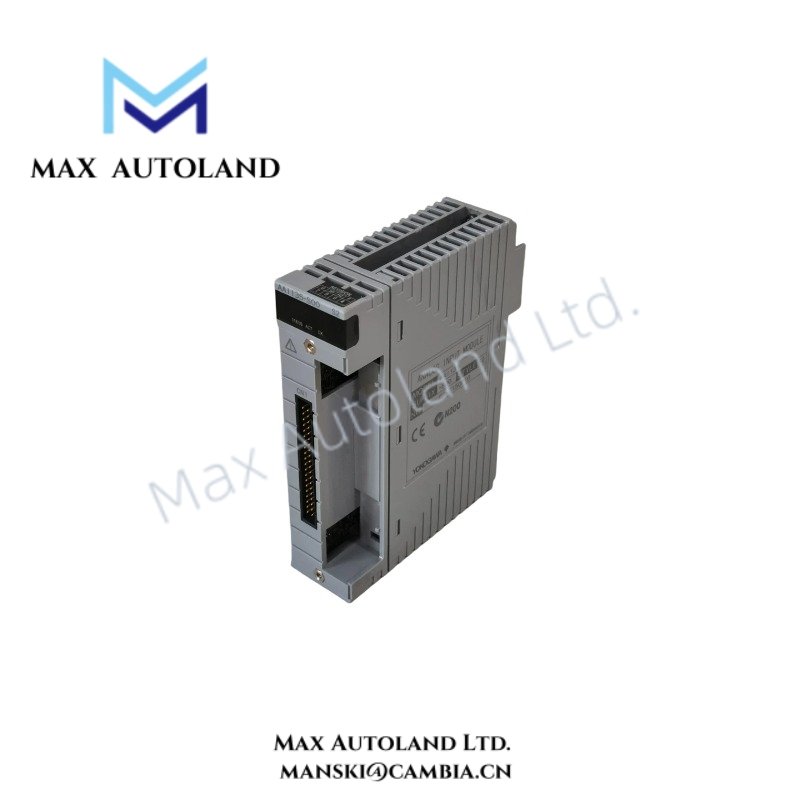

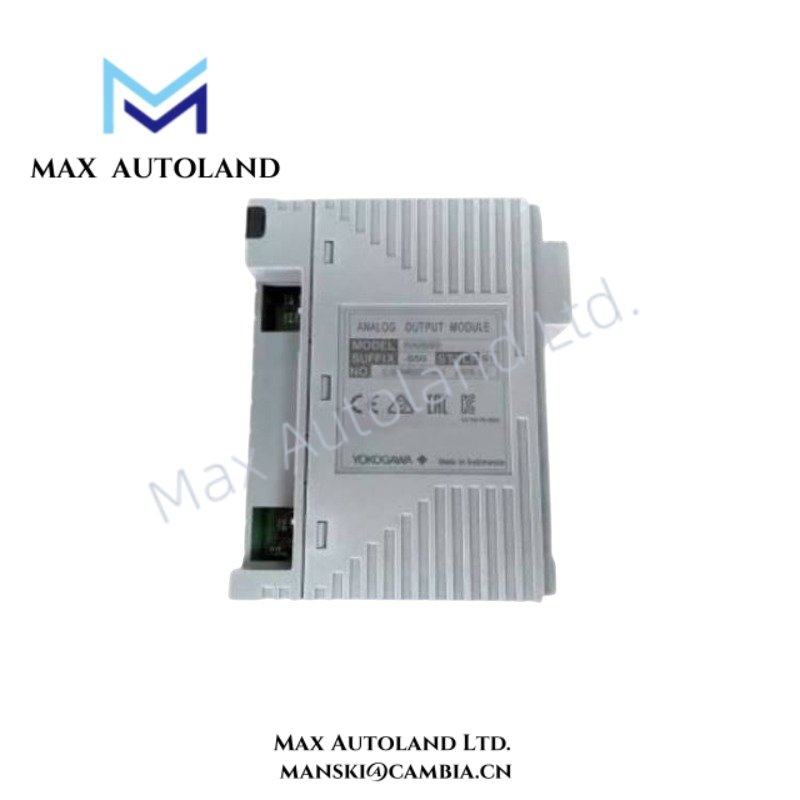

The Yokogawa AAI135-H53, also cataloged as the AAI135 Analog Input Module, operates as a dedicated hardware component for converting 4-20 mA field analog signals into internal control data within Yokogawa ESB bus node units and Field Control Units.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI135-H53 |
| Brand | Yokogawa |
| Origin | Japan |
| Module Type | Analog Input Module |
| Input Signal | 4-20 mA DC analog input |
| Number of Channels | 16 channels |
| Channel Isolation | Isolated analog input |
| HART Communication | Supported with built-in HART modem |
| Maximum HART Devices | 16 devices per module |
| Maximum HART Variables | 32 points per module |
| HART Multidrop Connection | Maximum 5 devices per channel |
| HART Variable Refresh Cycle | 1 second per device; 17 seconds per ESB bus connection at maximum device loading |
| Installation Compatibility | ESB bus node units ANB10S, ANB10D; Optical ESB bus node units ANB11S, ANB11D; FIO Field Control Units AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D |
4-20 mA HART Loop Communication and Channel Isolation
The AAI135-H53 integrates HART modem functions for direct communication with HART field devices connected to analog input channels. Therefore, the module can acquire both primary process input values and HART variable data through the same field wiring interface.
The module supports up to 16 HART devices and processes up to 32 HART variables per unit. Additionally, HART variables can be handled as normal process input data through terminal connections. The isolated channel design separates field signal circuits from internal control system data processing paths.
The module receives analog field signals, converts them into internal data formats, and transfers the processed values through Yokogawa ESB bus communication interfaces to the Field Control Station.
Frequently Asked Questions
Q: Does the AAI135-H53 support direct HART device communication?
A: Yes. The module contains integrated HART modem functions and communicates directly with connected HART field devices.
Q: How many HART devices can one AAI135-H53 module process?
A: The module supports a maximum of 16 HART devices and up to 32 HART variables per module.
Q: Can the AAI135-H53 be installed in redundant ESB bus configurations?
A: The module supports installation in Yokogawa ESB bus node units and Field Control Units. Specific redundancy behavior depends on the configured control system architecture.
Field Installation Guidelines
- Install the AAI135-H53 only in compatible Yokogawa ESB bus node units or FIO Field Control Units.
- Verify terminal assignments before connecting 4-20 mA field wiring.
- Use shielded instrumentation cables for analog signal connections in electrically noisy environments.
- Connect cable shields according to the plant grounding design to reduce electromagnetic interference.
- Separate analog signal wiring from high-voltage power cables and switching circuits.
- Confirm HART device addressing before enabling multidrop communication.
- Check field loop polarity and current signal range before system commissioning.
- Follow Yokogawa installation manuals for module insertion, backplane connection, and maintenance procedures.
