Overview

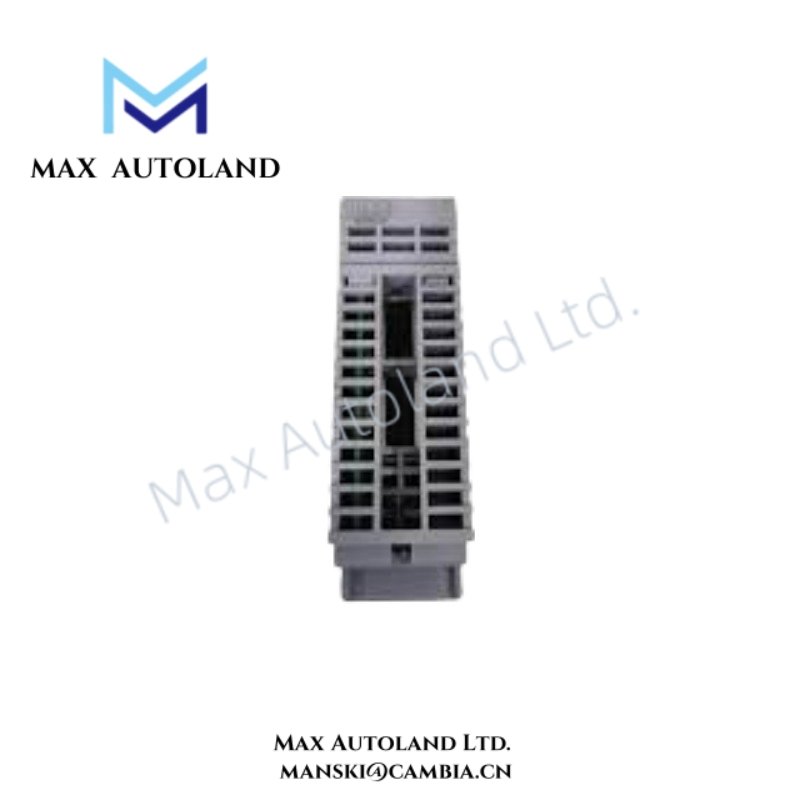

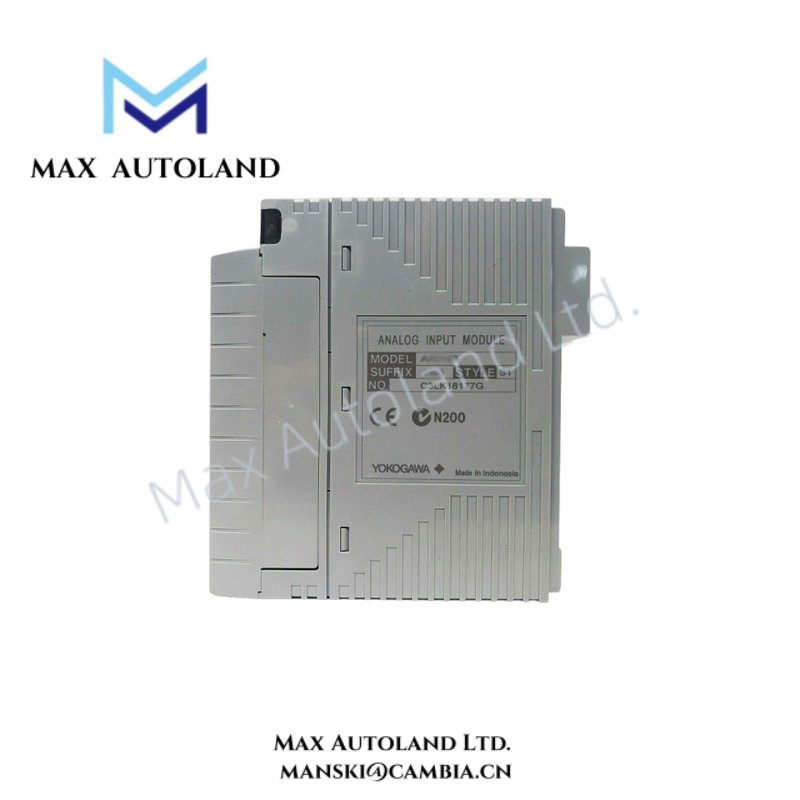

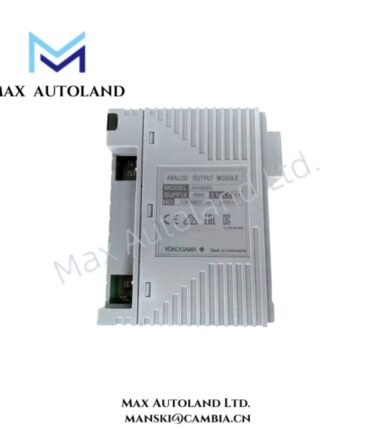

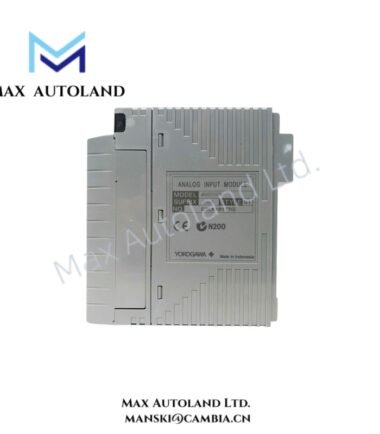

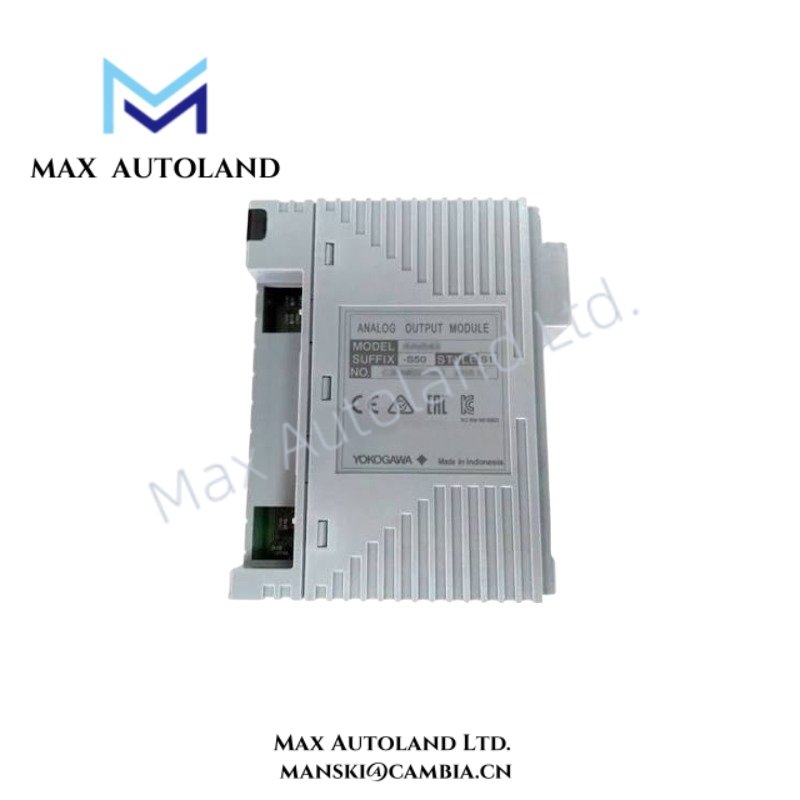

The Yokogawa AAI835-H53, also cataloged as the AAI835 Analog I/O Module, operates as a dedicated hardware component for converting 4-20 mA field analog signals and HART communication data within Yokogawa FIO and ESB bus node systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | Yokogawa AAI835-H53 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Analog Input Modules |
| Input Signal | 4-20 mA DC analog input |
| Channel Count | 16 channels |
| Isolation | Channel isolation supported |
| HART Communication | Integrated HART modem function |
| HART Devices | Maximum 16 devices per module |
| HART Variables | Maximum 32 points per module |
| HART Multidrop Connection | Maximum 5 devices per channel |
| HART Data Refresh Cycle | 1 second per device; 17 seconds per ESB bus connection with 16 devices |
| Installation System | ESB bus node units ANB10S, ANB10D; Optical ESB bus node units ANB11S, ANB11D; FIO field control units AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D |
| Communication Interface | ESB bus / Optical ESB bus |
4-20 mA HART Loop Communication and Channel Isolation
The Yokogawa AAI835-H53 processes standard 4-20 mA field current signals and converts them into internal control system data. Additionally, the integrated HART modem enables direct communication with HART field devices connected to each input channel.
The module supports up to 16 HART devices and handles up to 32 HART variables through the module interface. Furthermore, HART variables can be transferred as standard process input data through the %Z terminal connection for monitoring applications.
The AAI835-H53 provides channel-to-channel isolation for analog input processing. Therefore, the module separates field signal circuits and reduces electrical interference during analog measurement operations.
Frequently Asked Questions
Q: How many HART field devices can the AAI835-H53 support?
A: The AAI835-H53 supports a maximum of 16 HART devices per module. Each connected HART device can provide process variables through the module communication interface.
Q: Can the AAI835-H53 use HART variables as control system input data?
A: Yes. The module transfers HART variables as ordinary process input data through the %Z terminal connection. This function supports input monitoring only.
Q: Which Yokogawa systems accept the AAI835-H53 module?
A: The module installs in ESB bus node units ANB10S and ANB10D, Optical ESB bus node units ANB11S and ANB11D, and FIO field control units including AFV30, AFV40, and AFV10 series.
Field Installation Guidelines
- Install the AAI835-H53 only in compatible Yokogawa ESB bus node units or FIO field control units.
- Verify the module slot configuration before insertion to prevent incorrect hardware installation.
- Use shielded signal cables for 4-20 mA field wiring to reduce electromagnetic interference.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points on instrument signal circuits.
- Separate analog signal wiring from high-voltage power cables and switching circuits.
- Confirm HART device addressing before connecting multiple HART instruments on the same communication path.
- Check module status indicators after installation and verify correct communication with the Yokogawa control station.
