Overview

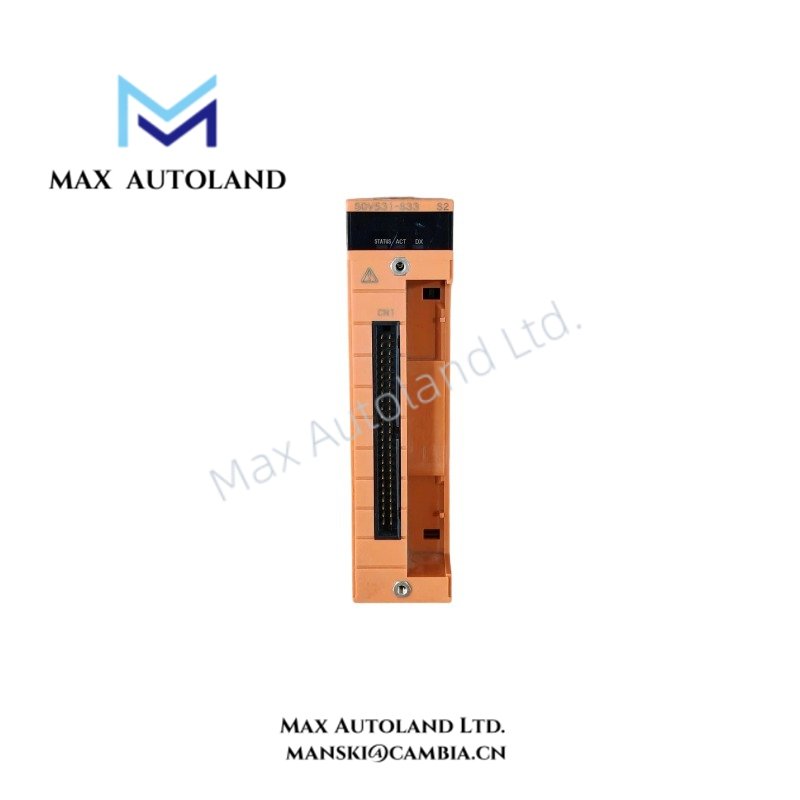

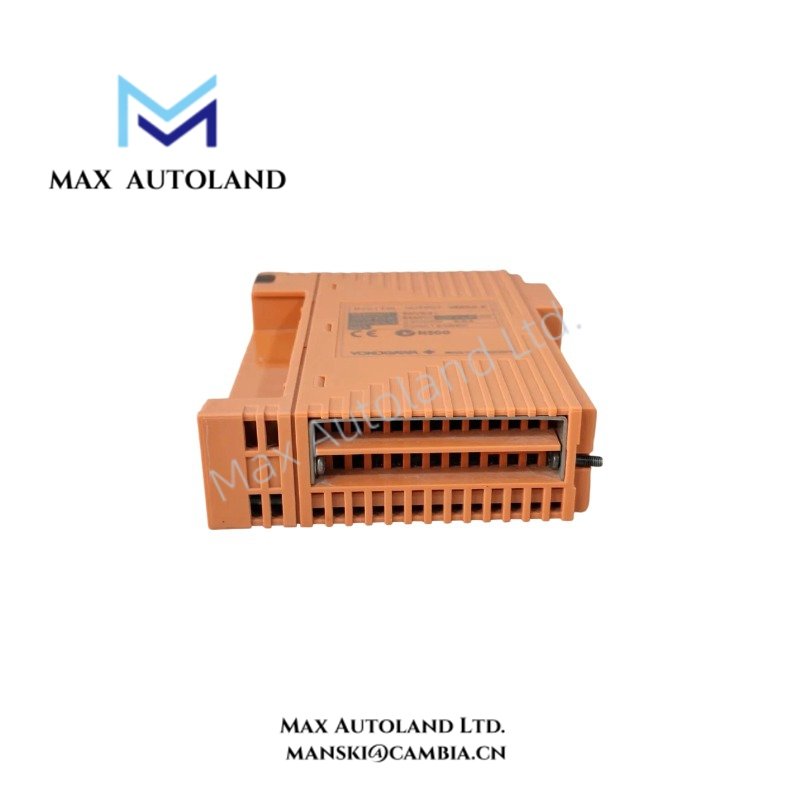

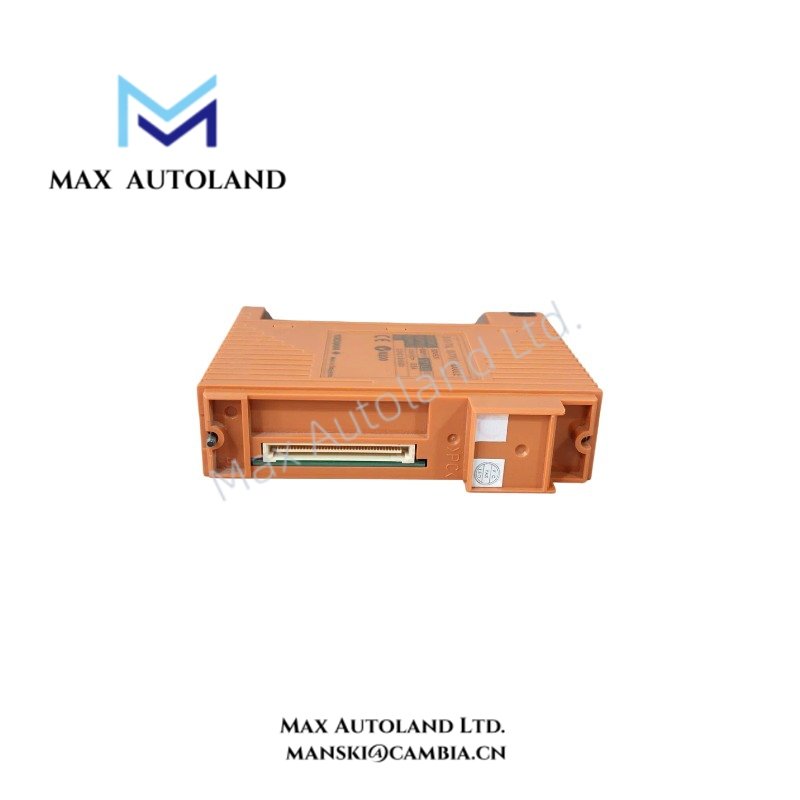

The Yokogawa SDV531-S13 S1, also cataloged as the SDV531-S13 Output Module, provides 8-channel current source digital output execution for Yokogawa ProSafe-RS safety control system platforms. The module delivers isolated 24 V DC output signals for field device actuation circuits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV531-S13 S1 |
| Base Model | SDV531-S13 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 20 x 11 x 7.6 cm |
| Operating Temp | Not specified |
| Power Consumption | External power supply: 24 V DC, 5 A minimum |
| Number of Outputs | 8 channels |
| Output Type | Current source |
| Output Voltage | 24 V DC |
| Module Isolation | Isolated output channels |
| Output Voltage Drop | 1 V maximum |
| Maximum Leak Current at Output Off Status | 1.6 mA |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 40 to 685 ohm |
| Output Response Time | 30 ms maximum |
Channel-to-Channel Isolation and DCS Output Interface
The SDV531-S13 S1 integrates isolated digital output channels for Yokogawa process control architectures. The module provides 24 V DC current source outputs and controls external field loads through defined electrical interfaces. Furthermore, the isolated channel design separates output circuits to reduce interference between connected devices.
The module supports direct connection to actuator circuits requiring current source output operation. Therefore, engineers can configure field wiring based on load resistance requirements from 40 to 685 ohm. The output circuit maintains a maximum response time of 30 ms for digital command execution.
Frequently Asked Questions
Q: What output signal type does the SDV531-S13 S1 provide?
A: The SDV531-S13 S1 provides 24 V DC current source digital outputs with 8 isolated output channels.
Q: What external power supply specification is required for the module?
A: The module requires an external 24 V DC power supply with a minimum rating of 5 A.
Q: What load conditions are supported by the output channels?
A: Each output channel supports load resistance from 40 to 685 ohm with a minimum load current of 35 mA.
Field Installation Guidelines
- Install the SDV531-S13 S1 module according to Yokogawa system cabinet installation procedures.
- Verify the 24 V DC field power supply polarity before connecting output terminals.
- Separate output wiring from high-voltage power cables to reduce electrical noise coupling.
- Use appropriate grounding methods for cabinet shields and field cable screens.
- Confirm actuator load resistance values before commissioning the output channels.
- Inspect terminal connections and wiring insulation before applying field power.
