Overview
The Yokogawa ADV144-S13, also cataloged as the ADV144-S13 Analog Input Module, operates as a dedicated hardware component for DC voltage signal acquisition within Yokogawa CENTUM series Distributed Control System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV144-S13 |
| Brand | Yokogawa Electric Corporation |
| Origin | Japan |
| Product Type | Analog Input Module |
| Input Channels | 16 isolated analog input channels |
| Input Signal Range | -10 to +10 V DC |
| Signal Type | DC voltage input |
| Channel Isolation | Channel-to-channel and channel-to-system isolation |
| Isolation Voltage | 500 V AC |
| Terminal Connection | Pressure clamp terminals / dedicated terminal boards through KS cable adapters |

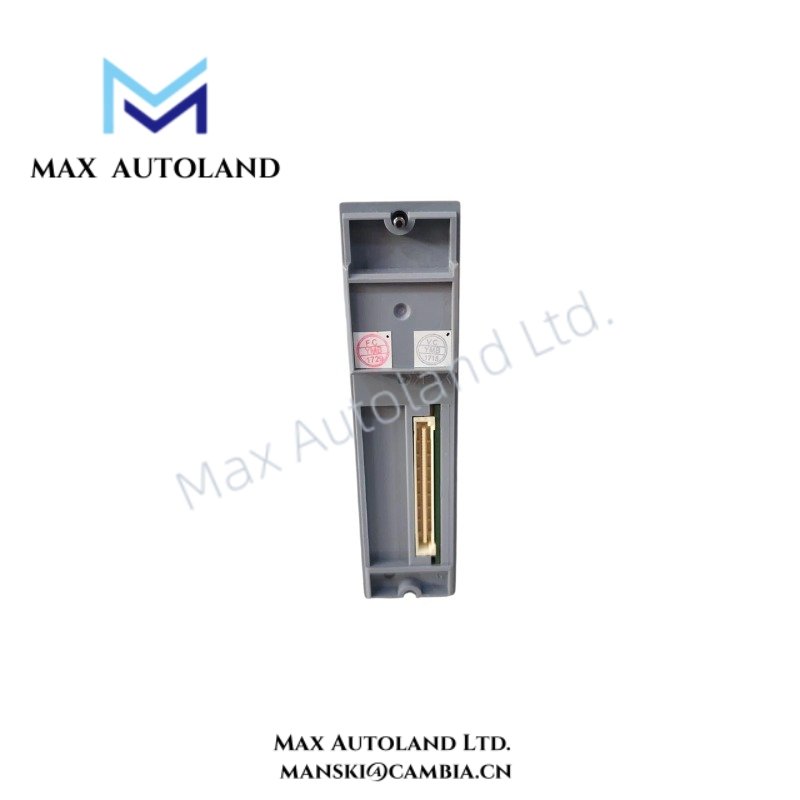

| MIL Connector | 40-pin interface with CBSE cable disconnection detection terminals |
| Cable Size Without Sleeve | 0.5 to 2 mm2 (AWG 20 to 14) |
| Cable Size With Sleeve | 0.5 to 1.5 mm2 |
| Configuration Support | Single or dual-redundant configuration using ATA4D terminal block |
DCS Process Signal Isolation and Interface Characteristics
The Yokogawa ADV144-S13 performs analog voltage signal conversion for CENTUM series DCS I/O architectures. The module uses isolated input channels to separate field signal circuits from system-side electronics. Therefore, each input channel maintains electrical separation against ground potential differences and external interference.
Additionally, the module supports Yokogawa terminal accessories including ATA4S, ATA4D, and ATK4A adapters through dedicated MIL cable interfaces. The CBSE terminal function monitors cable connection status and detects unintended cable disconnection conditions during operation.
The module does not provide HART communication or FOUNDATION Fieldbus connectivity because it processes DC voltage input signals rather than digital communication loops. Instead, it focuses on isolated analog acquisition within the DCS I/O subsystem.
Frequently Asked Questions
Q: Does the ADV144-S13 support redundant operation?
A: Yes. The ADV144-S13 supports single and dual-redundant configurations when installed with the compatible ATA4D terminal block arrangement.
Q: What type of input signal does the ADV144-S13 accept?
A: The module accepts DC voltage signals within the -10 to +10 V DC range through 16 isolated input channels.
Q: Does the module detect field cable disconnection?
A: Yes. The 40-pin MIL connector interface includes CBSE terminals that provide cable disconnection detection functions.
Field Installation Guidelines
- Install the ADV144-S13 in the designated Yokogawa CENTUM system I/O rack position according to the system hardware configuration.
- Verify terminal board compatibility before connecting ATA4S, ATA4D, or ATK4A interface components.
- Use shielded field wiring where required by the installation environment and connect cable shields according to plant grounding standards.
- Separate analog input wiring from high-current power cables and switching circuits to reduce electromagnetic interference.
- Confirm cable conductor size compatibility before terminating pressure clamp connections.
- Check input polarity and signal range before applying field voltage signals.
- Verify channel isolation requirements when connecting devices with different ground reference potentials.
