Overview

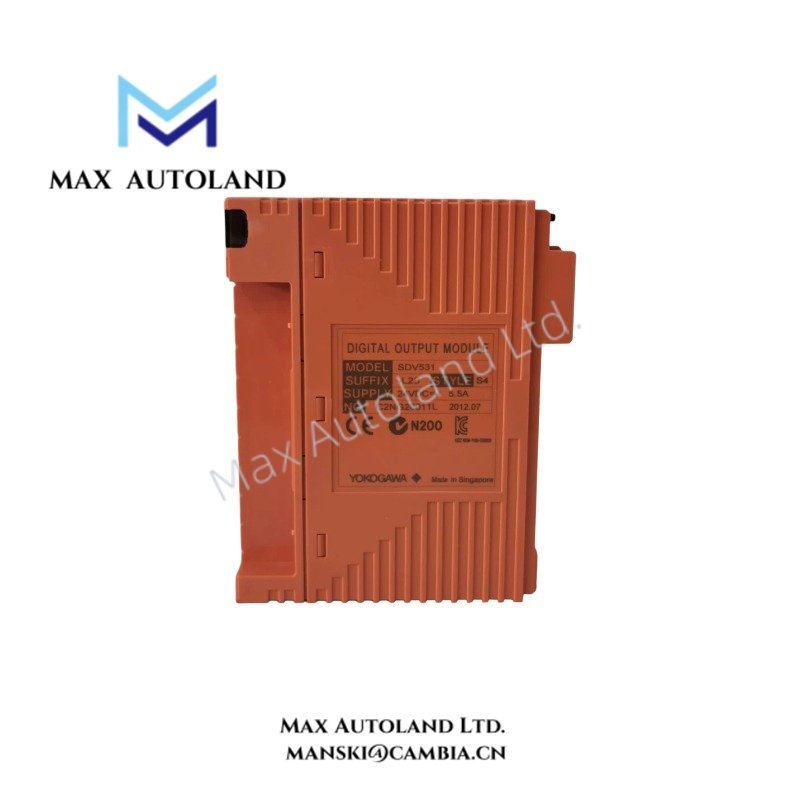

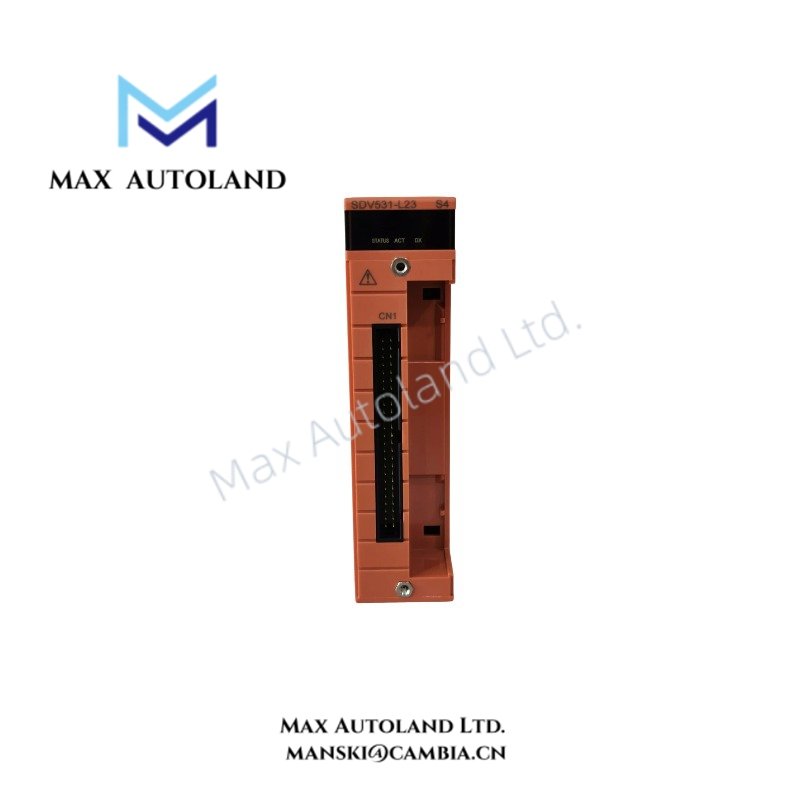

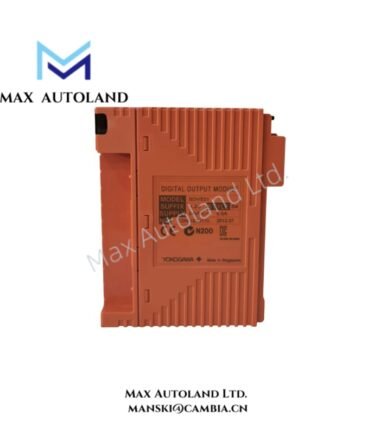

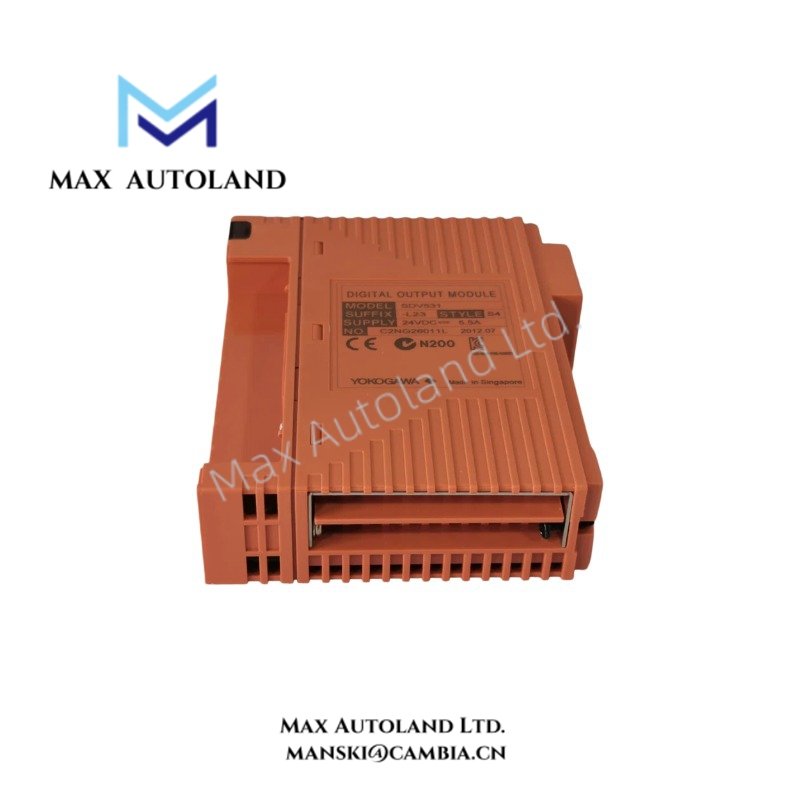

The Yokogawa SDV531-LFC, also cataloged as the SDV531-LFC Digital Output Module, provides direct electrical execution for 24 V DC current source output control within Yokogawa ProSafe-RS and CENTUM system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV531-LFC |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| System Compatibility | Yokogawa ProSafe-RS / CENTUM automation systems |
| Output Channels | 8 channels, module-isolated |
| Output Type | 24 V DC current source output |
| Maximum Load Current | 0.6 A per channel, 4.8 A total |
| Minimum Load Current | 35 mA |
| Output Voltage Drop | Max. 1 V |
| Leakage Current (Output OFF) | Max. 1.6 mA |
| External Power Supply | 24 V DC (+20% / -10%), 5 A minimum |
| Response Time | Max. 30 ms |
| Operating Temp | Typically -20 deg C to 70 deg C |
| Power Consumption | Determined by output load and external 24 V DC supply |
| Corrosion Resistance | ISA Standard G3 compliant |
| Installation Configuration | High-density mounting support |
| Explosion Protection | Supported with F suffix configuration |
| Origin | Japan |
Yokogawa Process I/O Signal Integrity
The SDV531-LFC uses isolated digital output channels to execute field device switching operations through 24 V DC current source signals. Therefore, each channel maintains electrical separation between output paths to reduce interference during discrete control operations.
For Yokogawa process control architectures, the module design supports channel-to-channel isolation requirements and integrates with DCS I/O structures where discrete outputs connect to actuators, solenoid valves, and relay interfaces. Additionally, the module can be applied in systems requiring stable 24 V DC loop control and defined output response timing.
Frequently Asked Questions
Q: What type of field signals does the SDV531-LFC generate?
A: The SDV531-LFC generates 24 V DC current source digital output signals through 8 isolated output channels for discrete field control.
Q: Does the module require an external power supply?
A: Yes. The module requires an external 24 V DC power supply for output operation and field load energization.
Q: Can the SDV531-LFC be installed in corrosion-sensitive environments?
A: Yes. The -LFC configuration supports ISA Standard G3 corrosion resistance requirements for industrial installation conditions.
Field Installation Guidelines
- Install the module according to the Yokogawa system hardware installation manual and approved I/O configuration procedures.
- Verify the 24 V DC field power polarity before connecting output wiring.
- Separate digital output wiring from high-voltage power cables to reduce electrical noise coupling.
- Connect cable shields according to the system grounding design and plant electrical standards.
- Confirm actuator coil ratings and relay interface requirements before applying output loads.
- Check terminal assignments and channel configuration parameters during commissioning.
- Verify output switching operation through system diagnostics before placing the control loop into service.
