Overview

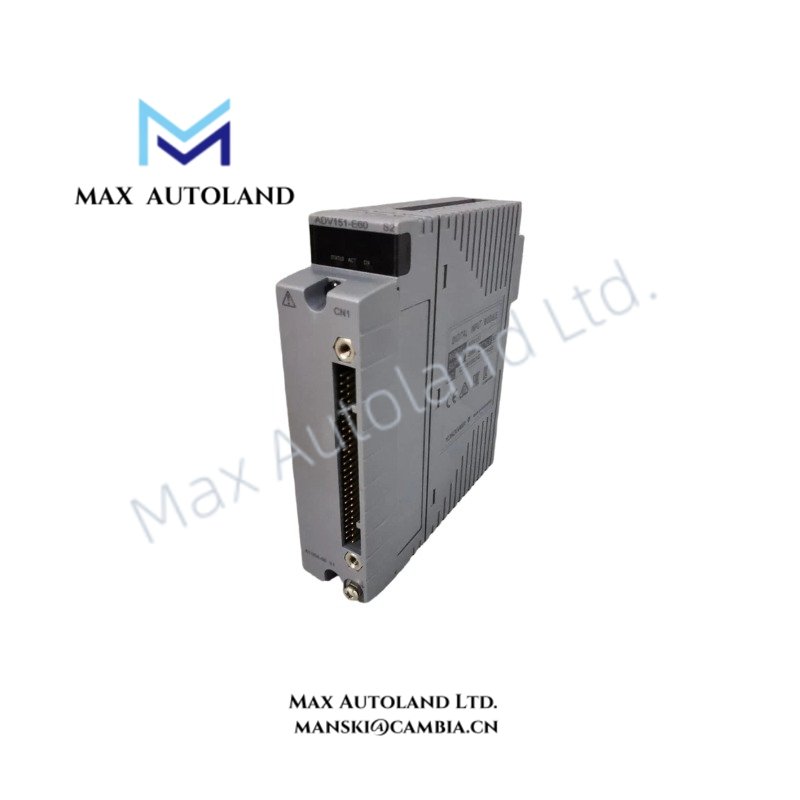

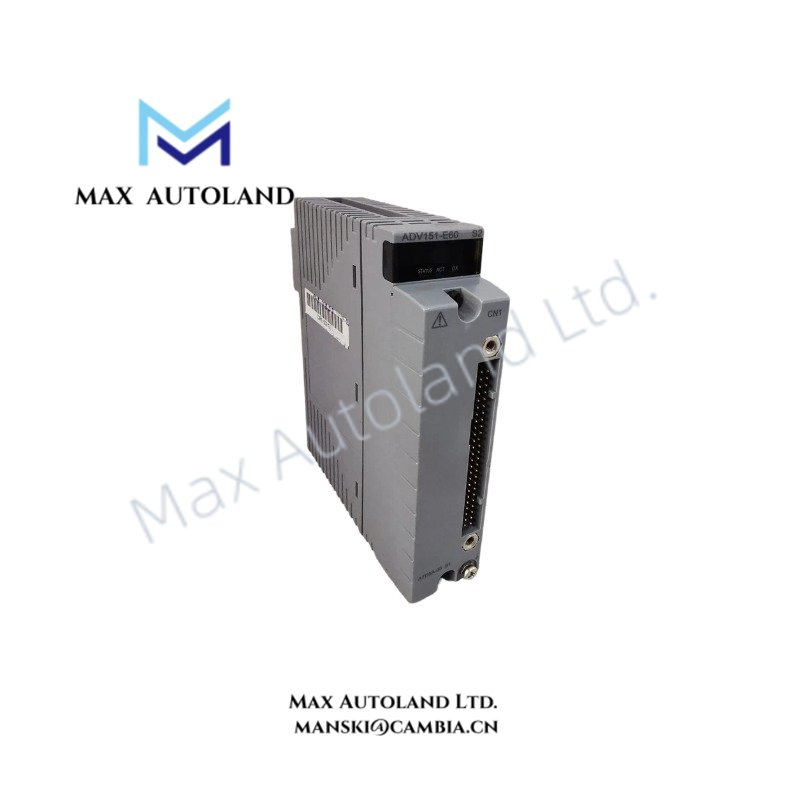

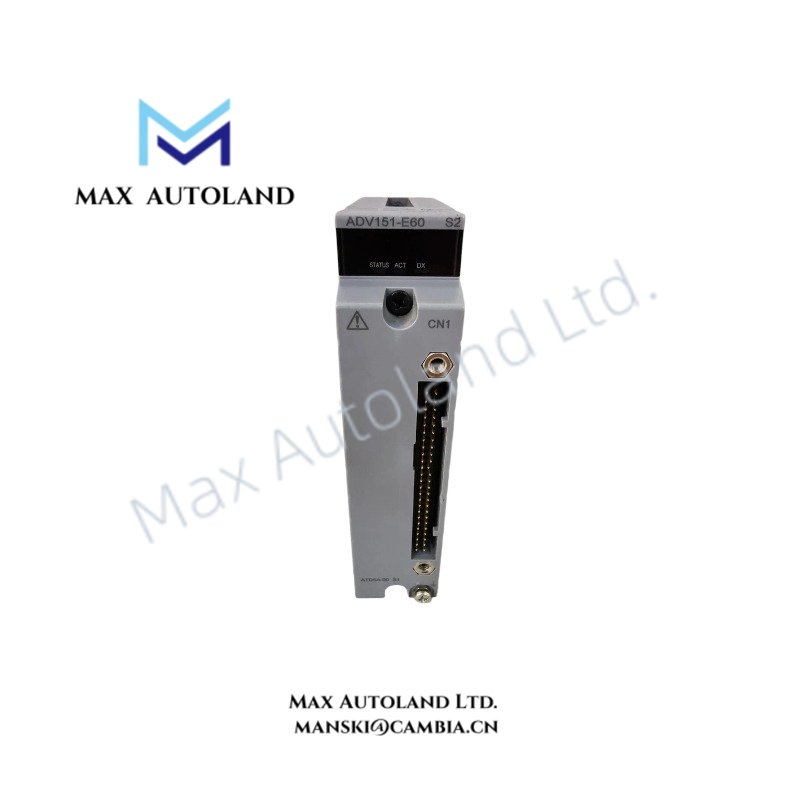

Configured for digital status acquisition and channel-level function assignment in the CENTUM VP FIO system, the Yokogawa ADV151-E60 (ADV151-E60 Digital Input Module) provides direct electrical input processing within ESB Bus Node Units and Field Control Units.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-E60 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| System Compatibility | CENTUM VP FIO system |
| Installation Units | ESB Bus Node Unit ANB10S, ANB10D; Optical ESB Bus Node Unit ANB11S, ANB11D; Field Control Unit AFV30S, AFV30D, AFV40S, AFV40D |
| Input Function | Digital signal input with channel-by-channel function assignment |
| Point Modes | SI status input, PB pushbutton input, PW pulse width output, TP time-proportioning ON/OFF output, status output |
| Channel Assignment | Function allocation selectable per channel |
| Terminal Assignment | Supports contiguous terminal allocation for PW and TP functions |
| Origin | Japan |
Yokogawa DCS Digital I/O Signal Processing
The ADV151-E60 is designed for digital signal handling inside Yokogawa CENTUM VP Field Control Units. The module receives discrete field signals and assigns channel functions according to configured point modes. Therefore, each terminal group can execute different digital processing functions based on system configuration.
The module supports SI status input and PB pushbutton input functions. In addition, PW pulse width output and TP time-proportioning ON/OFF output functions can be assigned according to terminal allocation requirements.
For Yokogawa process control applications, channel-to-channel isolation design and structured I/O assignment support stable signal separation between field wiring and controller processing. Furthermore, the module architecture follows CENTUM VP FIO communication requirements for ESB Bus Node integration.
Frequently Asked Questions
Q: Which Yokogawa hardware platforms support the ADV151-E60 module?
A: The ADV151-E60 installs in ANB10S, ANB10D ESB Bus Node Units, ANB11S, ANB11D Optical ESB Bus Node Units, and AFV30S, AFV30D, AFV40S, AFV40D Field Control Units.
Q: Can the ADV151-E60 assign different functions to individual channels?
A: Yes. The module supports channel-by-channel function assignment using configured point modes, including status input, pushbutton input, pulse width output, and time-proportioning ON/OFF output.
Q: How are terminal assignments handled for PW and TP functions?
A: PW and TP functions use defined terminal grouping. For example, PW output uses two contiguous terminal numbers, while TP output uses two outputs with two contiguous terminal numbers.
Field Installation Guidelines
Install the ADV151-E60 only in compatible Yokogawa ESB Bus Node Units or Field Control Units specified for the CENTUM VP FIO architecture.
Verify the module position before insertion and confirm that the backplane connector is correctly aligned. Field wiring should maintain separation between digital signal cables and high-voltage power cables to reduce electrical interference.
Use appropriate shielding and grounding practices according to the plant wiring standard. Confirm terminal assignments before commissioning because PW and TP functions depend on configured terminal grouping.
Check the module status through the Yokogawa engineering environment after installation. Validate each assigned channel function with field simulation signals before placing the control loop into operation.
