Overview

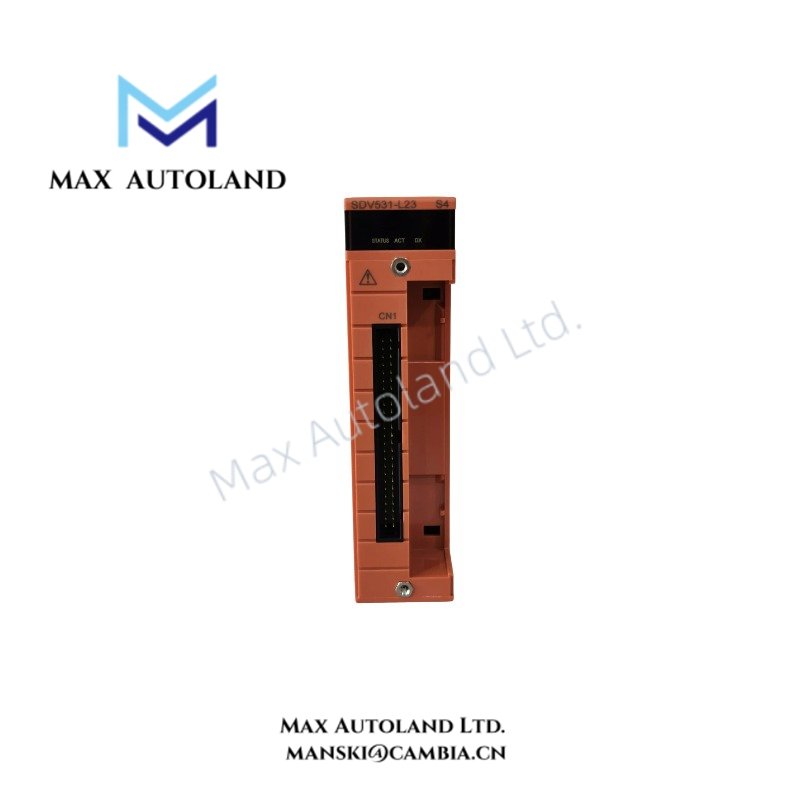

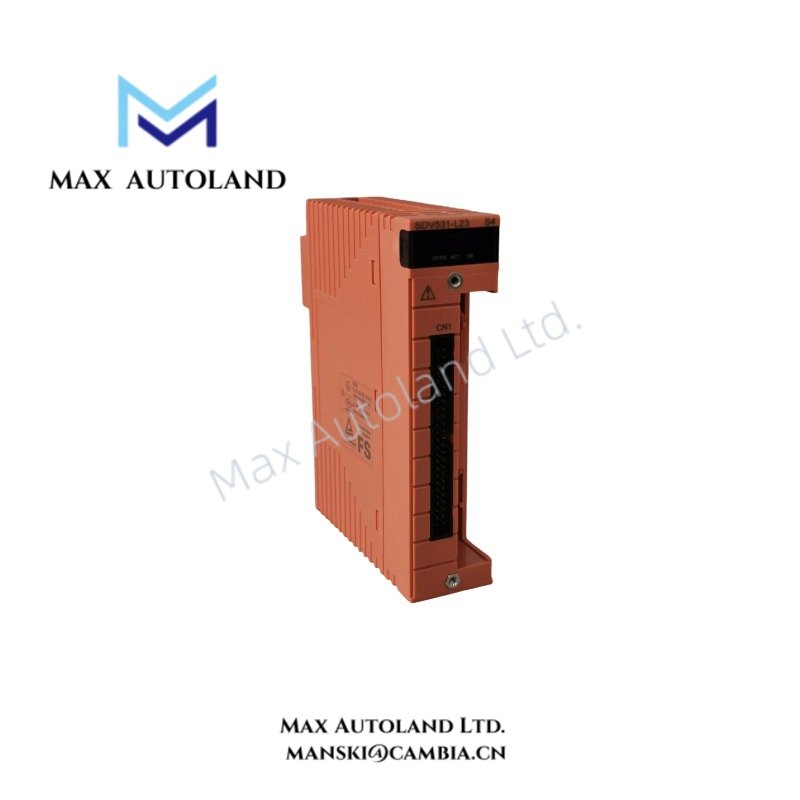

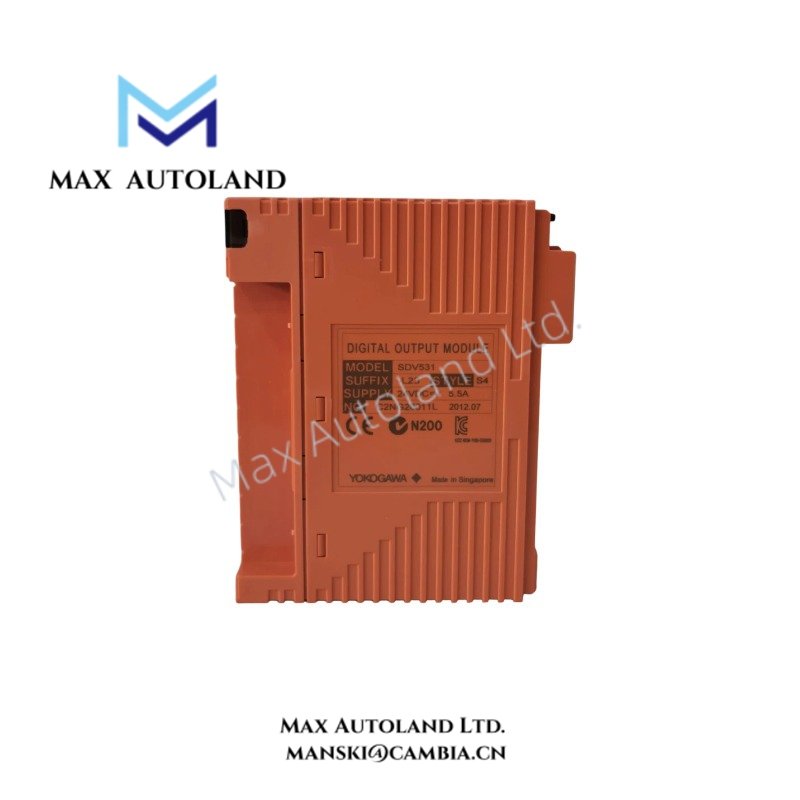

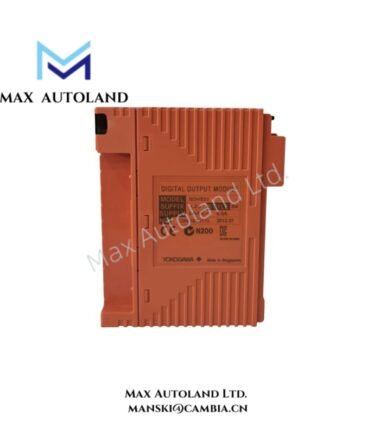

Configured for current source signal execution in the ProSafe-RS safety control system, the Yokogawa SDV531-L23 (SDV531-L23 Output Module) provides direct electrical output control through isolated 8-channel interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV531-L23 |
| Brand | Yokogawa |
| Product Type | Output Module |
| Origin | Japan |
| Weight | 0.25 kg |
| Dimensions | 16 x 13 x 5.3 cm estimated shipping size |
| Output Channels | 8-channel, module isolation |
| Output Voltage | 24 VDC |
| Output Format | Current source |
| Output Voltage Drop | 1 V maximum |
| External Power Supply Rating | 24 VDC, 5 A minimum |
| External Power Supply Range | 24 VDC +20% / -10% |
| Maximum Load Current | 0.6 A per output line |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 40 to 685 ohm |
| Output Response Time | 30 ms maximum |
Channel Isolation and DCS Output Interface Characteristics
The SDV531-L23 provides isolated output channels for discrete current source applications within Yokogawa control architectures. Each channel receives external 24 VDC power and controls field-side loads according to configured output states.
Furthermore, the module maintains electrical separation between output channels and the internal system interface. The current source design supports connection to external actuators and field devices requiring controlled 24 VDC output signals.
For Yokogawa process control systems, channel-to-channel isolation helps reduce interference between field circuits. The module design also supports stable signal transmission for distributed I/O configurations where output accuracy and electrical separation are required.
Frequently Asked Questions
Q: What output signal type does the Yokogawa SDV531-L23 provide?
A: The SDV531-L23 provides 8-channel current source outputs with a 24 VDC output supply interface.
Q: What is the maximum load current supported by each output channel?
A: Each output line supports a maximum load current of 0.6 A, with a minimum load current requirement of 35 mA.
Q: Does the SDV531-L23 require an external power supply?
A: Yes. The module requires an external 24 VDC power supply rated at 5 A minimum for output operation.
Field Installation Guidelines
Install the SDV531-L23 in the designated Yokogawa I/O mounting location according to system configuration requirements.
Verify that the external 24 VDC supply wiring matches the module power specifications before energizing the circuit. Use appropriate cable routing methods to separate output wiring from high-voltage or high-noise conductors.
Connect field devices according to the specified current source output configuration. Ensure terminal connections maintain correct polarity and secure mechanical fastening.
For industrial installations, apply proper grounding practices and confirm that cable shields follow the control system grounding design. Inspect wiring insulation and terminal conditions during commissioning and maintenance procedures.
