Overview

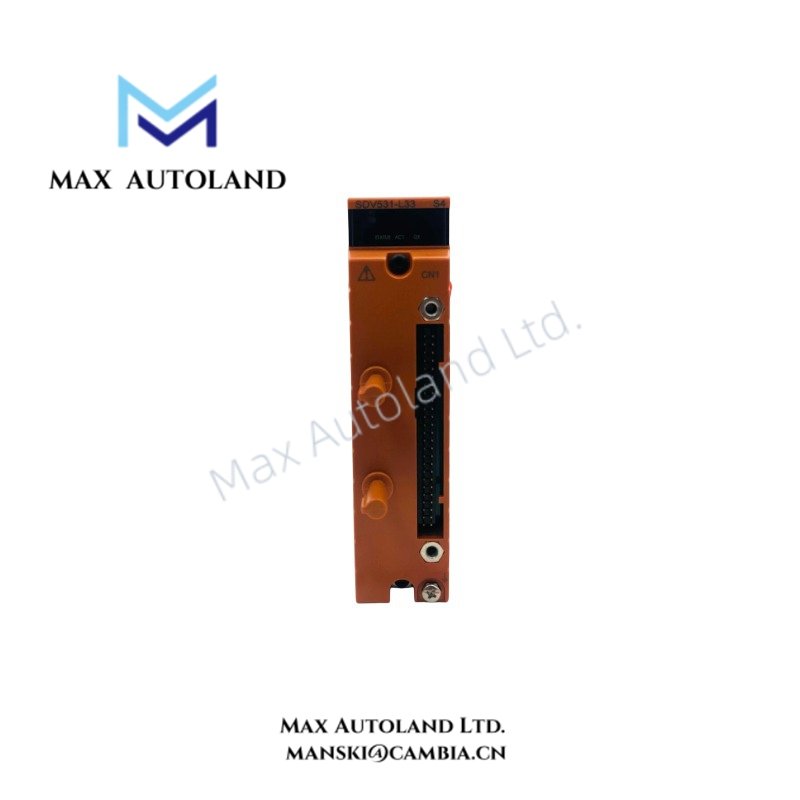

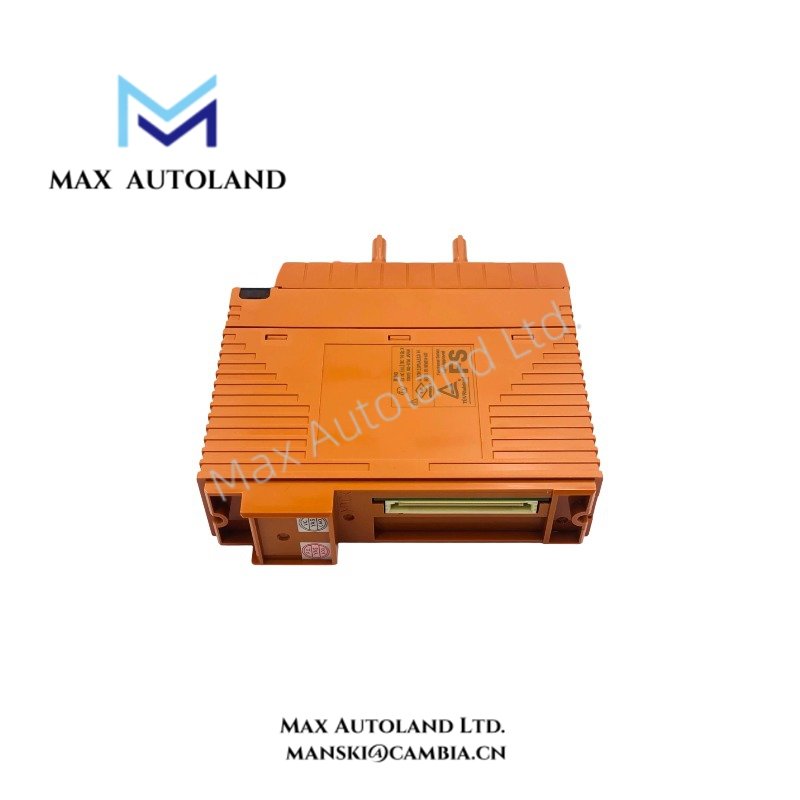

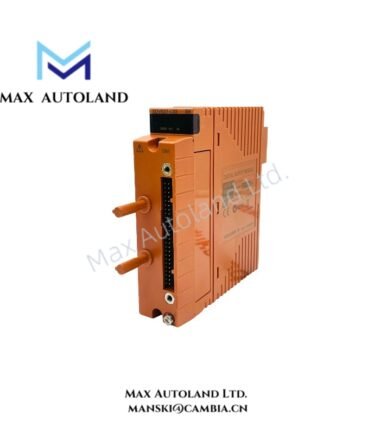

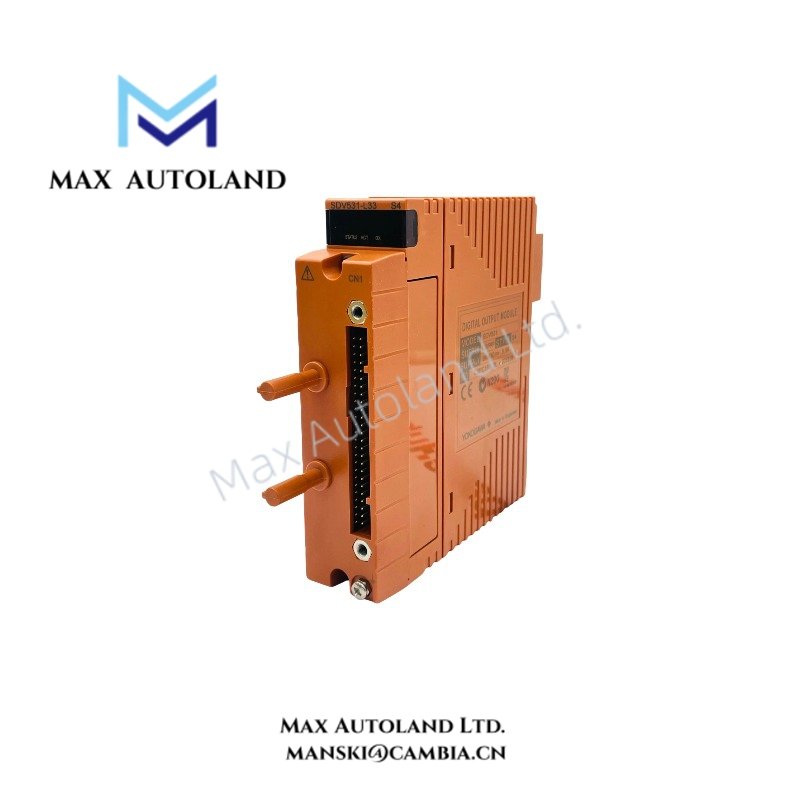

Configured for current source digital signal execution in Yokogawa ProSafe-RS safety control systems, the Yokogawa SDV531-L33 (SDV531-L33 Digital Output Module) provides direct physical output switching for 24 V DC field devices through isolated 8-channel output circuits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV531-L33 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 3.2 cm x 13.3 cm x 15.2 cm |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
| Output Channels | 8-channel, module isolation |
| Output Voltage | 24 V DC |
| Output Format | Current source |
| Output Voltage Drop | 1 V maximum |
| External Power Supply Rating | 24 V DC, 5 A minimum |
| Maximum Load Current | 0.6 A per output line, 4.8 A total output lines |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 40 to 685 ohm |
| Output Response Time | 30 ms maximum |
| Withstand Voltage | 2 kV AC between output signal lines and system for 1 minute, 8-point output lines collectively connected |
| External Connection | Pressure clamp terminal, MIL cable, dedicated signal cable AKB331 / AKB651 |
Yokogawa Process Control Signal Isolation and Output Characteristics
The SDV531-L33 applies channel isolation technology for discrete output signal separation within Yokogawa safety control architectures. The module provides 8 isolated current source outputs with 24 V DC field power handling capability.
Additionally, Yokogawa digital I/O modules support controlled field device activation through defined output current limits and response characteristics. The SDV531-L33 uses a current source output structure, allowing connection to compatible external loads within the specified resistance range.
For Yokogawa control systems, channel-to-channel isolation helps reduce signal interference between field circuits. Moreover, proper grounding and shield termination practices maintain stable digital output transmission in industrial environments.
Frequently Asked Questions
Q: What output configuration does the Yokogawa SDV531-L33 provide?
A: The SDV531-L33 provides 8-channel isolated digital outputs with a 24 V DC current source output format.
Q: What external power supply rating is required for the output circuits?
A: The module requires an external 24 V DC power supply rated at 5 A minimum.
Q: What type of field connection does the SDV531-L33 support?
A: The module supports pressure clamp terminals, MIL cable connections, and dedicated signal cables including AKB331 and AKB651.
Field Installation Guidelines
- Install the SDV531-L33 according to the Yokogawa ProSafe-RS hardware installation requirements.
- Verify that the module terminal wiring matches the designated output channel assignments before energizing field circuits.
- Use appropriate cable separation between output signal wiring and high-voltage power cables to reduce electrical interference.
- Connect cable shields according to the system grounding specification to maintain signal integrity.
- Confirm external 24 V DC supply polarity before connecting field loads.
- Check output load resistance values before commissioning to ensure operation within the specified range.
