Overview

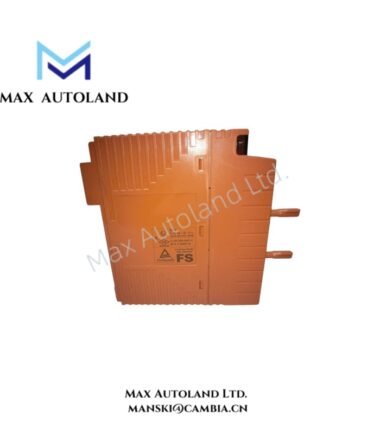

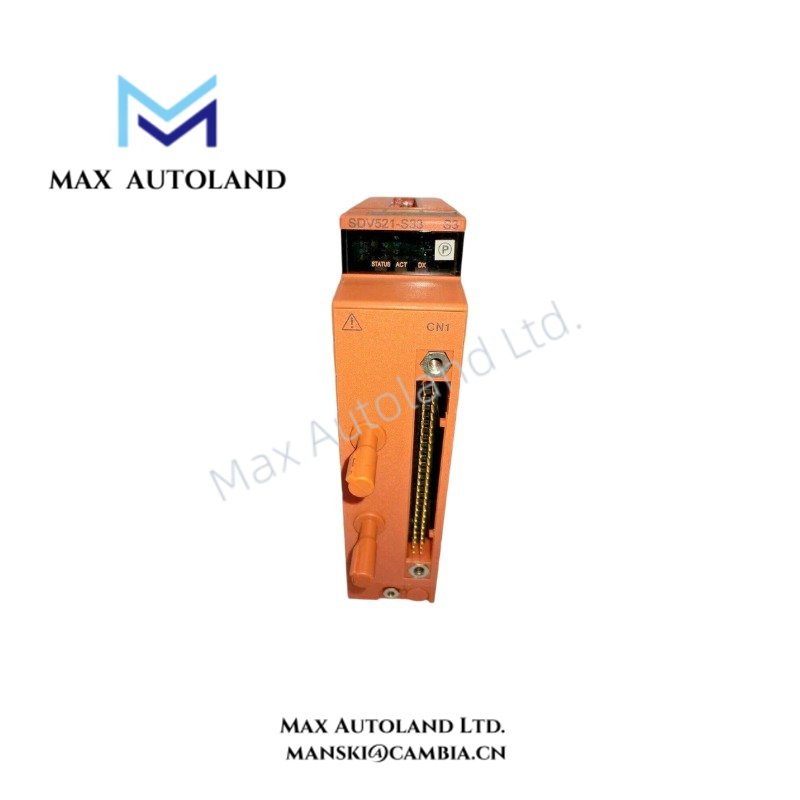

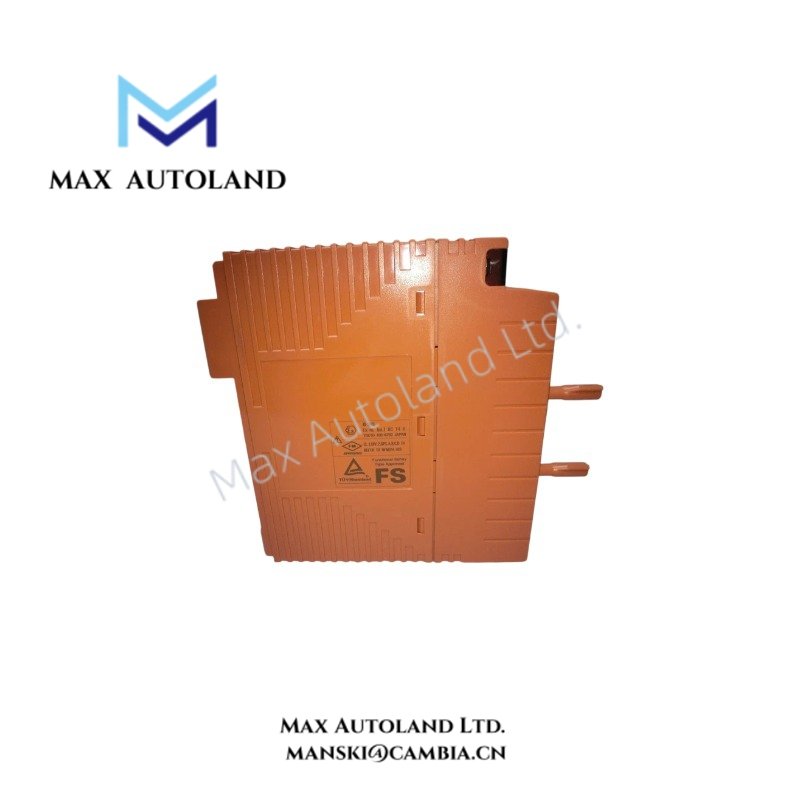

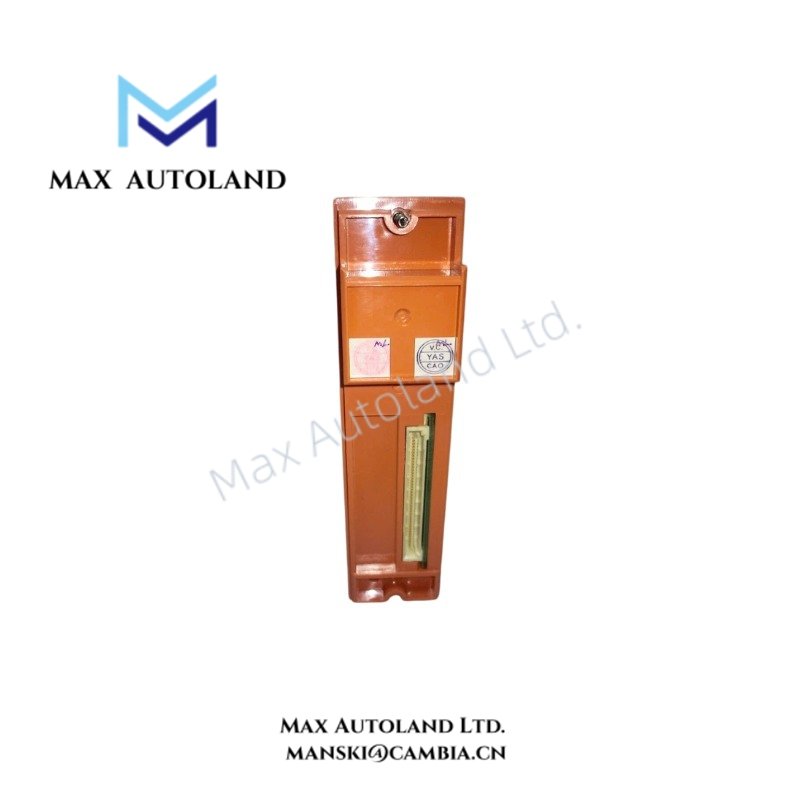

Yokogawa SDV521-S33 Digital Output Unit
The Yokogawa SDV521-S33, also cataloged as the SDV521-S33 Digital Output Unit, provides current source output execution for 24 V DC field devices within the Yokogawa ProSafe-RS safety control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV521-S33 |
| Brand | Yokogawa |
| Product Type | Digital Output Unit |
| System Platform | Yokogawa ProSafe-RS |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 20 x 11 x 7.6 cm |
| Number of Outputs | 4 channels, module isolation |
| Output Voltage | 24 V DC |
| Output Voltage Drop | 1 V maximum |
| External Power Supply Rating | 24 V DC, 10 A minimum |
| Output Format | Current source |
| Maximum Load Current | 2 A per output line, 8 A total output lines |
| Minimum Load Current | 100 mA |
| Load Resistance Range | 12 to 240 ohm |
Yokogawa DCS Process Output Characteristics
The SDV521-S33 uses isolated output channels to drive external 24 V DC field loads. Each channel provides current source operation with independent module isolation, reducing electrical interaction between connected output circuits.
Additionally, the module supports Yokogawa process control output architectures where field device signals require controlled current delivery. The 4-channel configuration allows compact installation for discrete actuator and device control applications.
The module design follows Yokogawa I/O engineering practices, including channel-to-channel isolation for improved field wiring separation and stable operation within distributed control and safety-related environments.
Frequently Asked Questions
Q: What output signal type does the SDV521-S33 provide?
A: The SDV521-S33 provides current source digital output signals with a 24 V DC output supply.
Q: How many output channels are available on this module?
A: The module contains 4 output channels with module isolation between output circuits.
Q: What external power supply is required for field output operation?
A: The module requires an external 24 V DC power supply rated at a minimum of 10 A.
Field Installation Guidelines
- Install the SDV521-S33 according to Yokogawa ProSafe-RS hardware installation procedures.
- Verify the module mounting position and terminal wiring before applying field power.
- Separate output signal wiring from high-voltage power cables to reduce electrical interference.
- Confirm field device polarity and load resistance values before connection.
- Use appropriate grounding and shielding practices for industrial control cabinet wiring.
- Check external 24 V DC supply capacity before connecting multiple output loads.
- Inspect terminal connections periodically to maintain proper electrical contact.
