Overview

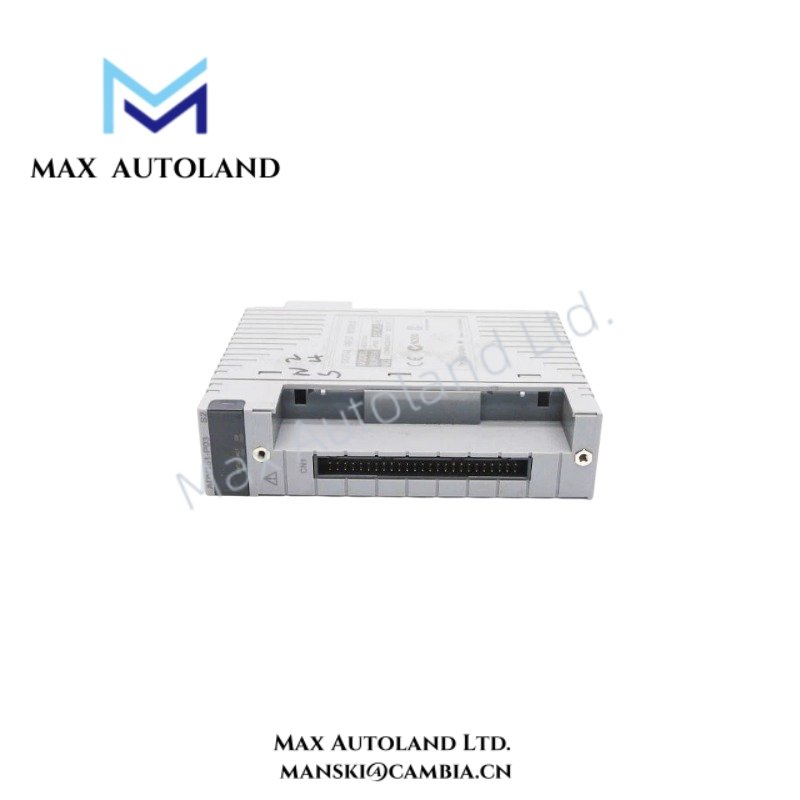

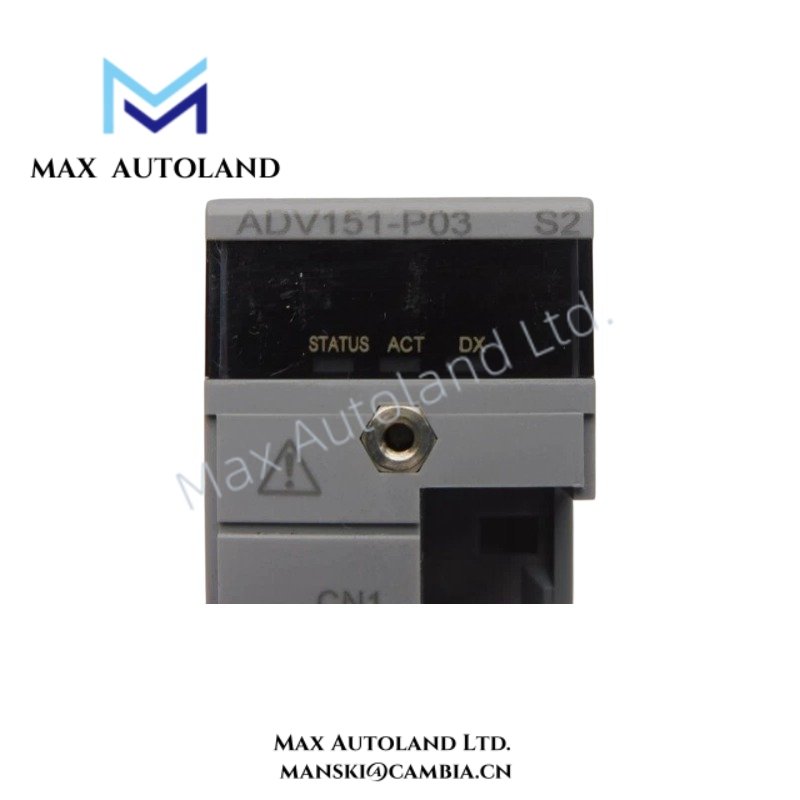

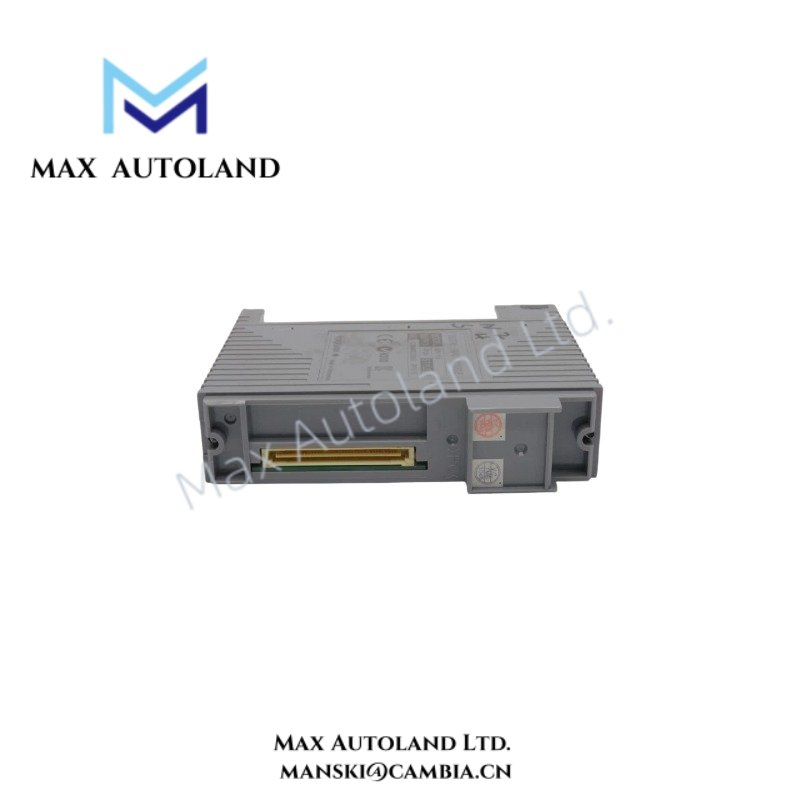

The Yokogawa ADV151-P03, also cataloged as the ADV151-P03 Digital Input Module, operates as a dedicated hardware component for ON/OFF status signal acquisition within Yokogawa CENTUM VP Distributed Control Systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P03 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Digital Input Module |
| Input Channels | 32 channels, isolated, common per 16 channels |
| Input Voltage | 24 VDC rated input |
| Input Signal Type | ON/OFF status input |
| Input ON Voltage | 18 to 26.4 VDC |
| Input OFF Voltage | 5 VDC or less |
| Input Current | 4.1 mA +/- 20% per channel at rated voltage |
| Maximum Input Voltage | 30 VDC |
| Response Time | 8 ms or less |
| Electrical Isolation | 2 kV AC for 1 minute between input signal and system; 500 V AC for 1 minute between commons |
| External Connection | Pressure clamp terminal, AKB331 dedicated cable compatible, MIL connector cable compatible |
| Weight | 0.26 kg |
| Dimensions | 3.2 x 10.2 x 13 cm |
| Operating Temp | Not specified in supplied data |
| Power Consumption | Approx. 500 mA maximum at 5 VDC system supply |
Yokogawa DCS Signal Acquisition and Channel Isolation
The ADV151-P03 uses a 32-channel digital input architecture to collect discrete field contact signals from industrial devices. Each channel processes ON/OFF states from switches, sensors, and contact outputs while maintaining electrical separation between field signals and the control system.
Additionally, the module supports channel grouping with common terminals arranged per 16 channels. This structure simplifies field wiring and supports organized signal distribution within CENTUM VP I/O configurations.
The module supports sequence-related functions, including status detection, pushbutton edge counting, pulse input handling, and Sequence of Events (SOE) data capture. Therefore, the controller can record field state transitions with defined input response characteristics.
Frequently Asked Questions
Q: What input signal level does the Yokogawa ADV151-P03 accept?
A: The module accepts 24 VDC digital input signals with an ON voltage range of 18 to 26.4 VDC and an OFF voltage of 5 VDC or less.
Q: How does the ADV151-P03 provide electrical isolation?
A: The module provides 2 kV AC isolation for 1 minute between input signals and the system, plus 500 V AC isolation between common groups.
Q: Can the ADV151-P03 process pulse-related field signals?
A: Yes. The module supports pushbutton edge counting, pulse input capability, and SOE data capture functions.
Field Installation Guidelines
Install the ADV151-P03 in the designated Yokogawa I/O node location and verify correct module seating before system operation.
Use approved Yokogawa cables or compatible terminal wiring methods for field connections. Keep digital input wiring separated from high-voltage power lines and strong electromagnetic interference sources.
Connect cable shields according to the site grounding standard. Avoid unnecessary grounding loops between field devices and control system cabinets.
Before commissioning, verify input polarity, common terminal assignment, and field device voltage levels. Confirm that each channel changes state correctly through the DCS engineering workstation.
