Overview

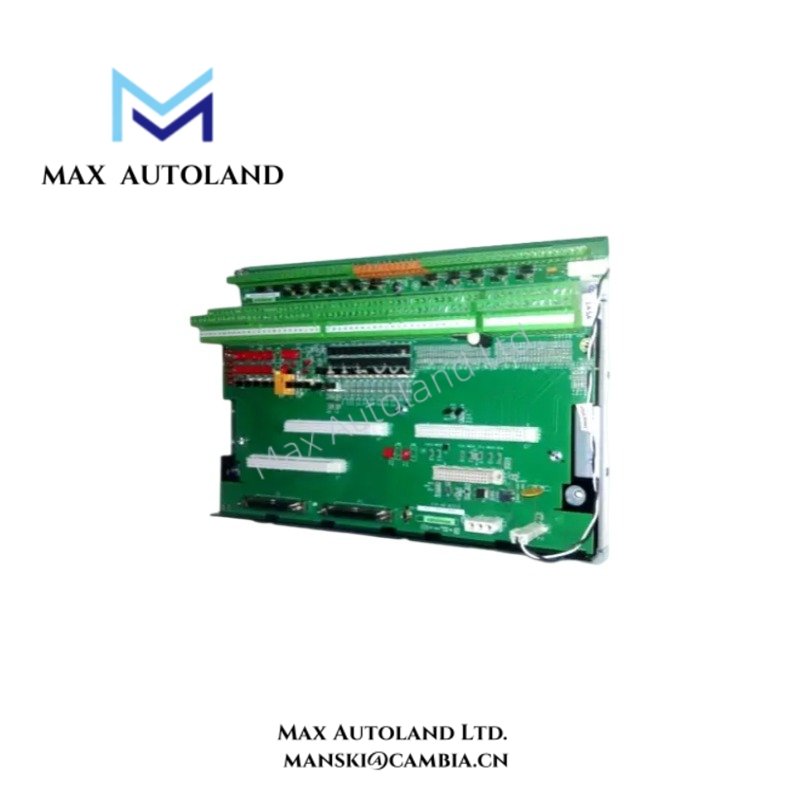

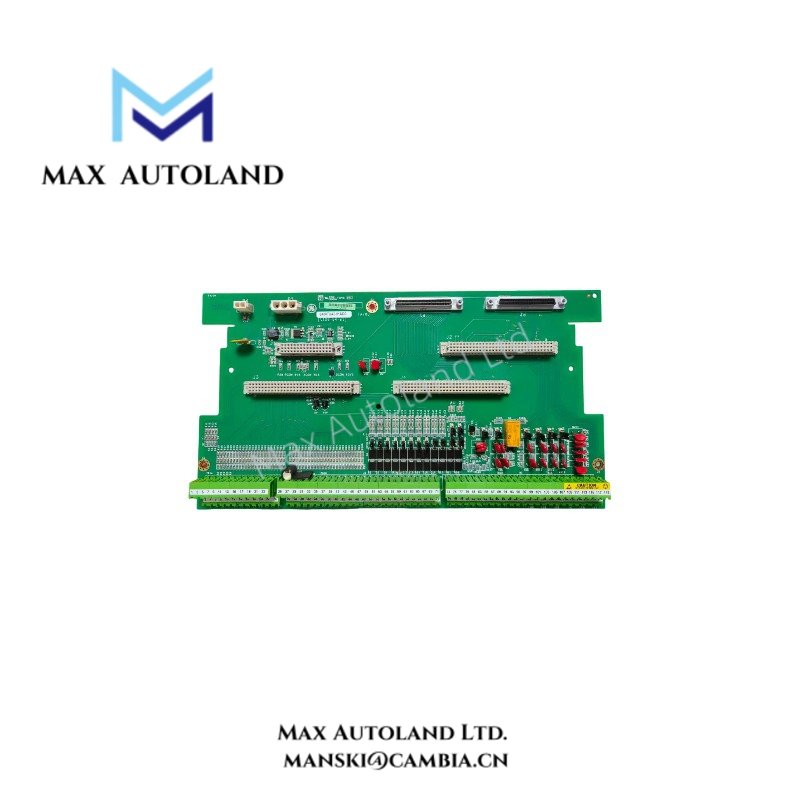

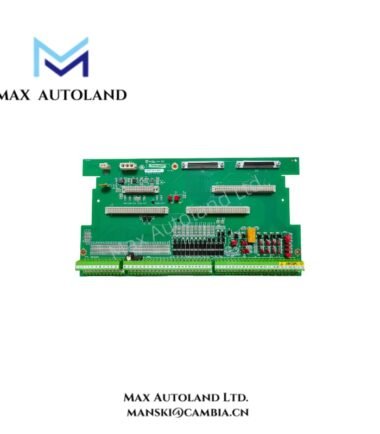

The GE IS400TCASH1A, also cataloged as the IS400TCASH1A Core Analog PCAA Module Terminal Board, provides physical signal termination and electrical routing functions within the GE Mark VIe turbine control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS400TCASH1A |
| Brand | General Electric (GE) |
| Product Type | Core Analog (PCAA) Module Terminal Board |
| Series | Mark VIe |
| Origin | USA |
| Operating Temp | -30 to +65 deg C system operating range |
| Power Consumption | Supplied through Mark VIe I/O system architecture; value not specified |
| Function | Analog signal termination and interface board |
| System Compatibility | GE Mark VIe turbine control platform |
| Signal Interface | Analog field signal connection and routing |
Industrial Control Interface and I/O Architecture
The IS400TCASH1A terminal board operates as a physical interface layer between field devices and the GE Mark VIe control system. It manages analog signal termination, cable connections, and signal routing toward the Core Analog (PCAA) module.
GE Mark VIe systems use Ethernet-based control architecture with distributed I/O processing. Therefore, the terminal board supports direct connection between turbine instrumentation circuits and controller I/O modules without additional intermediate instrumentation equipment.
For GE industrial control platforms, backplane communication velocity and I/O density scaling depend on the installed Mark VIe controller and I/O hardware configuration. The IS400TCASH1A provides the required terminal interface structure for analog channel expansion and system integration.
Frequently Asked Questions
Q: Does the IS400TCASH1A operate as a standalone controller module?
A: No. The IS400TCASH1A is a terminal board assembly that provides analog signal termination and connection functions. It operates together with compatible Mark VIe control hardware.
Q: Can the IS400TCASH1A be installed without considering field wiring requirements?
A: No. Installation requires correct field cable routing, shield termination, grounding practices, and verification of analog signal polarity before system operation.
Q: Does the IS400TCASH1A require independent firmware installation?
A: No. The terminal board itself does not execute application firmware. Firmware compatibility applies to the connected Mark VIe controller and I/O modules.
Field Installation Guidelines
- Verify the terminal board part number before installation to ensure compatibility with the intended Mark VIe I/O configuration.
- Connect field wiring according to GE Mark VIe system drawings and terminal assignments.
- Maintain proper separation between analog signal wiring and high-voltage power conductors to reduce electrical interference.
- Terminate cable shields according to site grounding standards and avoid unnecessary ground loops.
- Inspect terminal connections for correct torque, conductor placement, and insulation clearance before system startup.
- Confirm I/O channel assignments through the control system configuration database before commissioning.
