Overview

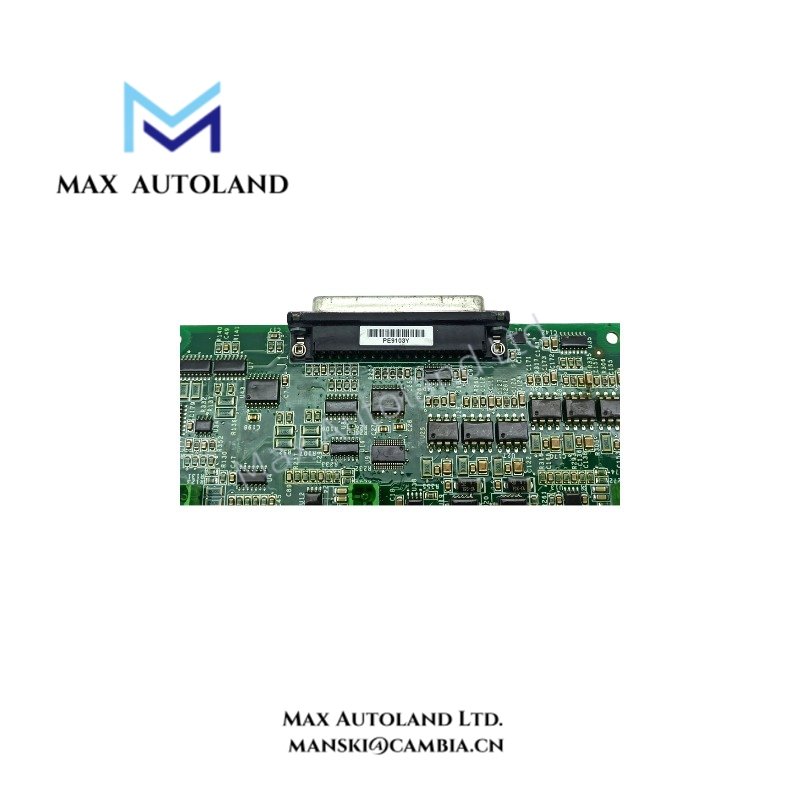

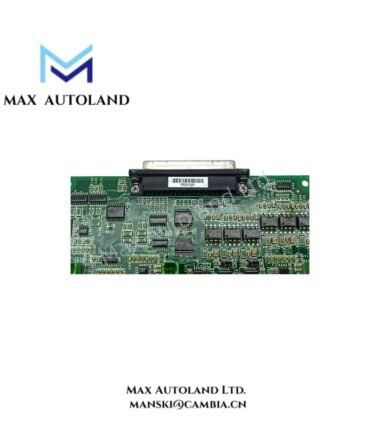

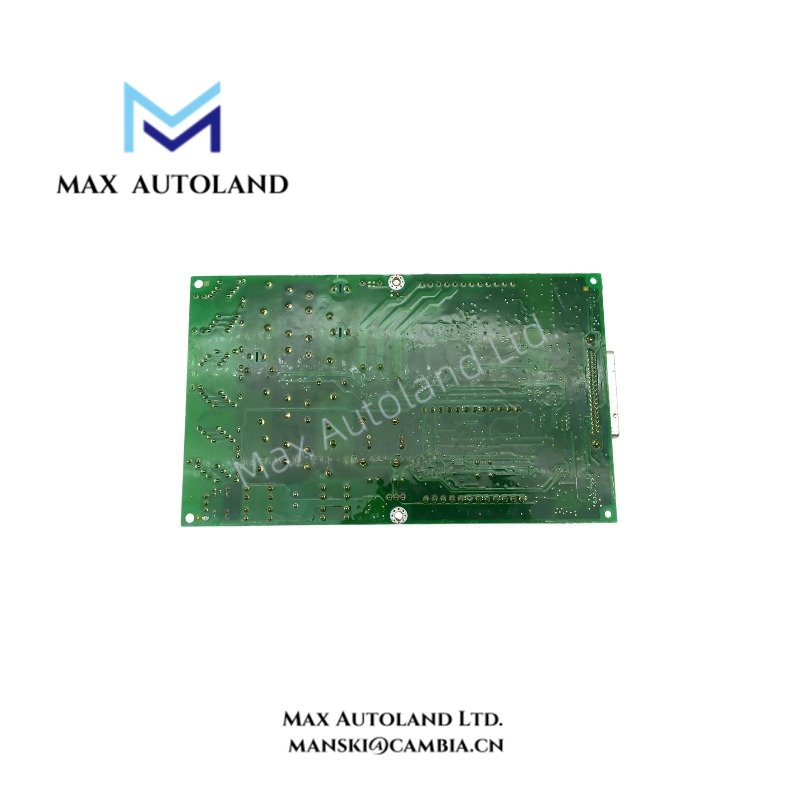

The GE IS200AEADH4A, also cataloged as the IS200AEADH4A Input Terminal Board, provides 16 isolated input channels for analog voltage and current signals within the GE EX2100 Series Alternative Energy Application D platform. It accepts +/-10 VDC, 0-10 VDC, 0-20 mA, and 4-20 mA signals at 10 samples/sec.
Suffix Breakdown & Model Matrix
The supplied data identifies IS200AEADH4A as a complete fixed model number. No verified suffix or matrix breakdown is provided, so the individual characters are not assigned separate functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200AEADH4A |
| Brand | General Electric |
| Series | EX2100 |
| Application | Alternative Energy Application D |
| Product Type | Input Terminal Board |
| Origin | USA |
| Weight | 0.12 kg |
| Dimensions | 2 x 18.6 x 12.7 cm estimated shipping size |
| Input Channels | 16 isolated channels |
| Voltage Input | +/-10 VDC, 0-10 VDC |
| Current Input | 0-20 mA, 4-20 mA |
| Sampling Rate | 10 samples/sec |
| Field Wiring | 18-22 AWG |
| Tariff Code | 8537101190 |
GE Industrial Analog Signal Characteristics
The IS200AEADH4A processes analog field inputs through 16 isolated channels. The specified voltage ranges are +/-10 VDC and 0-10 VDC, while the current ranges are 0-20 mA and 4-20 mA. The module specifies a sampling rate of 10 samples/sec.
Because the supplied data does not define the isolation voltage, channel-to-channel isolation method, backplane interface, or firmware compatibility, these parameters should not be inferred. The specified 18-22 AWG field-wiring range provides the available conductor-size reference for field connections.
Frequently Asked Questions
Q: How many isolated input channels does the IS200AEADH4A provide?
A: The supplied specification identifies 16 isolated input channels.
Q: Which analog signal ranges does the board accept?
A: It accepts +/-10 VDC and 0-10 VDC voltage signals, plus 0-20 mA and 4-20 mA current signals.
Q: What field-wiring size is specified for the IS200AEADH4A?
A: The supplied data specifies 18-22 AWG field wiring.
Field Installation Guidelines
Install the IS200AEADH4A according to the applicable GE EX2100 hardware documentation and cabinet wiring requirements.
Verify each field circuit before connection. Match the selected input channel to the intended voltage or current signal type, and confirm that the applied signal remains within the specified input range.
Use 18-22 AWG conductors as specified for field wiring. Route analog signal wiring separately from high-voltage power conductors where practical to reduce electrical interference.
Terminate cable shields according to the system grounding design. Avoid creating unintended ground loops, and verify polarity for voltage and current circuits before energizing the system.
The supplied data does not define terminal assignments, connector pinouts, isolation ratings, fuse requirements, or hot-swap restrictions. Verify these parameters in the applicable GE documentation before commissioning.
