Overview

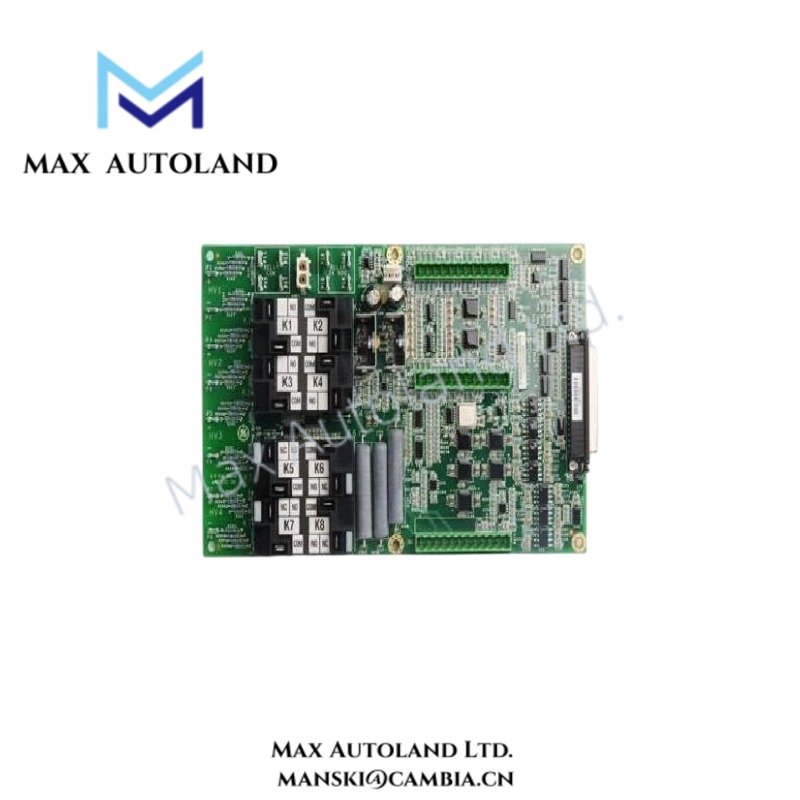

Configured for protected PCB-level control and signal-processing functions in the GE Mark VIe Wind platform, the GE IS210AEAAH1BJE (IS210AEAAH1BJE conformal coated PCB) uses a conformal-coated construction for operation across the specified industrial temperature range. The supplied data identifies the functional acronym as AEAA and specifies 12 VDC, 1.5 A power input.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210AEAAH1BJE |
| Base Model | IS210AEAAH1BJE |
| Brand | General Electric (GE) |
| Series | Mark VIe Wind |
| Functional Acronym | AEAA |
| Product Type | Conformal Coated PCB |
| PCB Coating | Conformal Coating |
| Origin | Not specified in supplied data |
| Weight | 0.22 kg |
| Dimensions | 3.5 cm x 14 cm x 14.5 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 12 VDC, 1.5 A |
| Conversion Efficiency | 98% |
| Control Accuracy | +/- 0.1% |
| Material | High-grade aluminum alloy |
Industrial Control and PCB Interface Characteristics
The IS210AEAAH1BJE belongs to the GE Mark VIe Wind hardware family. Its AEAA functional designation identifies the supplied board as a conformal-coated PCB.
The conformal coating provides a protective layer over the populated circuit board. Therefore, installation should maintain the board’s specified environmental limits and avoid mechanical damage to the coating.
The supplied electrical data specifies a 12 VDC, 1.5 A power requirement. Consequently, the connected power source should maintain the required DC voltage and current capacity during operation.
The stated conversion efficiency is 98%, while the specified control accuracy is +/- 0.1%. These values describe the supplied performance characteristics and should not be interpreted as unlisted channel-level measurement specifications.
Frequently Asked Questions
Q: What power input does the IS210AEAAH1BJE require?
A: The supplied specification identifies a 12 VDC power requirement with a 1.5 A current rating.
Q: What environmental temperature range is specified for this PCB?
A: The specified operating temperature range is -40 deg C to +70 deg C.
Q: Does the board use conformal coating?
A: Yes. The supplied data identifies the PCB coating as conformal coating.
Field Installation Guidelines
- Verify the full part number IS210AEAAH1BJE before installation.
- Inspect the conformal coating for scratches, delamination, contamination, or other visible damage.
- Install the PCB in a clean and dry control-system enclosure.
- Confirm that the available DC supply matches the specified 12 VDC input requirement.
- Ensure the supply can provide the specified 1.5 A current without excessive voltage drop.
- Route power and signal wiring separately where the installation architecture permits.
- Avoid placing the board near uncontrolled heat sources that could exceed the -40 deg C to +70 deg C operating range.
- Use appropriate ESD handling procedures when removing or installing the PCB.
- Do not modify coated components, connectors, solder joints, or board conductors unless the applicable GE maintenance documentation permits the work.
- After installation, verify connector seating, supply polarity, mechanical retention, and system-level diagnostics before returning the assembly to service.
