Overview

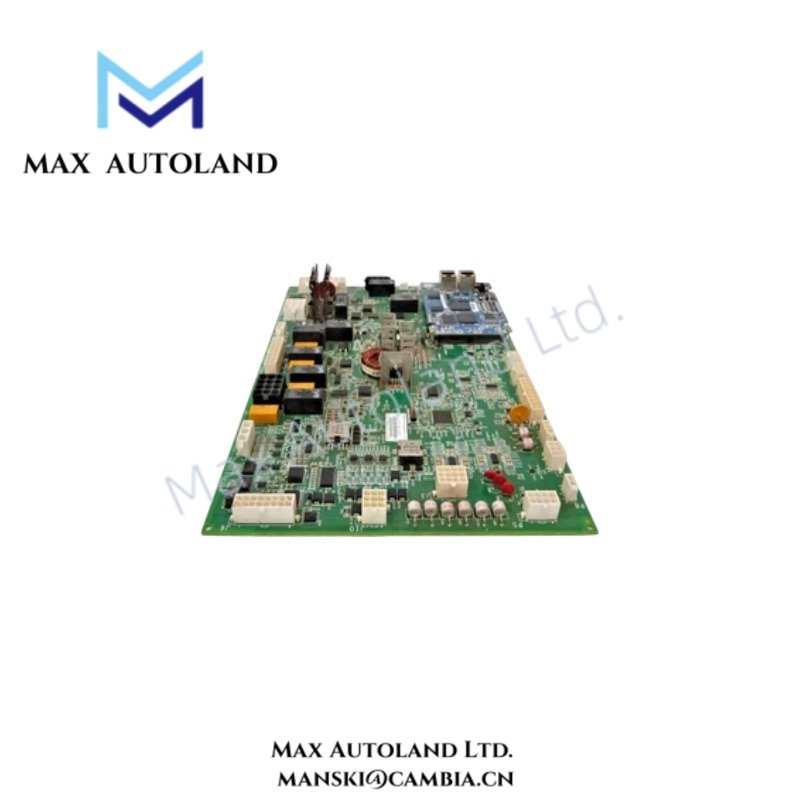

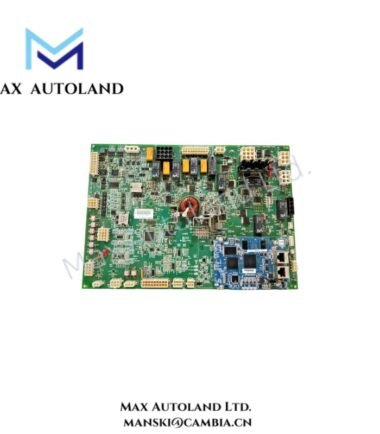

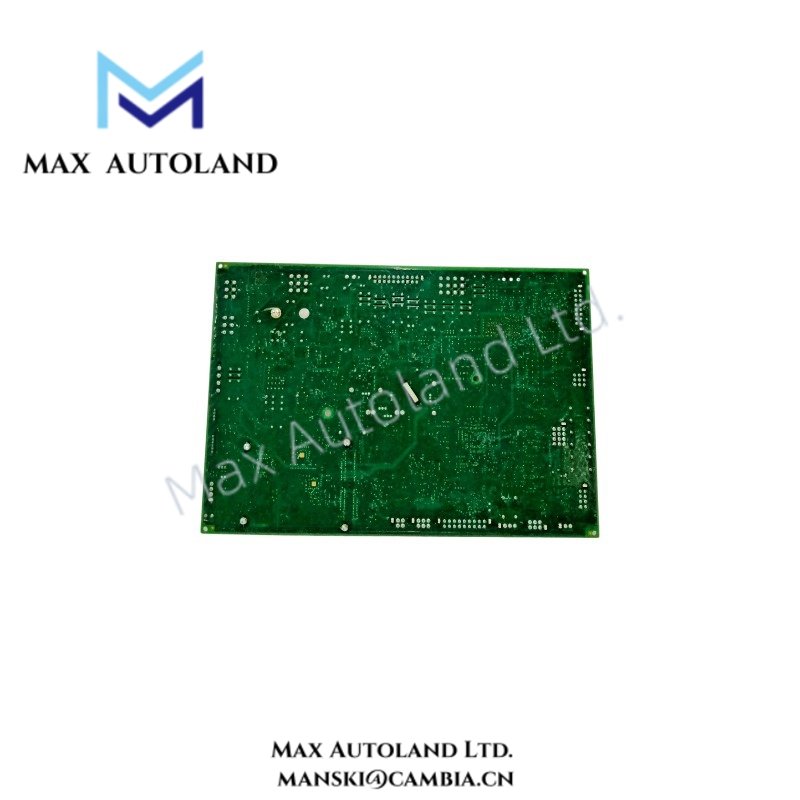

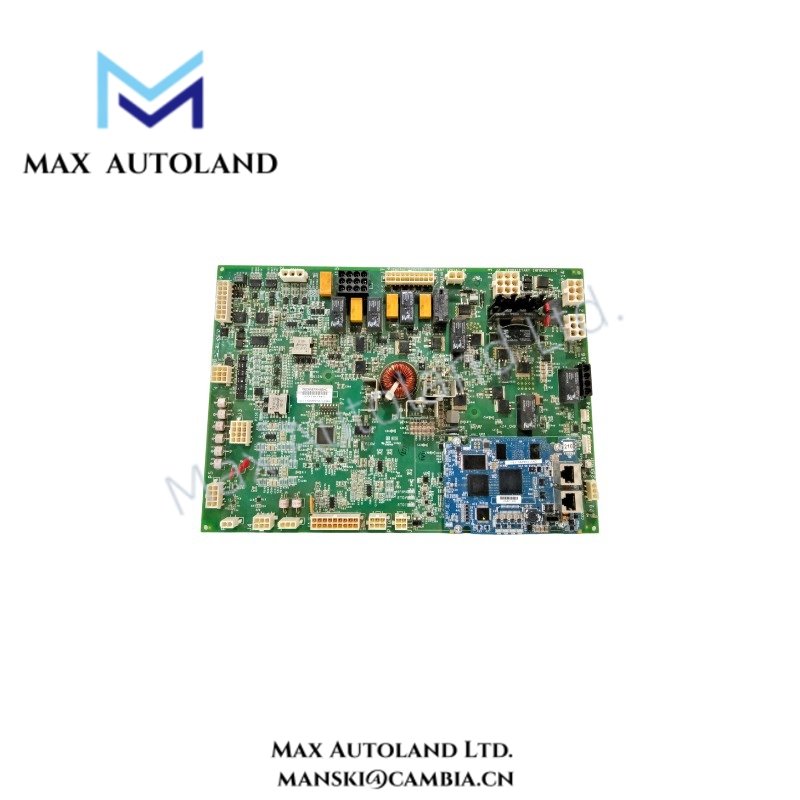

Configured for thyristor bridge gate-command interfacing in the EX2100e Excitation Control System, the GE IS200EBRGH2AEB (IS200EBRGH2A Exciter Bridge Interface Board) provides the electrical interface between SCR bridge circuits and excitation control processors. It supports six gate commands and one controlled PCM for field excitation control.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200EBRGH2AEB |
| Base Model | IS200EBRGH2A |
| Brand | General Electric (GE) |
| Product Series | EX2100e / Speedtronic Mark VIe |
| Product Type | Exciter Bridge Interface Board |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Not specified in supplied data |
| Nominal Power Supply | 125 VDC |
| Thyristor Compatibility | 42 mm, 52 mm, and 77 mm thyristor systems |
| Gate Commands | 6 |
| Controlled PCMs | 1 |
| Assembly Level | 200 |
| Technology | Surface Mount Technology (SMT) |
| Status Indicators | On-board LEDs |
| ESD Classification | Static-sensitive device |
GE Excitation and Thyristor Interface Characteristics
The IS200EBRGH2AEB interfaces excitation control signals with thyristor-based SCR bridge hardware. Therefore, its electrical role centers on gate-command transmission rather than general-purpose I/O processing.
The board supports 42 mm, 52 mm, and 77 mm thyristor systems. In addition, it provides six gate commands and controls one PCM within the specified excitation architecture.
The 125 VDC nominal supply defines the stated input power interface. However, the supplied data does not specify board-level power consumption or backplane current requirements.
On-board LEDs provide local operational and functional status indication. Because the assembly uses SMT construction and is identified as static-sensitive, personnel should apply ESD controls during handling and installation.
Frequently Asked Questions
Q: What thyristor systems does the IS200EBRGH2AEB support?
A: The supplied specification identifies compatibility with 42 mm, 52 mm, and 77 mm thyristor systems.
Q: How many gate commands does this board provide?
A: The board provides 6 gate commands and controls 1 PCM.
Q: Is the board suitable for hot-swapping during operation?
A: Hot-swap capability is not specified in the supplied technical data. Follow the applicable EX2100e maintenance procedure before removing or installing the board.
Field Installation Guidelines
- Confirm the complete part number, including the IS200EBRGH2AEB suffix, before installation.
- Isolate the applicable excitation equipment and verify the absence of hazardous electrical energy before handling the board.
- Use appropriate ESD protection because the board is identified as static-sensitive.
- Inspect connectors, board surfaces, and mounting hardware for contamination or mechanical damage before installation.
- Maintain proper separation between control wiring and high-current SCR bridge conductors to reduce unwanted electrical interference.
- Route signal wiring according to the applicable EX2100e system installation documentation.
- Verify the 125 VDC supply interface against the approved system wiring documentation before energization.
- After installation, check the on-board LEDs and confirm normal status indications according to the applicable control-system procedure.
- Do not assume hot-swap capability because the supplied specifications do not define live insertion or removal limits.
