Overview

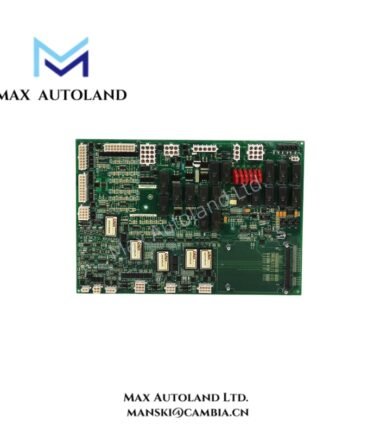

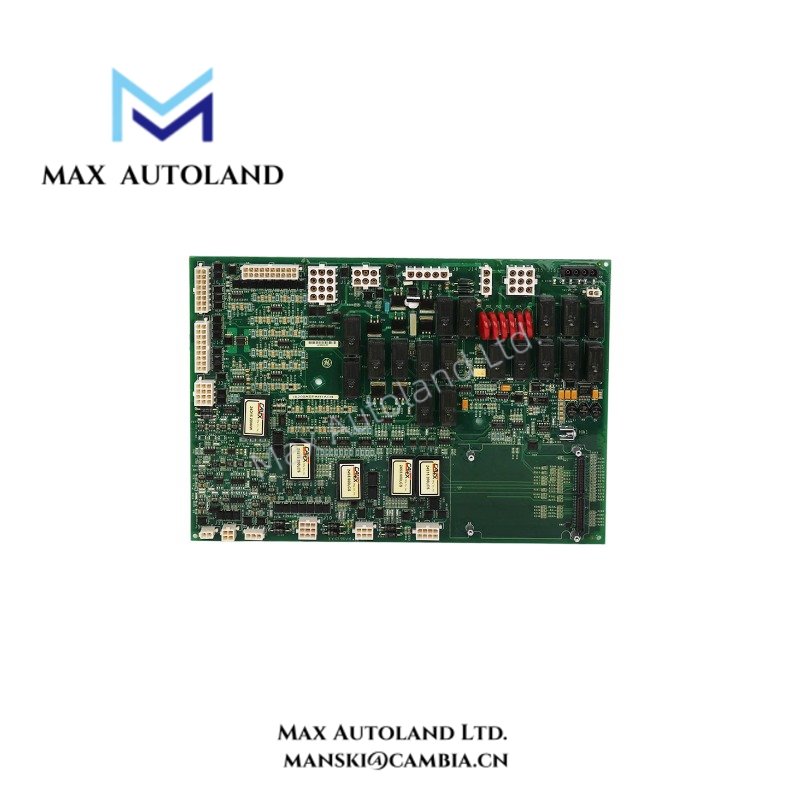

The GE IS200AEPAH1A, also cataloged as the IS200AEPAH1A Analog Interface PCB, operates as a dedicated hardware component for analog signal acquisition and interface processing within the GE Mark VI turbine control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200AEPAH1A |
| Brand | General Electric (GE) |
| Origin | USA |
| Weight | 0.85 kg |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | 8 W typical |
| Product Series | Mark VI / Mark VIe Speedtronic |
| Board Type | Analog Interface Printed Circuit Board |
| Input Voltage | 24 VDC +/-10% |
| Analog Inputs | 8 channels |
| Storage Temperature | -40 deg C to +85 deg C |
| Humidity | 5-95% non-condensing |
| Vibration Rating | 5-500 Hz |
GE Mark VI Backplane Communication and I/O Processing
The IS200AEPAH1A PCB interfaces with the Mark VI control architecture through the system backplane and supports analog signal processing functions. The board receives field-level analog inputs, conditions electrical signals, and transfers processed data to the turbine control processor.
The module design follows GE industrial control hardware practices, including firmware compatibility with the installed Mark VI rack configuration. Therefore, system software revision and controller hardware revision must match the installed board configuration.
The GE Mark VI platform uses deterministic internal communication paths for controller coordination. Consequently, correct rack addressing, backplane connection integrity, and firmware compatibility directly affect signal processing performance.
The board supports industrial I/O density scaling through multi-channel analog acquisition capability. Additionally, proper shielding and grounding practices reduce electrical interference during low-level analog measurement.
Firmware Flash Compatibility and System Integration
The IS200AEPAH1A requires compatible Mark VI firmware and hardware configuration parameters to operate correctly within the turbine control system. Firmware compatibility determines communication behavior, diagnostic availability, and supported control functions.
The PCB integrates with GE Speedtronic control platforms through defined hardware interfaces. Furthermore, maintenance procedures should verify board identification, rack position, and controller recognition before replacement or commissioning.
Frequently Asked Questions
Q: What input signals does the IS200AEPAH1A process?
A: The IS200AEPAH1A provides analog input processing through 8 channels. The exact signal range depends on the Mark VI system configuration and connected field devices.
Q: Can the IS200AEPAH1A operate in any Mark VI rack position?
A: No. The installation position depends on the configured Mark VI rack architecture, controller assignment, and system database settings.
Q: Does replacing the IS200AEPAH1A require firmware verification?
A: Yes. The replacement board must match the installed Mark VI firmware and hardware compatibility requirements to maintain correct diagnostics and communication.
Field Installation Guidelines
- Verify the controller cabinet power supply is removed before installing or removing the PCB.
- Confirm the board part number and hardware revision match the existing Mark VI configuration.
- Install the PCB into the designated rack slot according to the system hardware manual.
- Inspect backplane connectors for contamination, mechanical damage, or oxidation before installation.
- Maintain proper cabinet grounding and use shielded signal wiring for analog input connections.
- Separate analog signal cables from high-voltage power conductors to reduce electrical noise coupling.
- After installation, verify controller diagnostics, I/O status, and communication feedback through the Mark VI maintenance interface.
