Overview

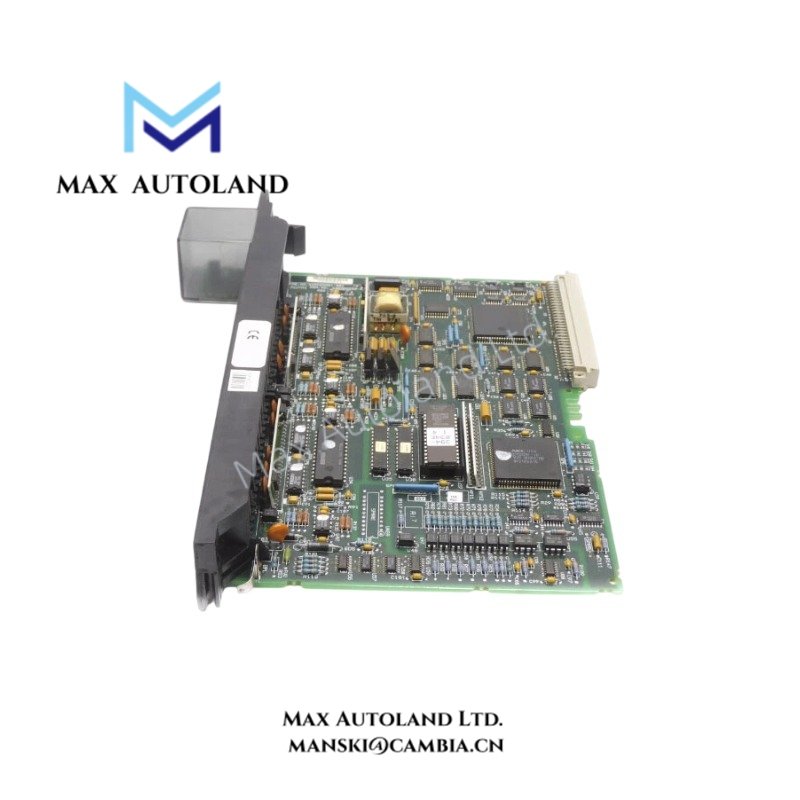

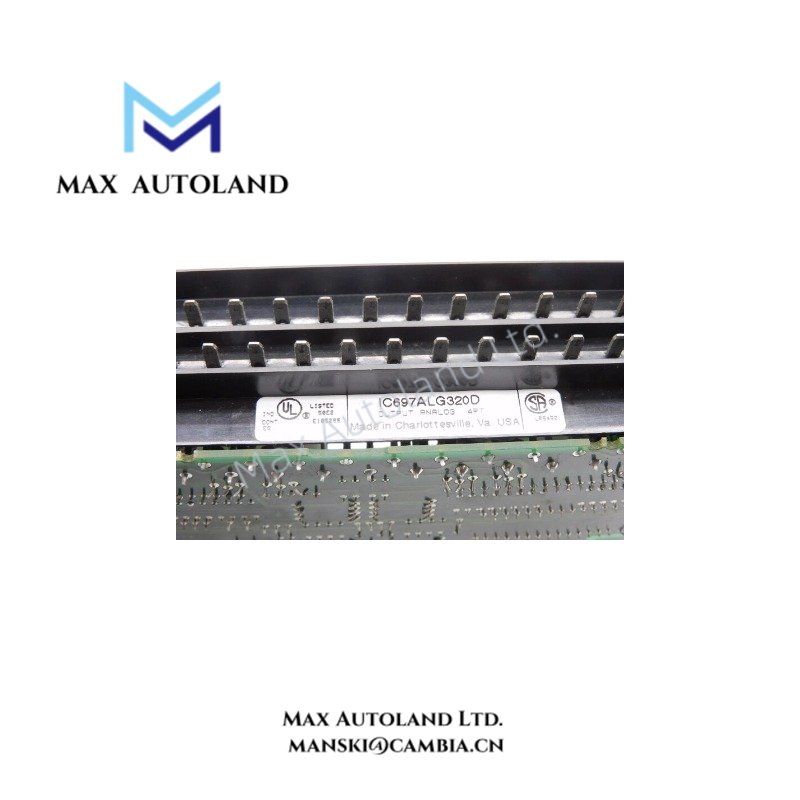

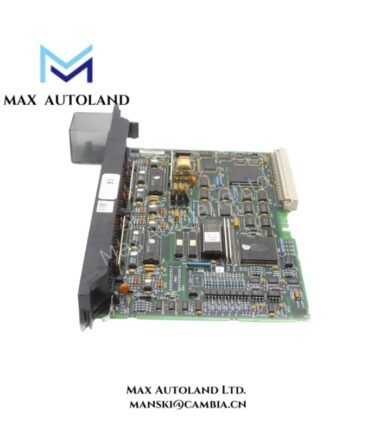

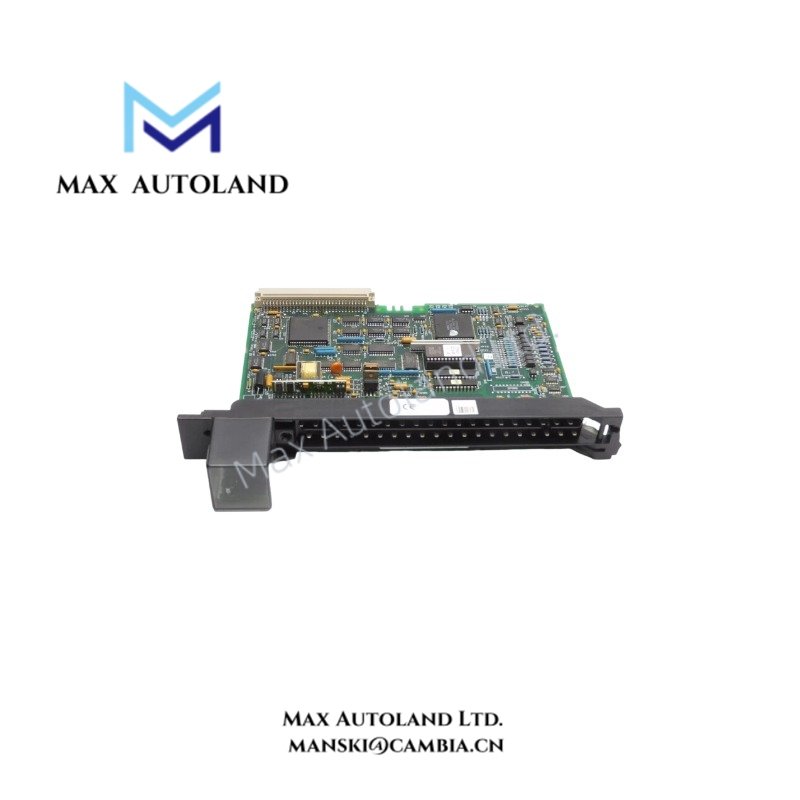

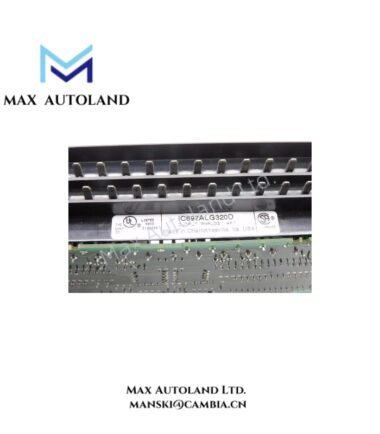

Configured for analog voltage and current signal generation in the Series 90-70 PLC platform, the GE Fanuc IC697ALG320 (IC697ALG320 Analog Output Module) provides four physical output channels. The module supports 0-20 mA, 4-20 mA, and -10 VDC to +10 VDC output ranges. It uses 16-bit output resolution with 14-bit monotonicity and occupies one rack slot.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC697ALG320 |
| Brand | GE Fanuc; formerly GE Fanuc, current platform support under Emerson Automation |
| Series | Series 90-70 |
| Product Type | Analog Output Module |
| Origin | USA |
| Weight | 0.64 kg listed in technical specifications; 0.84 kg listed in product data |
| Dimensions | 4 x 21.7 x 29.1 cm estimated shipping size |
| Operating Temp | Not specified in the supplied data |
| Power Consumption | 1.66 A at 5 VDC, 8.3 W maximum; 150 mA DC user power required for current outputs |
| Number of Output Channels | 4 |
| Maximum Output Channels | 252 |
| Output Signal | 0-20 mA / 4-20 mA; -10 VDC / +10 VDC |
| Current Output Range | 0 to 22.5 mA; product description lists 0 to 22.2 mA |
| Voltage Output Range | -10 VDC to +10 VDC |
| Output Resolution | 16 bit with 14-bit monotonicity |
| Voltage LSB Step | 312.5 microvolts per LSB |
| Conversion Rate | 2.0 ms |
| External Supply Voltage | 10 to 30 VDC, 24 VDC typical |
| Factory Calibration | 10 V +/- 2 mV |
| Maximum Modules per Rack | 7 IC697ALG320 modules |
| Module Width | 1 slot |
| Product Lifecycle | Discontinued / Obsolete |
PLC Analog Output Signal Characteristics
The IC697ALG320 converts PLC output data into analog voltage or current signals. Its voltage range extends from -10 VDC to +10 VDC, while its current output supports 0-20 mA and 4-20 mA configurations. In addition, the module provides 16-bit output resolution with 14-bit monotonicity.
The supplied specifications state a 312.5 microvolt LSB step for voltage output. Furthermore, the module uses a 2.0 ms conversion rate. The external supply accepts 10 to 30 VDC, with 24 VDC identified as the typical value.
The module supports up to seven IC697ALG320 modules in one rack. Therefore, the stated maximum system capacity reaches 252 output channels when the applicable rack configuration uses seven four-channel modules.
Frequently Asked Questions
Q: What analog output signals does the IC697ALG320 support?
A: It supports 0-20 mA, 4-20 mA, and -10 VDC to +10 VDC analog outputs.
Q: How many IC697ALG320 modules can one rack contain?
A: The supplied specifications identify a maximum of seven IC697ALG320 modules per rack.
Q: What external supply voltage does the module require?
A: The specified external supply range is 10 to 30 VDC, with 24 VDC listed as typical.
Field Installation Guidelines
Install the IC697ALG320 in the designated Series 90-70 rack slot and secure the module according to the rack hardware arrangement. Before wiring, verify the selected output type and the electrical requirements of the connected field device.
Route analog signal wiring separately from high-current power conductors and switching circuits where practical. Use appropriate shielded cable for low-level analog signals when the installation requires additional noise control. Terminate shields according to the site’s established grounding scheme.
Verify the external 10 to 30 VDC supply before energizing the module. For current outputs, also provide the specified user-supplied DC power. Finally, check terminal polarity, signal range, and load wiring before placing the output channel into service.
