Overview

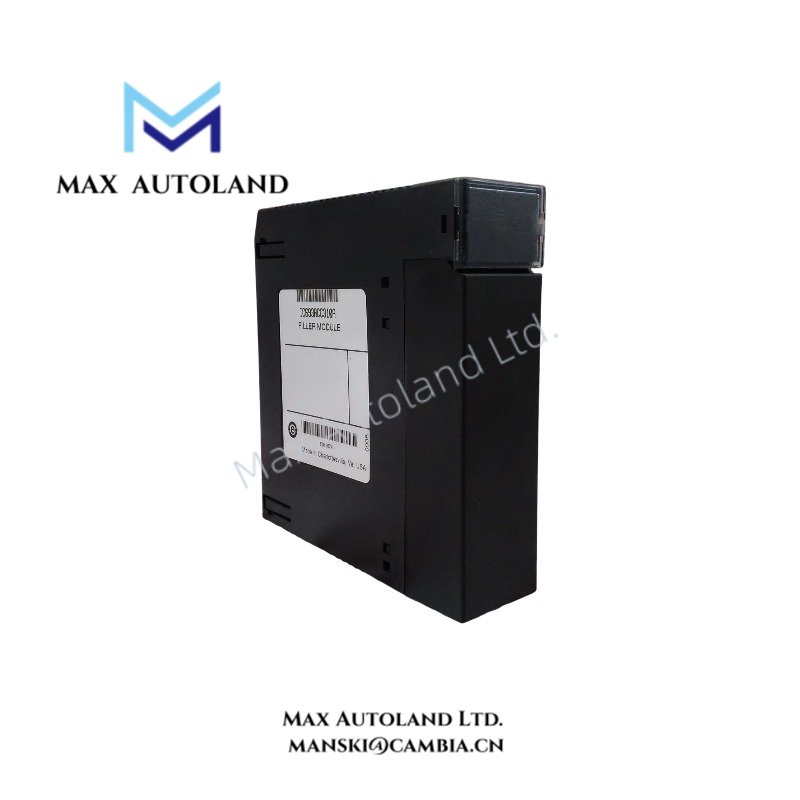

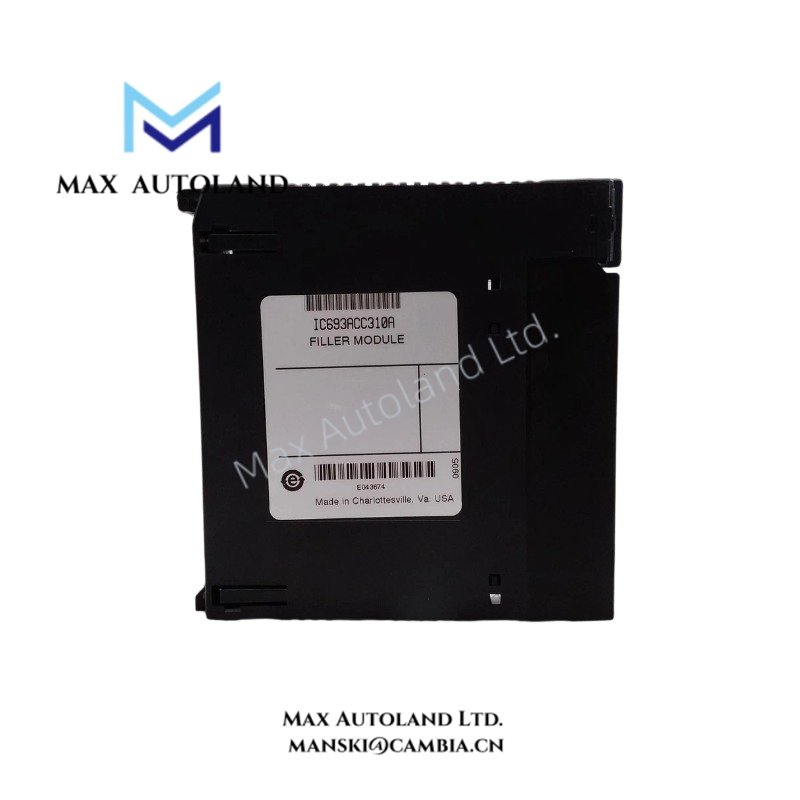

The GE Fanuc IC693ACC310, also cataloged as the IC693ACC310 Filler Module, provides a physical slot cover for Series 90-30 PLC racks. It occupies one module slot and contains no stated signal-processing function. The unit can be installed in local, expansion/remote, or distributed I/O racks as required.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC693ACC310 |
| Brand | GE Fanuc |
| Series | Series 90-30 |
| Product Type | Filler Module |
| Item Name | Filler Module |
| Product Description | Slot cover |
| Origin | USA |
| Weight | 0.12 kg |
| Dimensions | 3.5 x 13 x 13.5 cm estimated shipping size |
| Voltage Rating | 120 VAC |
| Amperage Rating | 0.5 A |
| Slot Width | Single slot |
| Number of Module Installations | As needed |
| Number of Slots Covered | Single slot |
| Rack Location | Any slot |
| Compatible Controller | All Series 90-30 CPUs |
| Compatible Rack | Local rack, Expansion / Remote racks, Distributed I/O racks |
| Supported Component | PLC |
| Ethernet | Listed as supported in supplied data |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
PLC Rack Slot and Backplane Considerations
The IC693ACC310 occupies a single Series 90-30 module position and covers an unused slot. Its physical function differs from an active I/O or communication module because the supplied specifications identify it as a slot cover rather than a signal-processing device.
Therefore, the module does not provide stated analog input, discrete output, CPU processing, or fieldbus signal conversion. Installation preserves the physical enclosure arrangement of the rack while leaving the associated PLC slot unused.
The supplied data also lists Ethernet as supported. However, no Ethernet interface circuitry, connector specification, protocol function, or communication performance is provided for the IC693ACC310 itself. The filler-module function should therefore remain the primary hardware classification.
Frequently Asked Questions
Q: How many rack slots does the IC693ACC310 occupy?
A: The IC693ACC310 occupies one standard Series 90-30 module slot.
Q: Can the IC693ACC310 be installed in different Series 90-30 rack locations?
A: Yes. The supplied specifications identify local racks, expansion/remote racks, and distributed I/O racks as compatible rack types.
Q: Does the IC693ACC310 provide PLC signal processing?
A: No signal-processing function is specified. The supplied product description identifies the unit as a slot cover or filler module.
Field Installation Guidelines
Install the IC693ACC310 in the unused Series 90-30 rack slot according to the rack hardware arrangement. Align the module with the slot guides before securing it to the rack.
Keep the filler module mechanically seated so that the vacant slot remains physically covered. Do not treat the filler module as an active I/O or communication interface unless separate system documentation explicitly identifies additional functionality.
Route field wiring separately from unused filler positions. Since the supplied data does not specify terminals, signal circuits, shielding requirements, or grounding points for this module, do not assign field conductors directly to the filler module.
For replacement work, verify the rack position and controller configuration before installation. Also confirm that the replacement part matches the required Series 90-30 mechanical slot arrangement.
