Overview

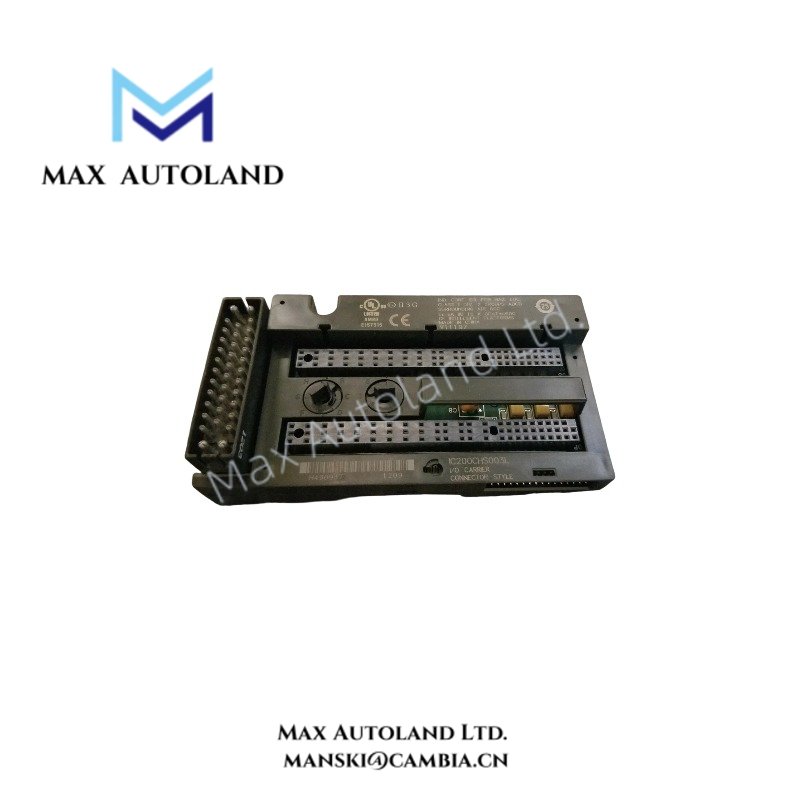

Configured for physical I/O module mounting and field connection in the VersaMax system, the GE Fanuc IC200CHS003 (IC200CHS003 I/O Carrier) provides direct mechanical and electrical support for compatible input and output modules. The carrier uses integrated field termination and a 36-pin connector interface to accommodate up to 32 I/O points while distributing power and ground connections across the installed assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200CHS003 |
| Brand | GE Fanuc Emerson |
| Product Line | VersaMax |
| Product Type | Input/Output Carrier |
| Weight | 0.63 lb (0.28 kg) |
| Type of Field Termination | Integrated |
| Connector Type | 36-pin connector |
| Maximum I/O Points | Up to 32 points |
| Rated Current Per Point | 2 A per point |
| Rated Current Per Power and Ground | 8 A |
| Degree of Protection | IP20 |
| Wiring Termination Style | Connector style |
| Maximum Voltage Transients | 300 VAC |
| Electrical Contact Resistance | Less than 10 milliohms |
| UPC | 990566636044 |
I/O Density and Backplane Integration
The IC200CHS003 supports I/O density scaling by providing a common physical carrier structure for up to 32 input or output points. The integrated termination arrangement connects field wiring through the carrier interface, while the 36-pin connector establishes the electrical connection to the associated VersaMax I/O assembly.
The carrier also distributes power and ground connections within its rated current limits. Therefore, field load calculations should consider both the 2 A per-point rating and the 8 A power and ground rating. The specified contact resistance of less than 10 milliohms also defines the electrical connection characteristic at the carrier interface.
Frequently Asked Questions
Q: How many I/O points can the IC200CHS003 accommodate?
A: The IC200CHS003 can accommodate up to 32 input/output points.
Q: What type of field termination does the carrier use?
A: The carrier uses integrated field termination with a connector-style wiring arrangement.
Q: What connector interface is provided on the IC200CHS003?
A: The carrier uses a 36-pin connector for the associated I/O connection.
Field Installation Guidelines
Install the IC200CHS003 on the specified VersaMax mounting arrangement and verify that the carrier is mechanically secured before connecting field wiring. Keep power and field wiring within the carrier current ratings.
Route field conductors separately from high-voltage switching and high-current cables where possible. Use appropriate grounding and shielding practices for connected field circuits. Verify connector alignment before installation to avoid damage to the 36-pin interface. Maintain enclosure protection suitable for the IP20 rating and the surrounding industrial installation environment.
