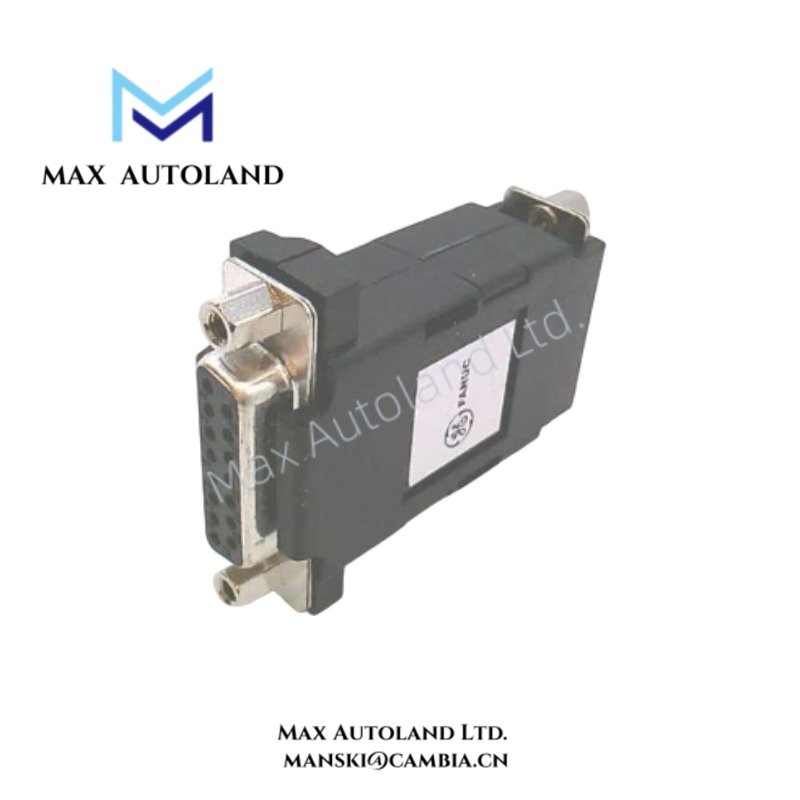

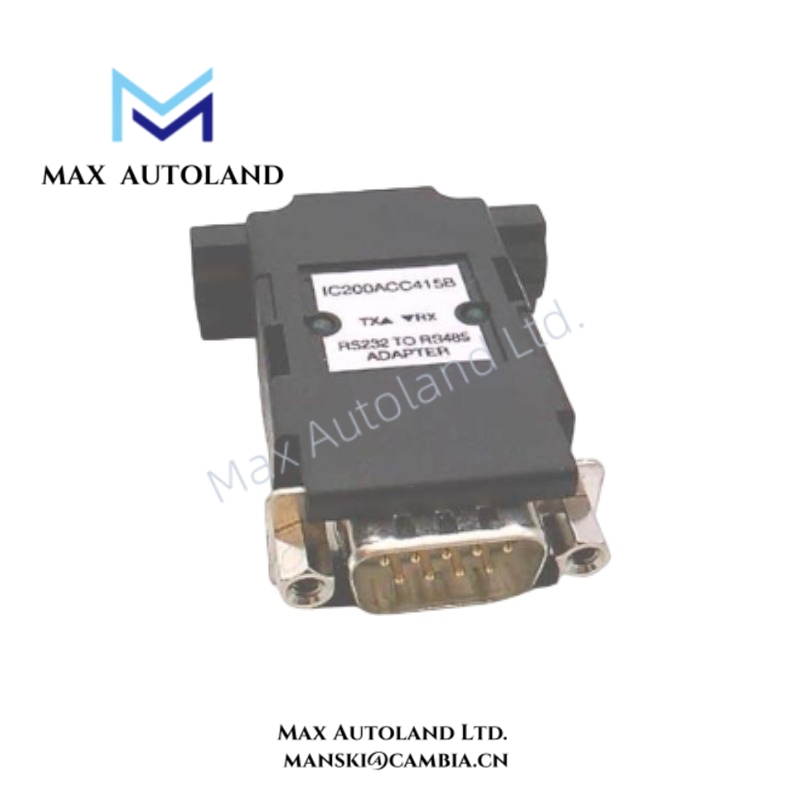

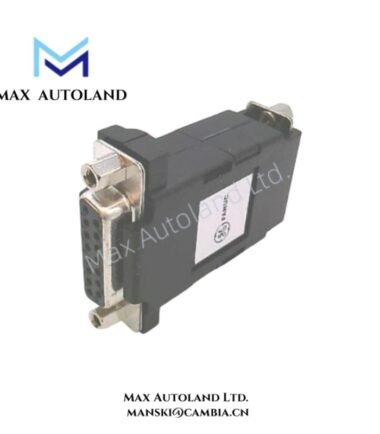

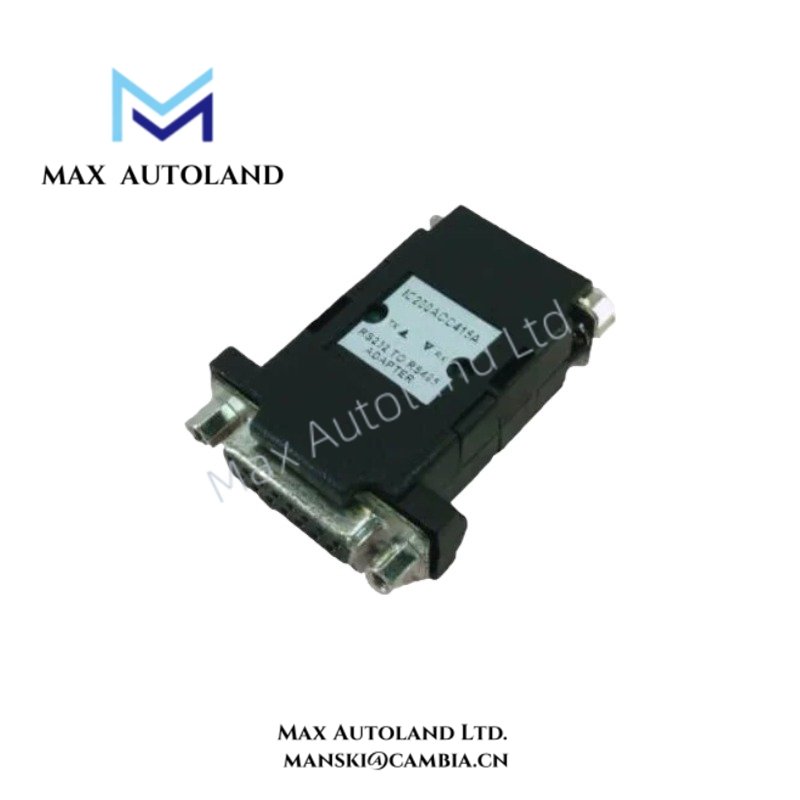

Overview
Configured for serial protocol conversion in VersaMax control networks, the GE Fanuc Emerson IC200ACC415 (IC200ACC415 Serial Communications Converter) provides direct physical and electrical communication between supported RS-232 and RS-485 interfaces. It supports Modbus RTU and SNP ASCII communication, operates from 5-30 VDC, and supports multi-drop connections with data transmission rates up to 115.2 kbps.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200ACC415 |
| Brand | GE Fanuc Emerson |
| Product Type | Serial Communications Converter |
| Product Line | VersaMax |
| Weight | 0.06 lbs (0.03 kg) |
| Voltage Rating | 5-30 VDC |
| Communication Protocols | Modbus RTU, SNP ASCII |
| Connection Type | Multi-drop |
| Data Transmission Rate | Up to 115.2 kbps |
| RS-232 Connections | Supported |
| RS-485 Connections | Supported |
| Male D-Sub Adapter | 9-pin |
| Female D-Sub Adapter | 15-pin |
| LEDs | 2 |
| Mounting | DIN rail |
| Cable | IC200CBL500 or equivalent |
| PLC Compatibility | VersaMax Nano PLCs, VersaMax Micro PLCs |
| Certifications | CE, RoHS |
Serial Network and PLC Interface Characteristics
The IC200ACC415 converts and routes serial communication signals for supported VersaMax control devices. Its RS-232 and RS-485 interfaces provide physical connectivity for different serial network arrangements, while the multi-drop capability supports communication between multiple devices on a shared connection.
The converter supports Modbus RTU and SNP ASCII protocols. Therefore, the connected PLC and external device must use matching communication parameters and protocol settings. The transmission rate can reach 115.2 kbps when the connected devices and network configuration support the selected speed.
As a GE industrial control component, the IC200ACC415 interfaces with VersaMax PLC platforms through defined serial communication paths. Firmware and communication parameter compatibility should be verified against the connected VersaMax Nano or VersaMax Micro PLC configuration before commissioning.
Frequently Asked Questions
Q: Does the IC200ACC415 support both RS-232 and RS-485 communication?
A: Yes. The provided specifications list support for both RS-232 and RS-485 connections.
Q: Which communication protocols does the IC200ACC415 support?
A: The converter supports Modbus RTU and SNP ASCII communication protocols.
Q: What is the maximum specified data transmission rate?
A: The IC200ACC415 supports data transmission rates up to 115.2 kbps.
Field Installation Guidelines
Mount the IC200ACC415 securely on a suitable DIN rail and verify that the mounting position prevents excessive mechanical movement. Connect the power supply within the specified 5-30 VDC range.
Use the specified IC200CBL500 cable or an equivalent compatible cable where required. Route serial communication wiring separately from high-current power conductors and variable-frequency drive output cables to reduce electrical interference.
For RS-485 multi-drop networks, follow standard industrial practices for cable routing, shielding, grounding, and network termination. Confirm the communication protocol, transmission rate, and interface settings before placing the converter into service.
Verify the 9-pin male and 15-pin female D-Sub connections before energizing the system. The two onboard LEDs can then provide local status indication during installation and communication testing.
