Overview
Specification
| Parameter | Specification |
|---|---|
| Model / Part Number | DSTD108P / 3BSE018333R1 |

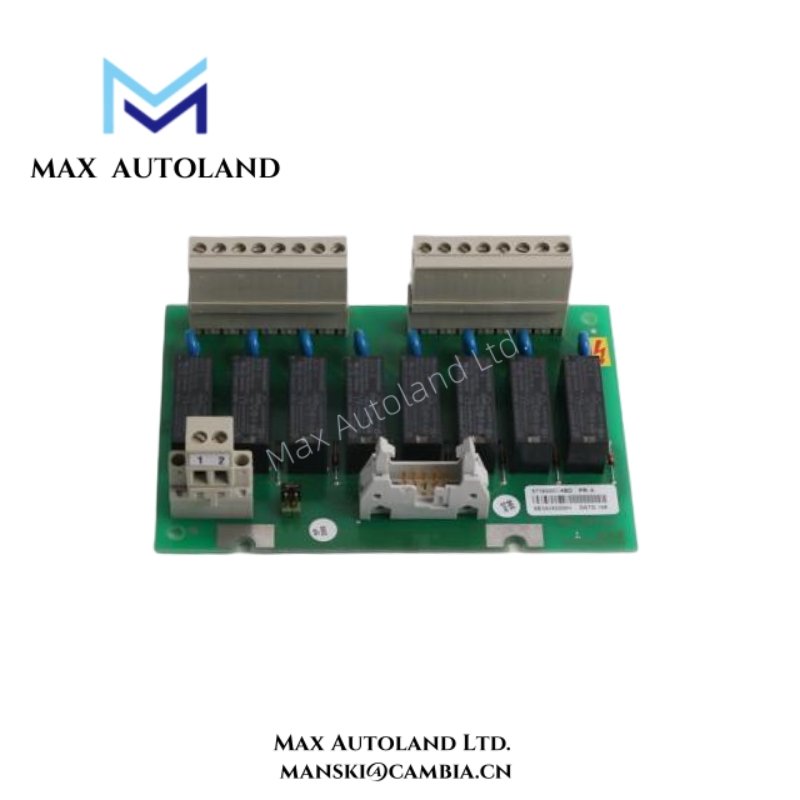

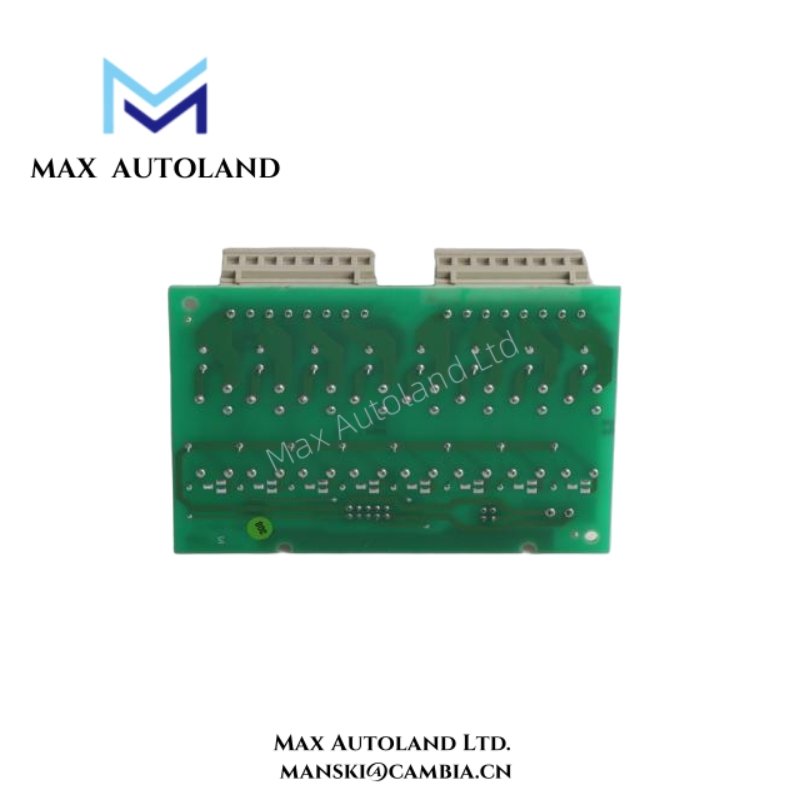

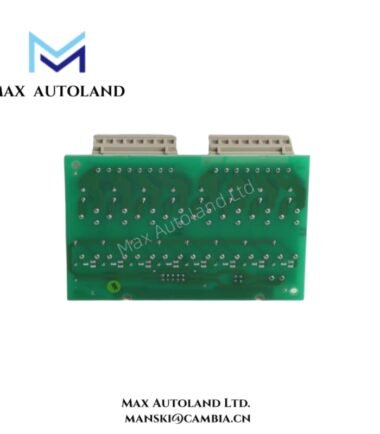

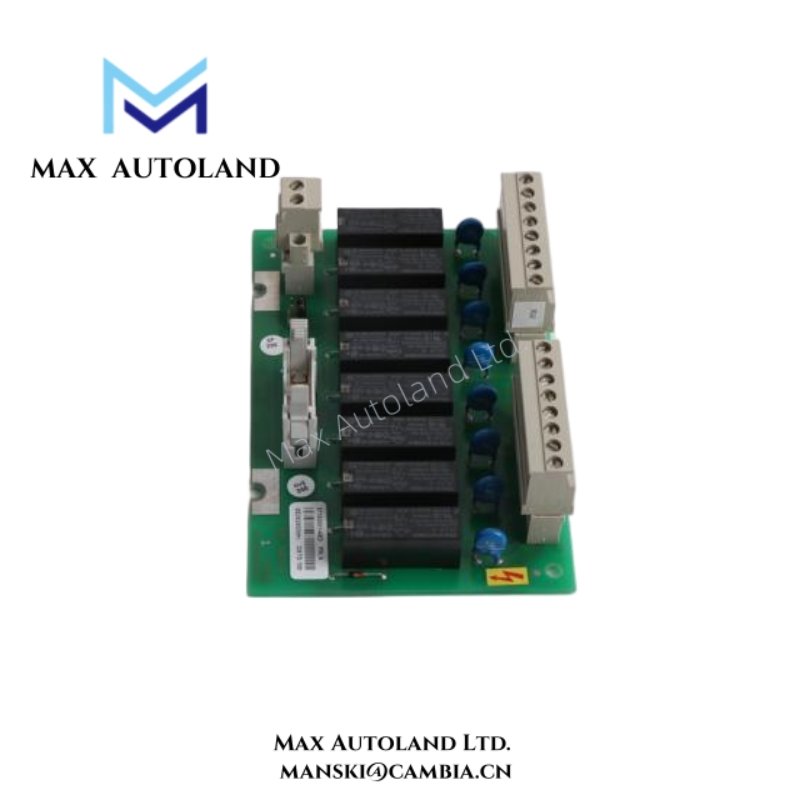

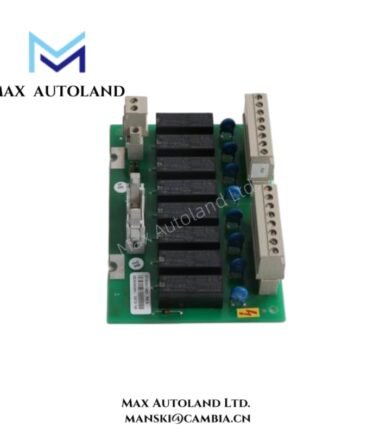

| Module Type | Connection Unit with 8 Relay Outputs |
| Relay Channels | 8 independent channels |
| Supported Load Voltage | 24–250 VAC or 24–250 VDC |
| Output Load Capability | Suitable for typical actuator / solenoid / valve / field‑device switching (per device specification) |
| Dimensions (L × W × H) | ~234 mm × 99 mm × 36 mm |
| Weight | ~0.168 kg |
| Mounting | DIN‑rail (35 mm standard) |
| Relay Protection | Per‑channel fuse (glass fuse, replaceable) for overcurrent protection |
| Operating Temperature Range | –20 °C to +60 °C (typical industrial range) |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity / Environment | 5‑95% RH non‑condensing, industrial grade environmental tolerance |
| Compatibility | Designed for use with ABB digital output modules (e.g. DSDO 115A), ABB Advant OCS / S100 / Symphony I/O systems |
| Application Role | Interface between control logic and field devices requiring higher voltage/current switching |
FAQ
A: It can switch AC or DC loads between 24 V and 250 V — suitable for solenoids, valves, alarms, motors, lighting, or other field devices requiring relay output.
Q: How many output channels does the module provide?
A: The module provides 8 independent relay output channels.
Q: Is the DSTD108P easy to install in control panels?
A: Yes — it uses standard DIN‑rail mounting and has a compact footprint for convenient panel installation.
Q: Does each channel have protection?
A: Yes — each channel is protected by a dedicated fuse, improving safety and fault isolation.
Q: With what systems is this module compatible?
A: It is designed for use with ABB digital output modules (e.g. DSDO 115A) and integrates with ABB Advant OCS / Symphony / S100 I/O control systems.
