Overview
Specification
| Parameter | Specification / Notes |
|---|---|

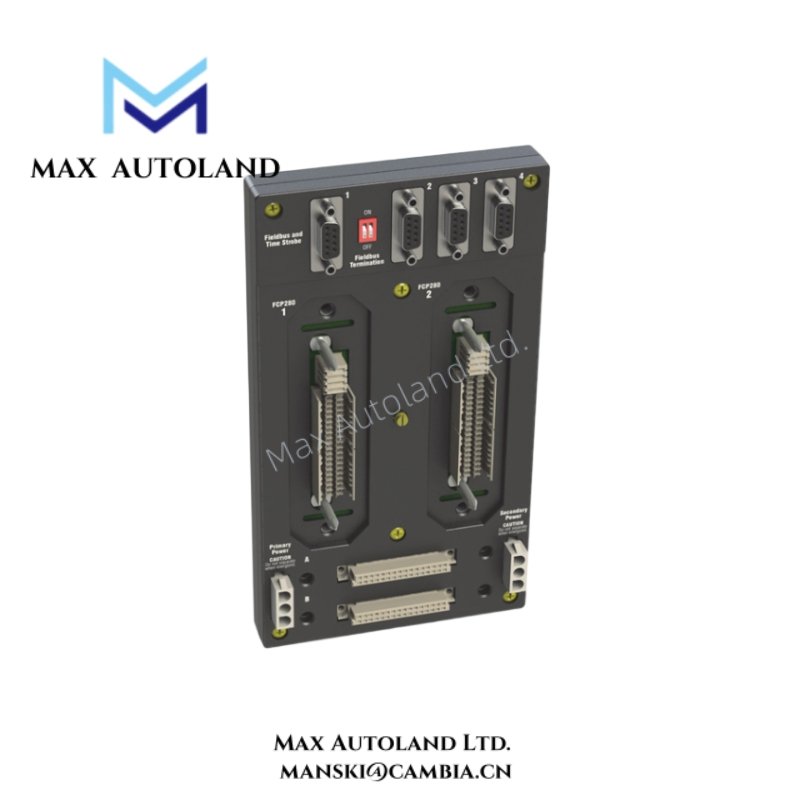

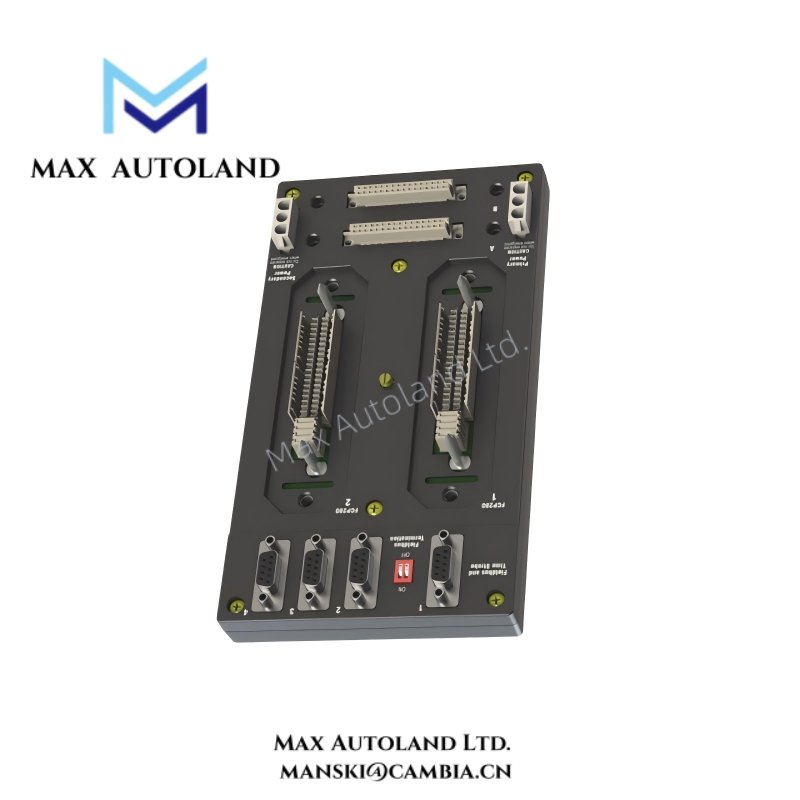

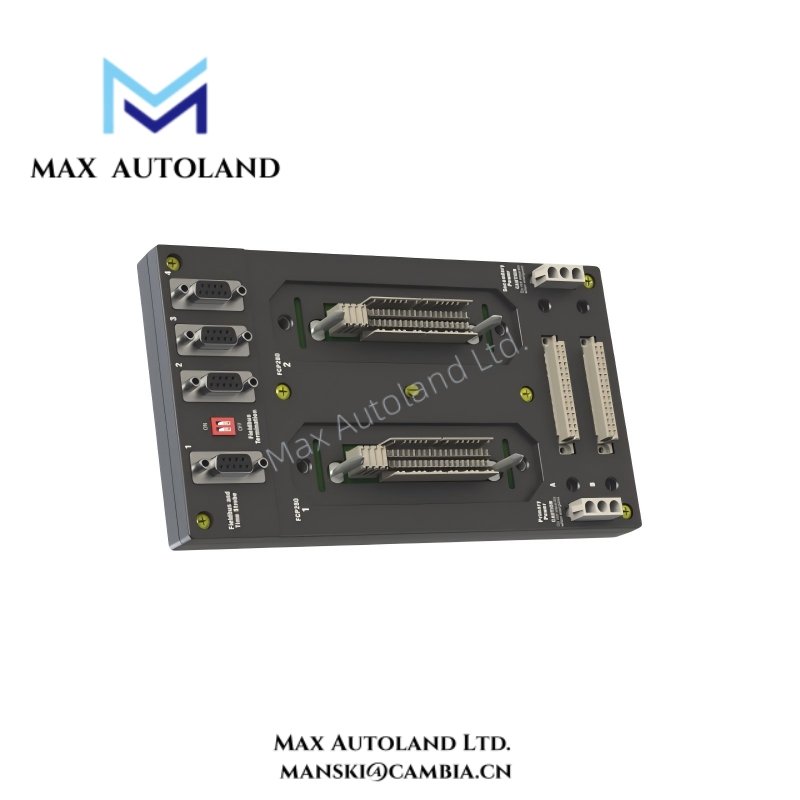

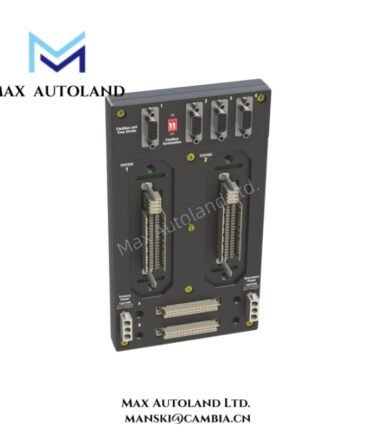

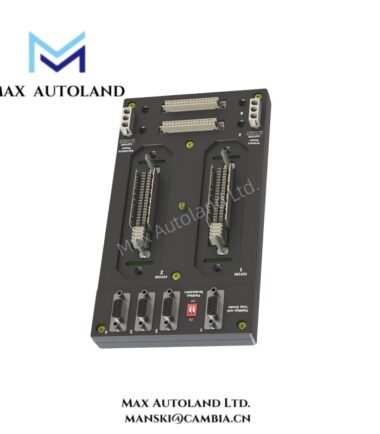

| Model Number | RH924YF |
| Module Role | Horizontal-mounted baseplate for FCP280 processor and associated modules |
| Compatible Modules | FCP280 controller, fieldbus I/O modules (FBMs), communication or adapter modules |
| Supported Fieldbus Modules | Up to 32 local FBMs; system capacity can expand with additional baseplates |
| Power Supply | 24 V DC redundant power input for processor and modules |
| Fieldbus / I/O Communication | HDLC-based fieldbus for FBM communication and field device integration |
| Mounting Orientation | Horizontal DIN-rail mounting for rack or panel installations |
| Material / Construction | Industrial-grade, vibration-resistant metal alloy suitable for harsh conditions |
| Environmental / Operating Conditions | Temperature: –20 °C to +60 °C; humidity: 5–95% non-condensing; industrial pollution rating Class G3 |
| Physical Dimensions (W×H×D) | Approx. 147 × 51.8 × 116 mm (empty baseplate) |
| Weight (Empty) | Approx. 0.8 kg |
| Redundancy / Reliability | Supports redundant 24 V DC power and fault-tolerant architecture |
| Maintenance / Service | Hot-swappable slots allow module replacement without system downtime |
FAQ
A: It can accommodate up to 32 fieldbus I/O modules alongside the FCP280 processor.
Q: Is the baseplate suitable for harsh industrial conditions?
A: Yes — it is vibration-resistant, EMI-tolerant, and suitable for industrial temperature ranges.
Q: Can modules be replaced without shutting down the system?
A: Yes — the horizontal baseplate allows hot-swappable module replacement.
Q: What mounting options are available?
A: Horizontal mounting on DIN-rails, racks, or panels is fully supported.
Q: Does it support all FCP280 modules?
A: It is compatible with standard FCP280 processors and fieldbus I/O modules.
Q: How does the baseplate simplify wiring?
A: Standardized slots and integrated connectors reduce wiring complexity and improve serviceability.
