Overview
Specification
| Parameter | Specification |
|---|---|

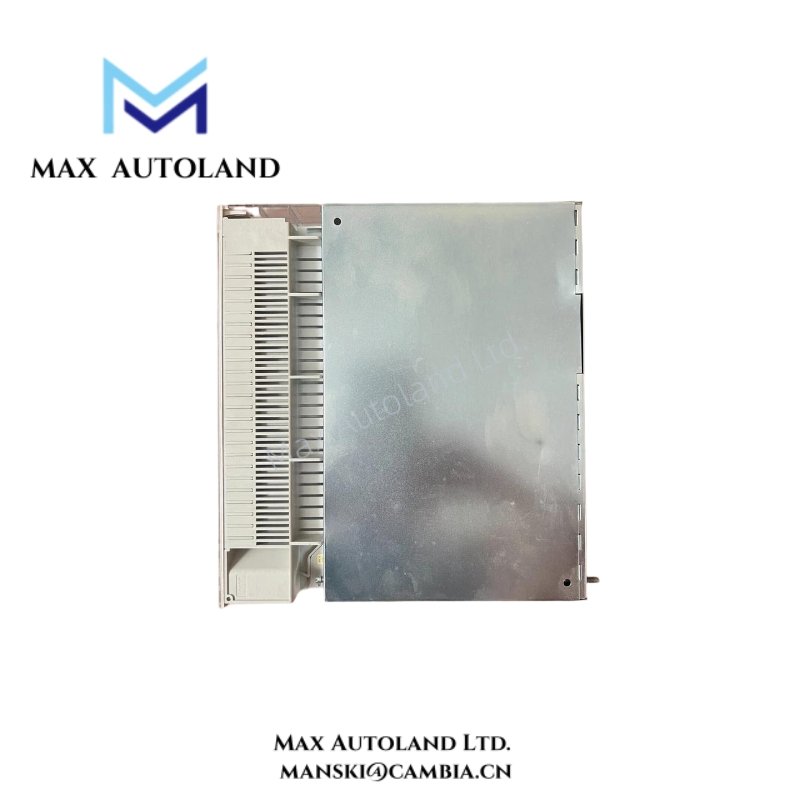

| Model Number | DP640 (3BHT300057R1) |
| Module Type | Rotational Speed Meter Module |
| Input Channels | 2 digital speed-meter inputs |
| Input Signal Type | 24 V DC or 5 V DC digital pulses |
| Maximum Input Frequency | 50 kHz |
| Input Current Range | ±13 mA |
| Rotation Direction Detection | Supported via second input channel |
| Overspeed Trip Outputs | 24 V DC solid-state + 60 V DC dry contact |
| Isolation | Fully opto-isolated inputs and outputs |
| Power Supply | Via Advant I/O backplane (24 V DC typical) |
| Mounting Type | Rack-mountable (Advant standard module size) |
| Dimensions (L × W × H) | 252 × 40 × 273 mm |
| Weight | 1.33 kg |
| Environmental Design | Industrial-grade, vibration-resistant, high EMI immunity |
FAQ
It supports input frequencies up to 50 kHz, allowing accurate monitoring of high-speed rotating machinery.
