Overview

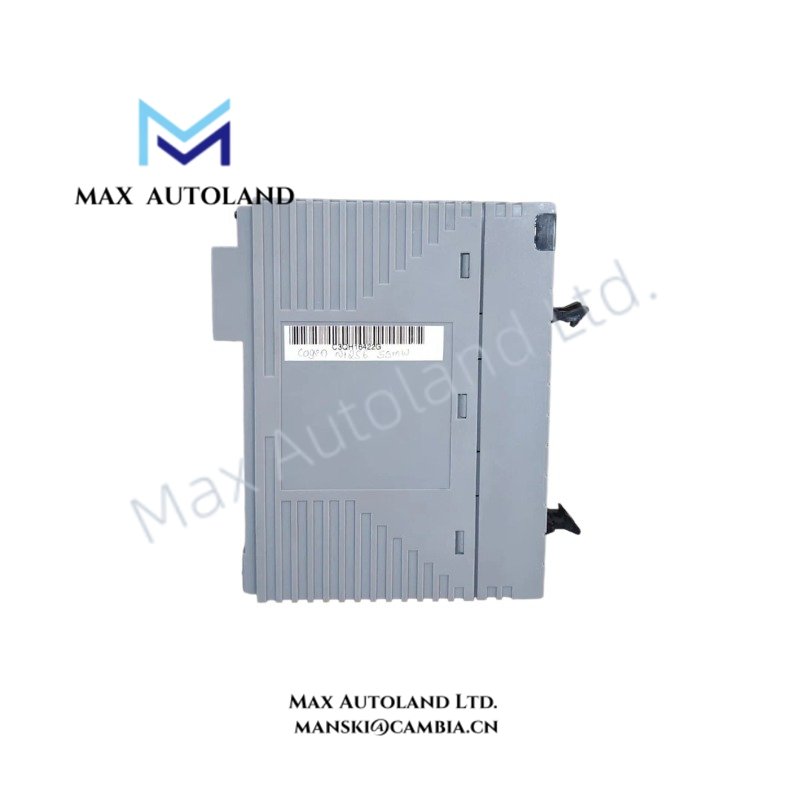

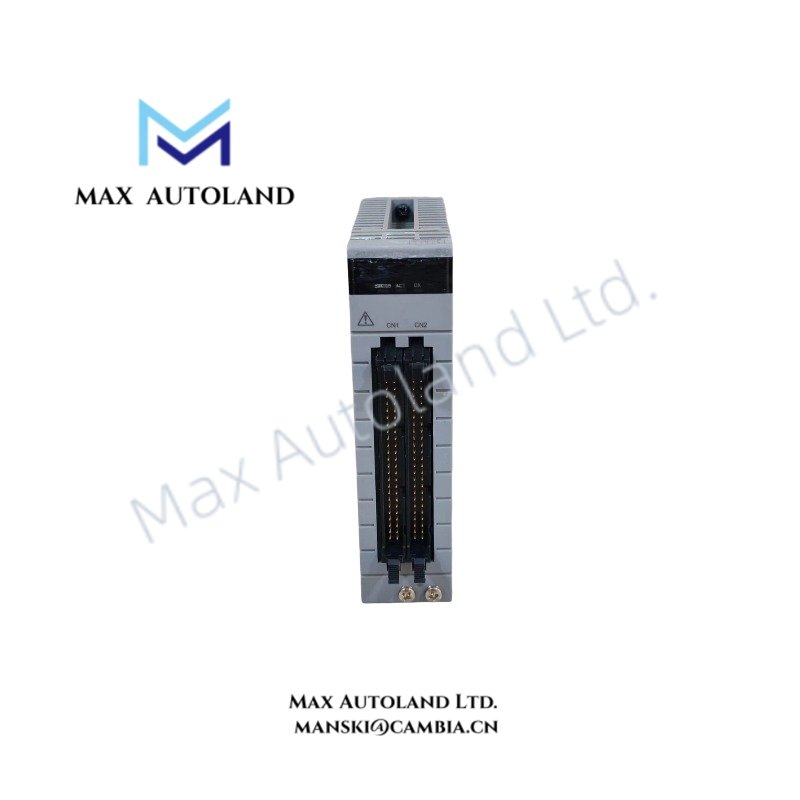

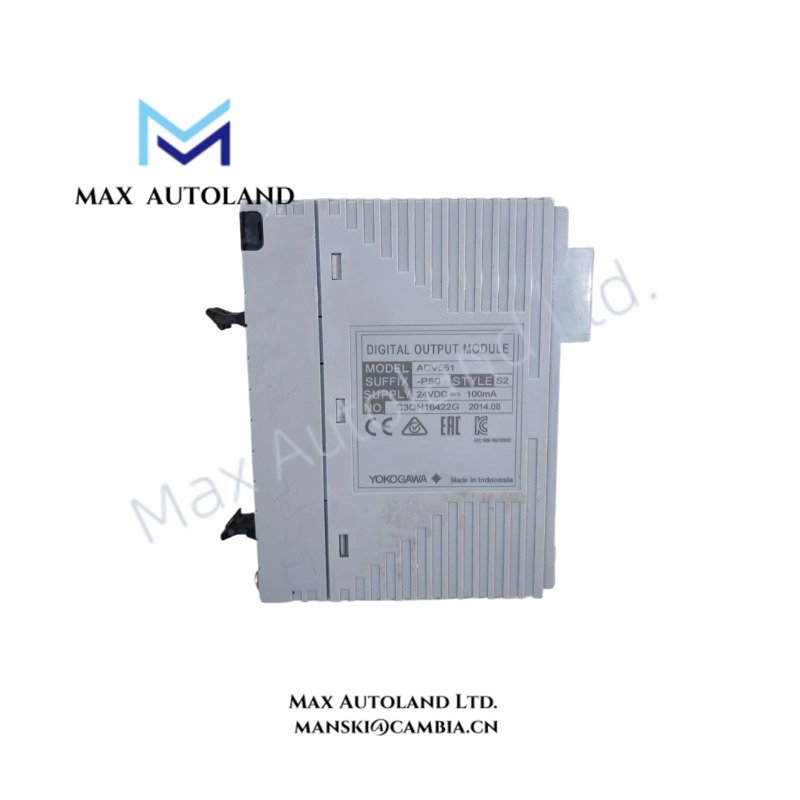

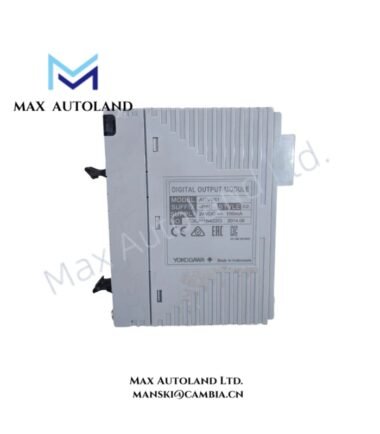

Configured for digital signal output execution in Yokogawa CENTUM VP FIO control platforms, the Yokogawa ADV561-P50 (ADV561-P50 Digital Output Module) provides direct electrical switching functions through ESB Bus Node Units and Field Control Units. The module supports installation in ANB10S, ANB10D, ANB11S, ANB11D, AFV30S, AFV30D, AFV40S, and AFV40D configurations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV561-P50 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| System Platform | CENTUM VP FIO |
| Installation Units | ESB Bus Node Unit ANB10S, ANB10D; Optical ESB Bus Node Unit ANB11S, ANB11D; Field Control Unit AFV30S, AFV30D, AFV40S, AFV40D |
| Output Function | Digital status output, pulse width output, time-proportioning ON/OFF output |
| Channel Assignment | Channel-by-channel function assignment |
| Supported Point Modes | SO, PW, TP |
| Communication Interface | FIO ESB Bus interface |
| Origin | Japan |
Yokogawa DCS I/O Signal Handling and Channel Isolation
The ADV561-P50 operates as a Yokogawa FIO digital output component for CENTUM VP distributed control systems. Therefore, it assigns output functions independently for each channel according to configured point modes.
The module supports Status Output (SO), Pulse Width Output (PW), and Time-Proportioning ON/OFF Output (TP). Additionally, the point mode selection determines terminal usage and output behavior.
Typical assignments include:
| Terminal Assignment | Function Mode | Description |
|---|---|---|
| Terminals 1 and 2 | PW | One pulse width output using two contiguous terminal numbers |
| Terminals 3 and 4 | TP | Two outputs using two contiguous terminal numbers |
| Terminals 5 and 6 | TP | Two outputs using two contiguous terminal numbers |
| Terminals 15 and 16 | PW | One pulse width output using two contiguous terminal numbers |
The module design follows Yokogawa process I/O architecture requirements, where signal routing, channel configuration, and field termination mapping remain controlled through the CENTUM VP engineering environment. Furthermore, proper channel assignment prevents incorrect field device operation during system configuration changes.
Frequently Asked Questions
Q: Which Yokogawa systems support the ADV561-P50 Digital Output Module?
A: The ADV561-P50 supports CENTUM VP FIO configurations with ESB Bus Node Units and Field Control Units including ANB10S, ANB10D, ANB11S, ANB11D, AFV30S, AFV30D, AFV40S, and AFV40D.
Q: What output functions can the ADV561-P50 execute?
A: The module executes digital status output, pulse width output, and time-proportioning ON/OFF output functions through configurable point modes.
Q: Does the ADV561-P50 require channel function assignment before operation?
A: Yes. Each channel requires point mode assignment to define the output function and corresponding terminal usage.
Field Installation Guidelines
- Install the ADV561-P50 only in specified Yokogawa FIO hardware assemblies.
- Verify ESB Bus Node Unit or Field Control Unit compatibility before mounting the module.
- Confirm terminal wiring according to the configured point mode before applying field power.
- Separate digital output wiring from high-voltage power cables to reduce electrical interference.
- Connect cable shields according to the site grounding standard and Yokogawa installation documentation.
- Verify channel assignments in the CENTUM VP engineering configuration before commissioning.
- Check field device response after output testing to confirm correct terminal mapping.
