Overview

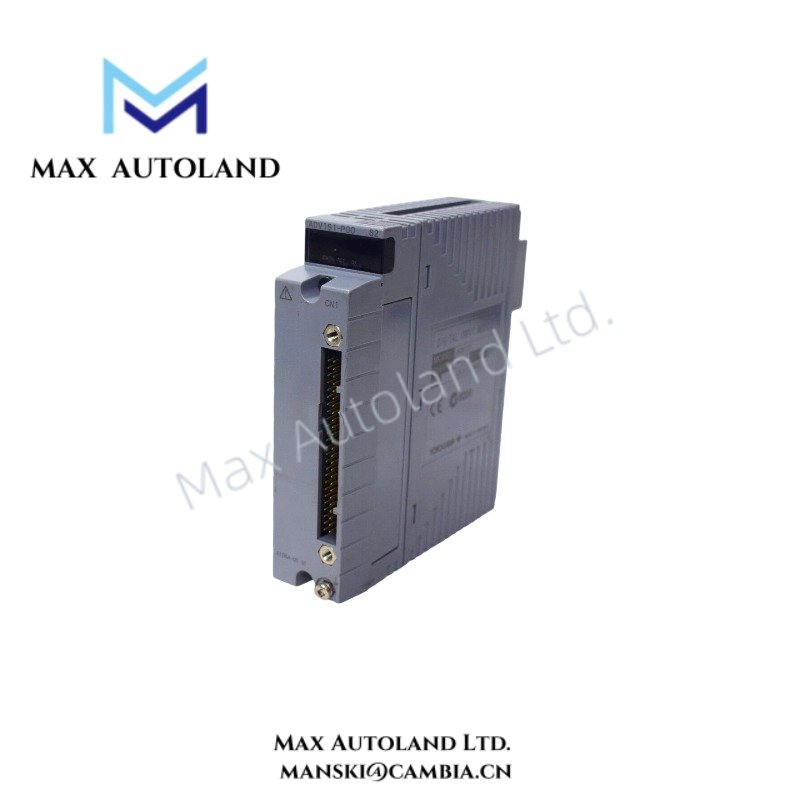

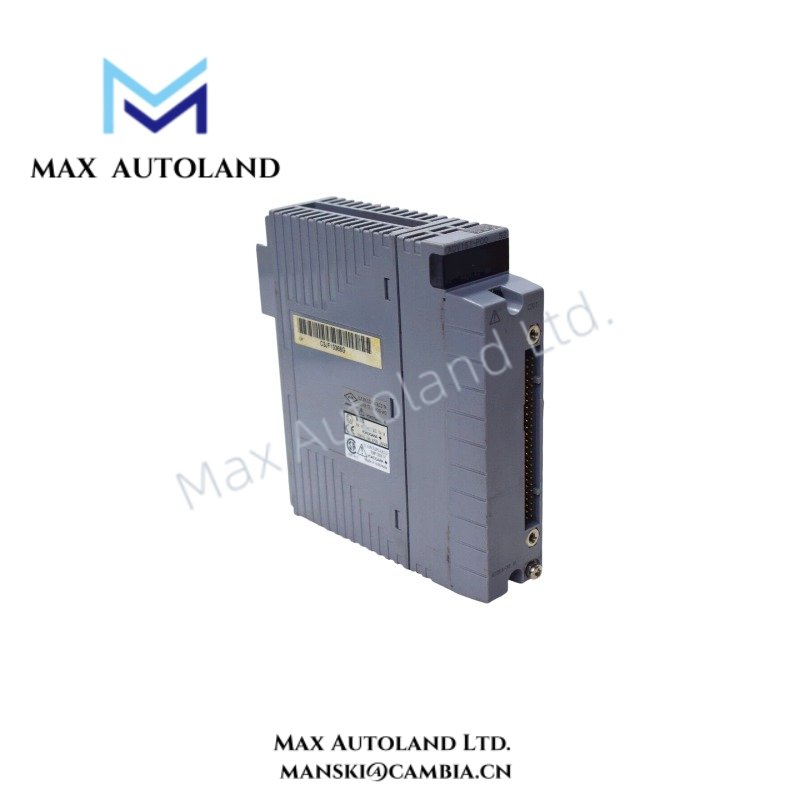

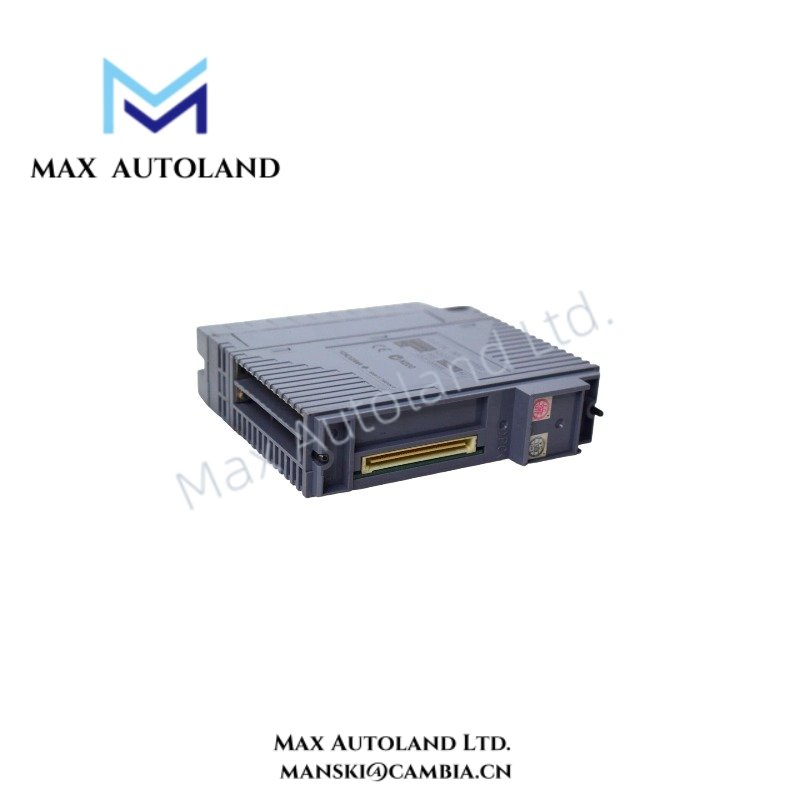

The Yokogawa ADV151-P00/D5A00, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for receiving isolated 24 VDC ON/OFF field signals within Yokogawa CENTUM VP and CENTUM CS 3000 FIO systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P00/D5A00 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Digital Input Module |
| System Compatibility | Yokogawa CENTUM VP / CENTUM CS 3000 FIO |
| Input Function | 32-channel isolated digital input |
| Input Signal Type | 24 VDC ON/OFF status input |
| Input Voltage Rating | 24 VDC |
| Input ON Voltage | 18 to 26.4 VDC |
| Input OFF Voltage | 5.0 VDC or less |
| Input Current | Approx. 4.1 mA +/-20% per channel at rated voltage |
| Maximum Input Voltage | 30.0 VDC |
| Input Response Time | 8 ms or less |
| Isolation Voltage | 2,000 VAC between input and system for 1 minute |
| Common Isolation | 500 VAC between commons for every 16 channels |
| Included Adapter | ATD5A-00 KS Cable Interface Adapter |
| Weight | Approx. 0.3 kg |
| Dimensions | Approx. 10.7 cm x 13 cm x 3.3 cm |
| Operating Temp | -20 deg C to +70 deg C |
| Operating Humidity | 5% to 95% RH, non-condensing |
Process Control Signal Isolation and DCS Interface
The ADV151-P00/D5A00 integrates isolated digital signal acquisition for Yokogawa FIO architectures. It accepts field ON/OFF signals from switches, pushbuttons, and proximity devices, then transfers status data to the control system through the module interface.
Additionally, the module supports channel-to-channel isolation characteristics required for discrete field monitoring. The isolated input structure reduces electrical interference between external devices and internal controller circuits.
The Yokogawa FIO design supports distributed I/O installation, while the module provides direct acquisition of discrete process states. Furthermore, the ATD5A-00 KS Cable Interface Adapter enables connection between the module and the associated field wiring system.
Frequently Asked Questions
Q: Does the ADV151-P00/D5A00 support both sink and source input wiring methods?
A: Yes. The module accepts 24 VDC digital input signals with sink/source compatibility according to the connected field device wiring configuration.
Q: What isolation function does the module provide?
A: The module provides isolation between field input circuits and the system side, with 2,000 VAC withstand voltage between input and system for 1 minute.
Q: What interface adapter is included with this model?
A: The /D5A00 suffix indicates the module package includes the ATD5A-00 KS Cable Interface Adapter for 32-channel digital connections.
Field Installation Guidelines
Install the ADV151-P00/D5A00 in the designated Yokogawa FIO node position according to the system hardware configuration manual.
Connect field digital input wiring using appropriate terminal interfaces and maintain separation between signal cables and high-voltage power conductors. Use shielded cables where required by the site grounding standard.
Terminate cable shields according to the plant grounding specification. Avoid parallel routing with high-current switching lines to reduce induced electrical noise.
Verify input polarity, field voltage level, and terminal assignments before applying power. Confirm that all connected field devices operate within the specified input voltage range.
