Overview

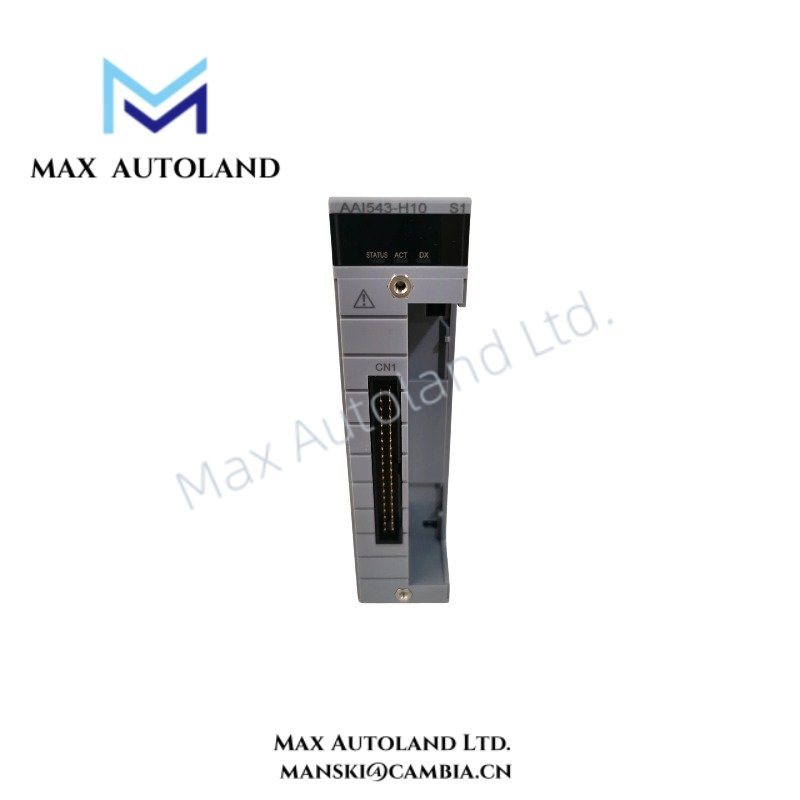

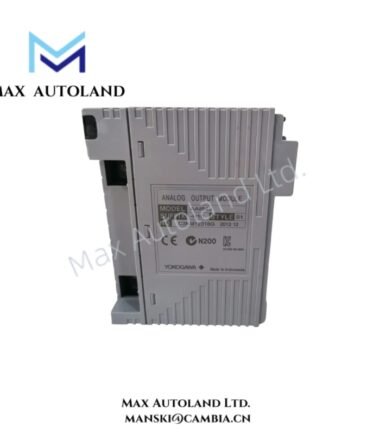

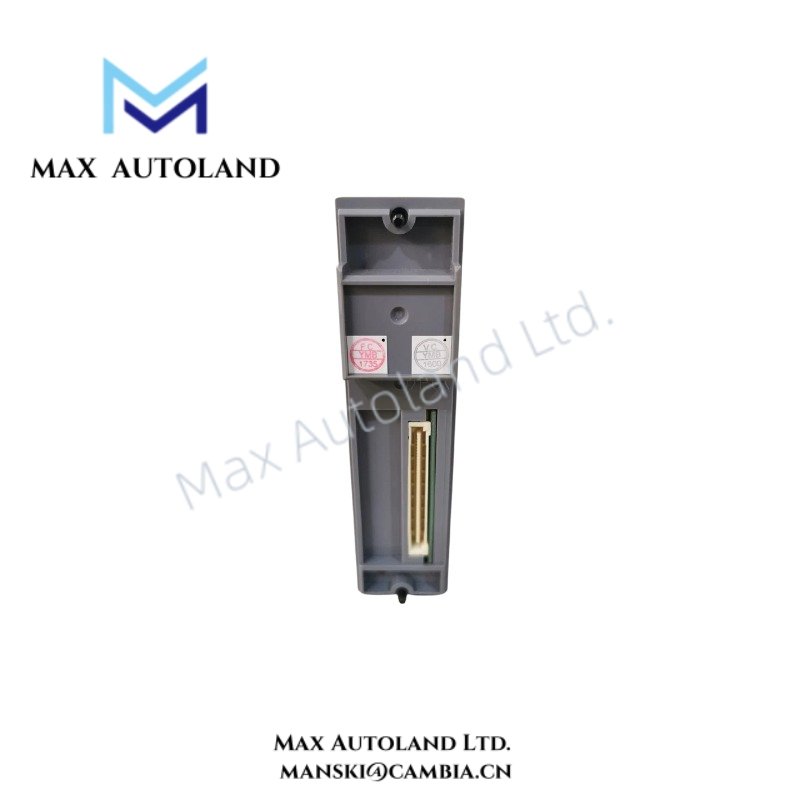

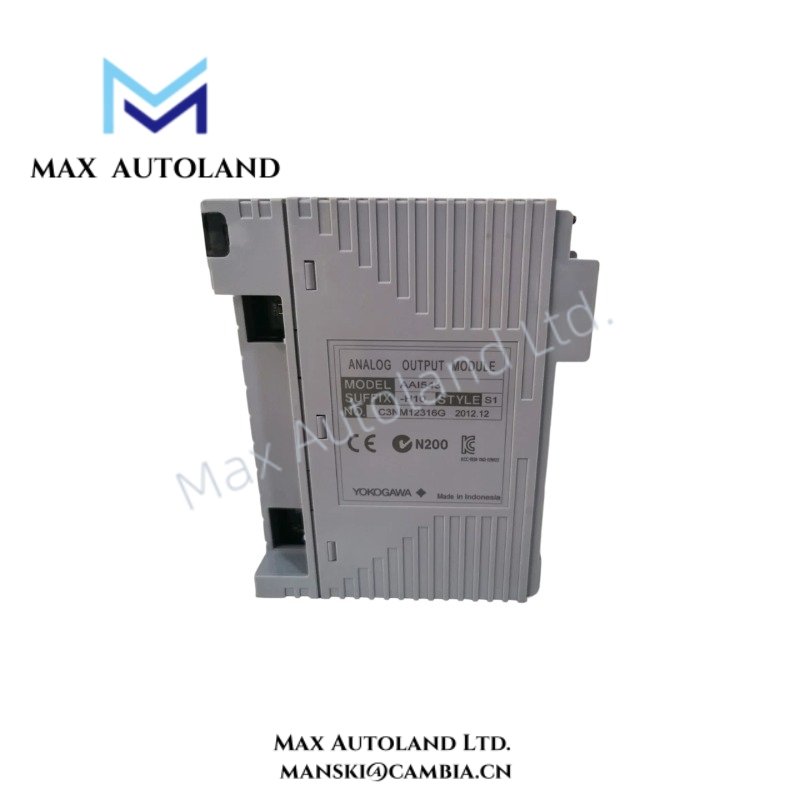

Configured for isolated analog current signal execution in Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control System platforms, the Yokogawa AAI543-H10 (AAI543 Analog Output Module) provides direct physical/electrical output control through 16-channel 4-20 mA DC interfaces with HART communication support.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H10 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | 16-channel Analog Output Module |
| Function | Isolated analog current output module |
| System Compatibility | CENTUM VP / CENTUM CS 3000 DCS |
| Output Channels | 16 channels, isolated |
| Output Signal | 4-20 mA DC |
| Allowable Load Resistance | 0 to 750 ohm |
| Data Update Period | 10 ms |
| Accuracy | +/- 48 uA (+/- 0.1% of full scale) |
| Circuit-Open Detection | Less than 0.65 mA |
| Withstanding Voltage | 1,500 VAC between output and system for 1 minute |
| Temperature Drift | +/- 16 uA / 10 deg C |
| HART Communication | Supported, superimposed on 4-20 mA signal |
| Redundancy Configuration | Dual-redundant operation supported with identical suffix codes |
| External Connection | Pressure clamp terminal, MIL connector cable, or KS1 dedicated cable |
| Weight | Approx. 0.4 kg |
| Power Consumption | 230 mA at 5 VDC; 540 mA at 24 VDC |
4-20 mA HART Loop Protocol and Channel Isolation
The AAI543-H10 applies Yokogawa DCS analog output technology with isolated 4-20 mA current loops and integrated HART communication. Therefore, the module can transmit analog control signals while maintaining digital communication with compatible smart field devices.
The module supports channel-to-channel isolation through independent output circuits. Additionally, the HART layer allows device parameter access, configuration exchange, and diagnostic data transmission through the same current loop without external communication hardware.
The module also supports dual-redundant configurations. In redundant installations, matching module suffix configurations allow standby operation and system-level output continuity during module replacement or fault conditions.
Frequently Asked Questions
Q: Does the AAI543-H10 support HART communication on all output channels?
A: Yes. The module supports HART communication superimposed on the 4-20 mA DC output signal channels.
Q: What type of field devices can connect to the AAI543-H10 outputs?
A: The module connects to field control devices requiring 4-20 mA DC signals, including control valves, actuators, and variable speed drive interfaces.
Q: Can the AAI543-H10 operate in a redundant configuration?
A: Yes. The module supports dual-redundant configurations when installed with matching suffix code modules.
Field Installation Guidelines
- Install the module according to Yokogawa CENTUM VP or CENTUM CS 3000 hardware configuration requirements.
- Verify terminal assignments before connecting field wiring to prevent incorrect current loop connections.
- Use shielded signal cables for analog output wiring in environments with electrical noise sources.
- Connect cable shields according to the plant grounding design to reduce electromagnetic interference.
- Separate analog signal wiring from high-voltage power cables and high-current switching circuits.
- Confirm HART communication wiring integrity before commissioning smart field devices.
- Check redundancy configuration settings before placing paired modules into service.
