Overview

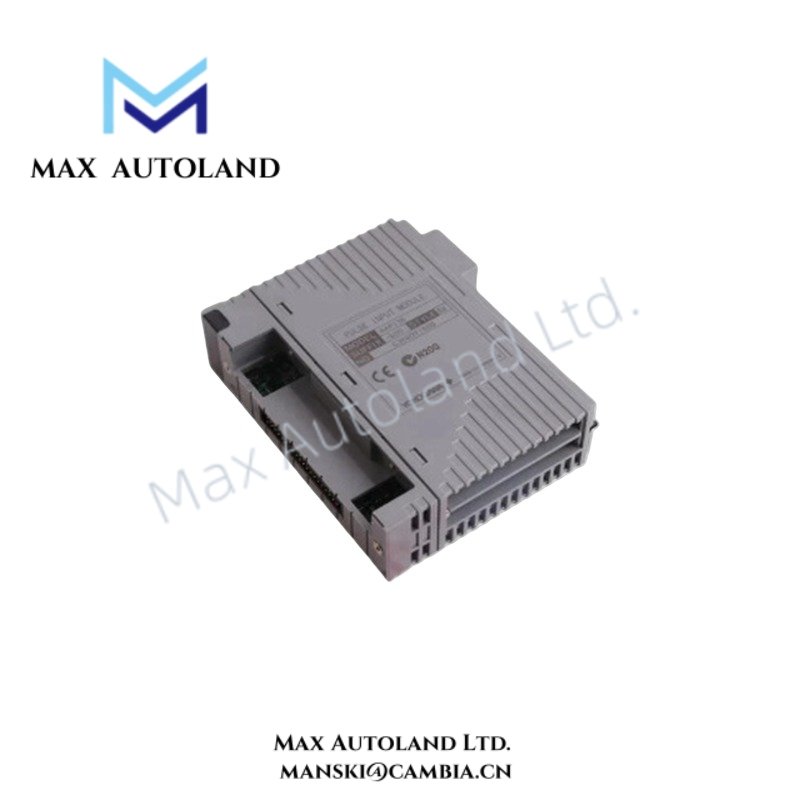

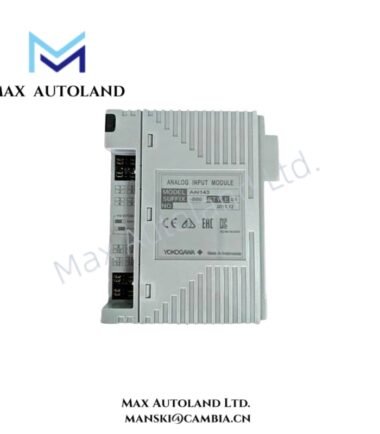

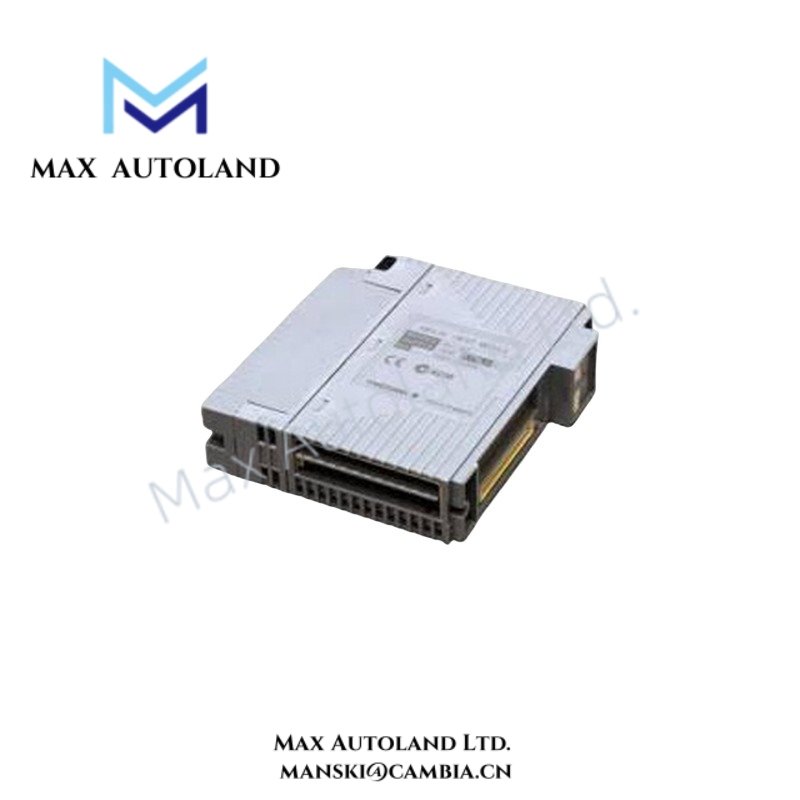

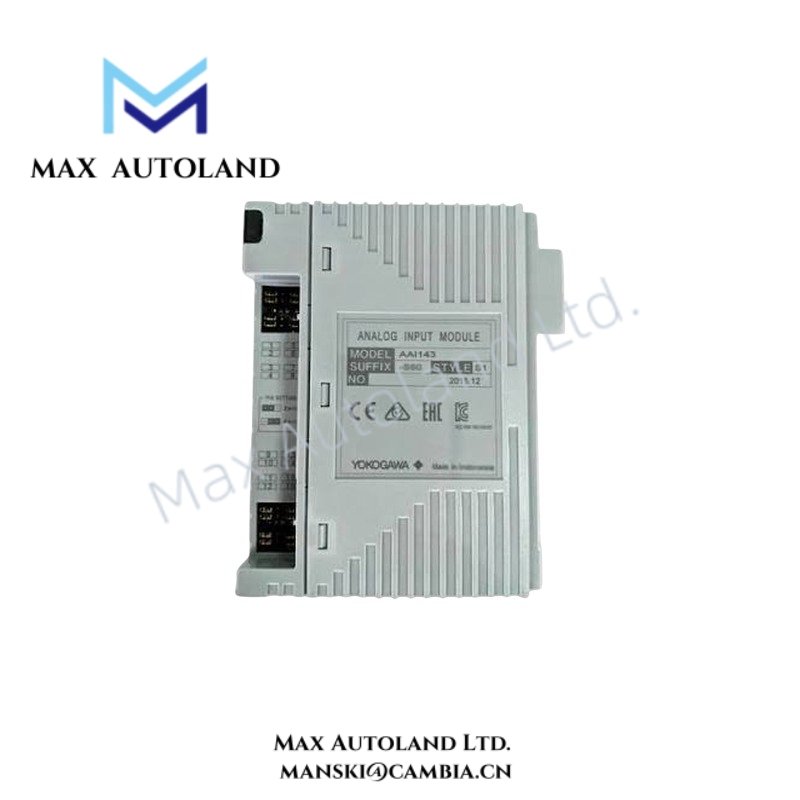

Configured for isolated 4-20 mA signal acquisition in Yokogawa CENTUM VP and CENTUM CS 3000 DCS platforms, the Yokogawa AAI143-S50/A4S00 (AAI143 Analog Input Module) provides direct conversion of field transmitter current signals into system process data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-S50/A4S00 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | 16-channel Isolated Analog Input Module |
| Input Channels | 16 isolated channels |
| Input Signal | 4-20 mA DC |
| Allowable Input Current | 24 mA |
| Data Update Period | 10 ms |
| Input Resistance | Power ON: 270 ohm at 20 mA to 350 ohm at 4 mA; Power OFF: >= 500 kohm |
| Accuracy | +/- 16 uA |
| Temperature Drift | +/- 16 uA / 10 deg C |
| Transmitter Supply Voltage | 19.0 VDC to 25.5 VDC |
| Output Current Limit | 25 mA |
| Transmitter Wiring | Configurable for 2-wire and 4-wire transmitters |
| Isolation Voltage | 1500 VAC for 1 minute between input channels and system logic |
| Redundancy Configuration | Dual-redundant mounting in adjacent slots supported |
| Terminal Type | Pressure clamp terminal block ATA4S-00 |
| Weight | Approx. 0.3 kg |
| Power Consumption | 5 VDC: 230 mA; 24 VDC: 540 mA |
DCS Analog Signal Isolation and HART Loop Compatibility
The AAI143-S50/A4S00 processes standard 4-20 mA DC field signals from industrial transmitters and provides isolated channel conversion for CENTUM VP and CENTUM CS 3000 systems. Each input channel maintains electrical separation from the system logic side, which reduces interference during multi-point measurement.
In addition, the module supports transmitter power supply distribution for 2-wire and 4-wire devices. Therefore, field instruments can connect through configurable channel wiring without external signal conversion hardware.
The module design follows Yokogawa process control I/O architecture, supporting stable analog acquisition, channel isolation, and continuous process monitoring. The pressure clamp terminal block ATA4S-00 provides direct field wiring termination for installed systems.
Frequently Asked Questions
Q: Does the AAI143-S50/A4S00 support isolated input channels?
A: Yes. The module provides 16 isolated analog input channels with electrical isolation between field inputs and system logic.
Q: Can the module operate with both 2-wire and 4-wire transmitters?
A: Yes. Each channel supports configurable wiring for 2-wire and 4-wire transmitter connections.
Q: Does the module support redundant installation?
A: Yes. The module supports dual-redundant configuration when installed in adjacent slots according to the Yokogawa system configuration requirements.
Field Installation Guidelines
- Install the module in the designated Yokogawa FIO slot position within the CENTUM VP or CENTUM CS 3000 system configuration.
- Connect field 4-20 mA signal wiring through the ATA4S-00 pressure clamp terminal block.
- Separate analog signal cables from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points on signal shields.
- Verify transmitter polarity, loop resistance, and external power conditions before applying system power.
- Confirm channel configuration parameters in the DCS engineering environment before commissioning field instruments.
