Overview

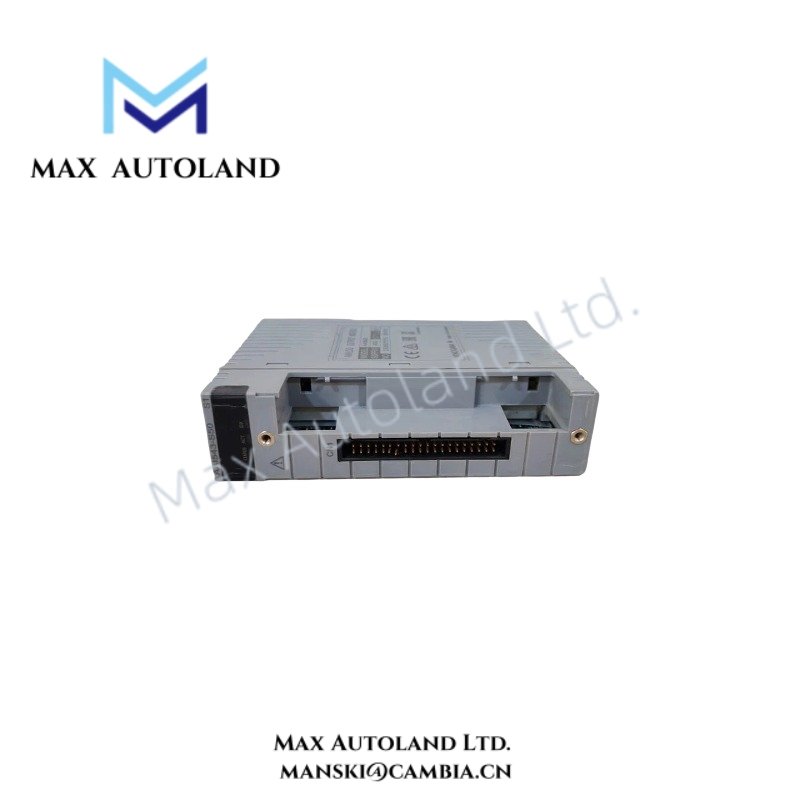

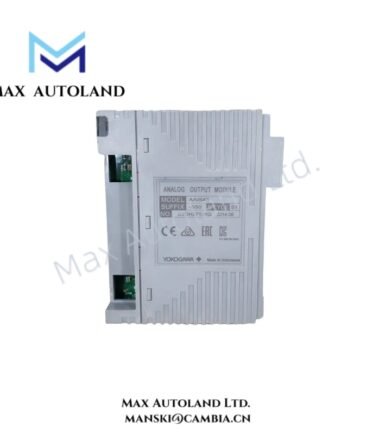

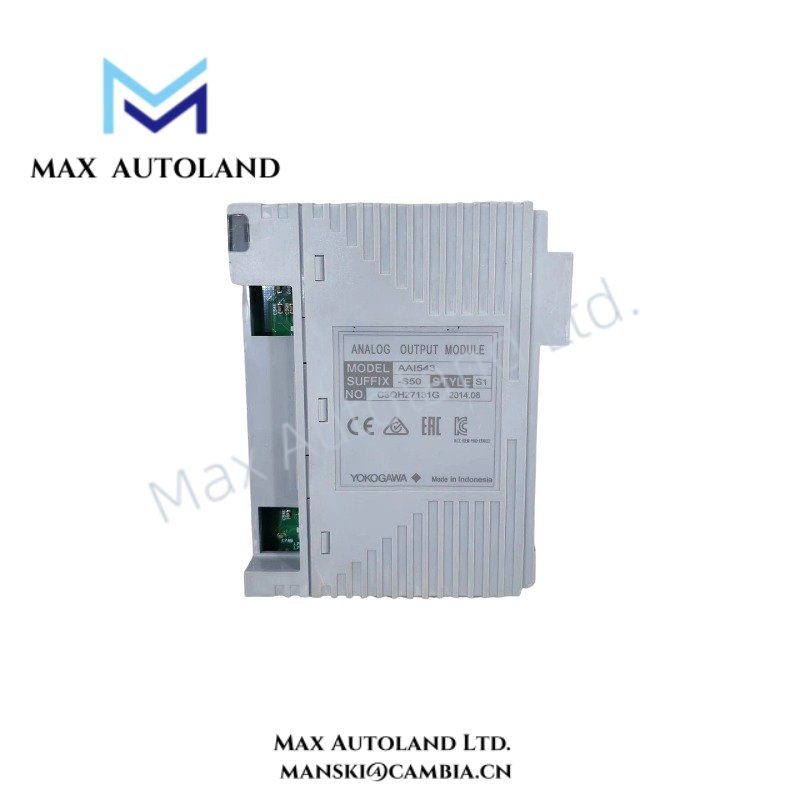

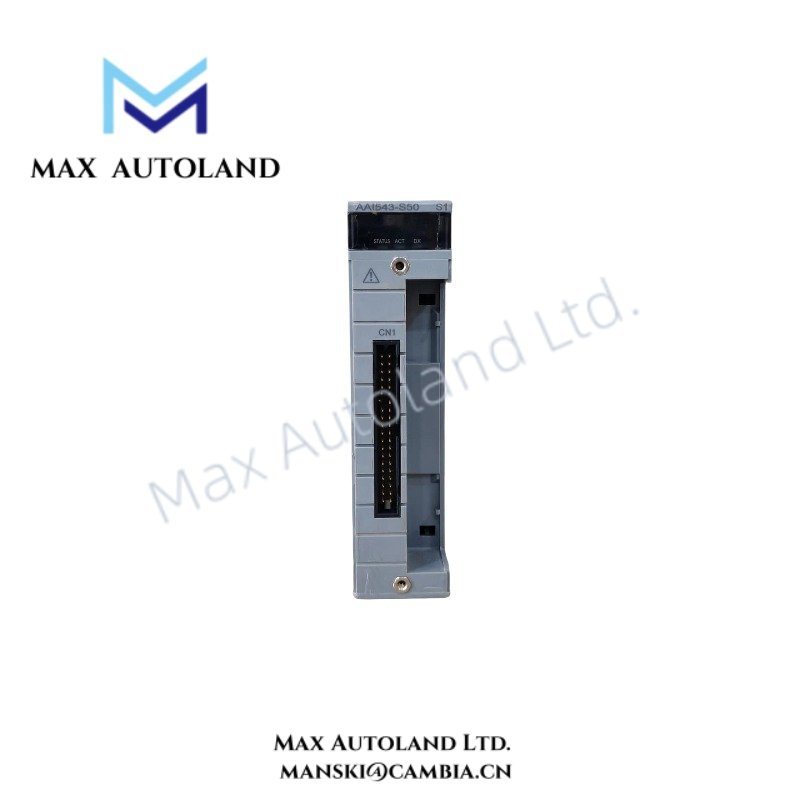

The Yokogawa AAI543-S50/A4S10, also cataloged as the AAI543 Analog Output Module, provides isolated 4-20 mA current output execution within Yokogawa CENTUM VP and CENTUM CS 3000 Field Control Station systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-S50/A4S10 |
| Brand | Yokogawa |
| Product Type | Isolated Analog Output Module |
| Origin | Japan |
| Number of Output Channels | 16 channels |
| Output Signal | 4-20 mA DC |
| Isolation | Channel output isolation |
| Withstanding Voltage | Between output and system: 1500 VAC for 1 minute |
| Allowable Load Resistance | 0 to 750 ohm |
| Circuit Open Detection | Less than 0.65 mA |
| Accuracy | +/-48 uA |
| Data Update Period | 10 ms |
| Ambient Temperature Drift | +/-16 uA/10 deg C |
| Maximum Current Consumption | 230 mA at 5 VDC, 540 mA at 24 VDC |
| Weight | Approx. 0.40 kg |
| External Connection | Pressure clamp terminal, MIL connector cable, dedicated KS1 cable |
| HART Communication | Available |
| Redundant Configuration | Supports dual-redundant configuration |
4-20 mA HART and Channel Isolation Function
The Yokogawa AAI543-S50/A4S10 integrates isolated current output channels for process control signal transmission. Each channel generates a 4-20 mA output signal and maintains electrical separation between field circuits and system circuits.
Furthermore, the module supports HART communication, which allows digital communication over the analog current loop. The isolated design reduces interference between output channels and improves signal separation in multi-loop control applications.
The module supports redundant operation configurations with standard switch-over response, while compatible suffix variants provide fast switch-over performance for systems requiring reduced transition time.
Frequently Asked Questions
Q: How many analog output channels does the AAI543-S50/A4S10 provide?
A: The AAI543-S50/A4S10 provides 16 isolated analog output channels, each transmitting 4-20 mA current signals.
Q: Does the module support HART communication?
A: Yes. The AAI543-S50/A4S10 supports HART communication through the 4-20 mA output loop interface.
Q: What connection methods are available for field wiring?
A: The module supports pressure clamp terminals, MIL connector cables, and dedicated KS1 cable connections according to the selected hardware configuration.
Field Installation Guidelines
Install the AAI543-S50/A4S10 module according to Yokogawa FIO system installation requirements. Confirm the correct base unit connection and verify the module address configuration before applying power.
Use shielded cables for analog current signal wiring when required by the installation environment. Connect cable shields according to the site grounding design to minimize electrical noise coupling.
Separate analog output wiring from high-power cables and switching circuits. Verify terminal tightening, cable routing, and connector seating before commissioning.
For redundant configurations, check the matching hardware suffix and confirm that both modules use compatible configuration settings before system startup.
