Overview

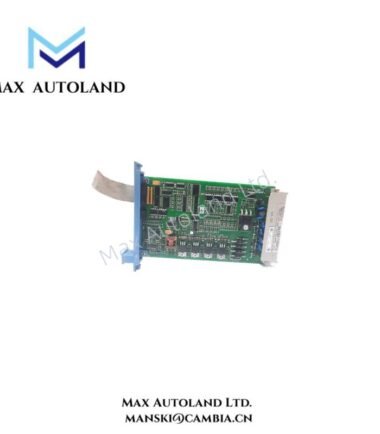

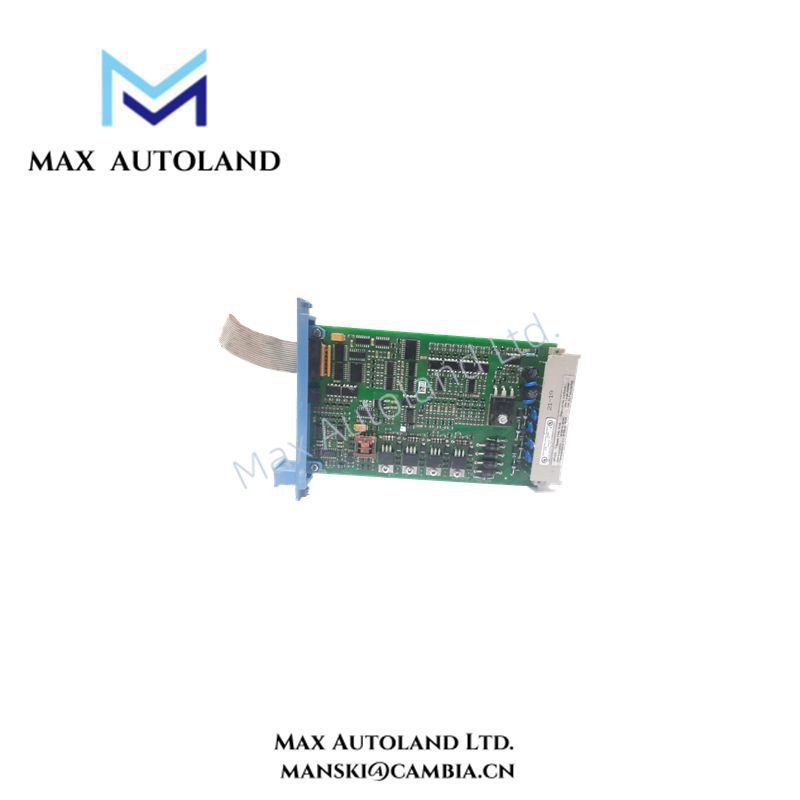

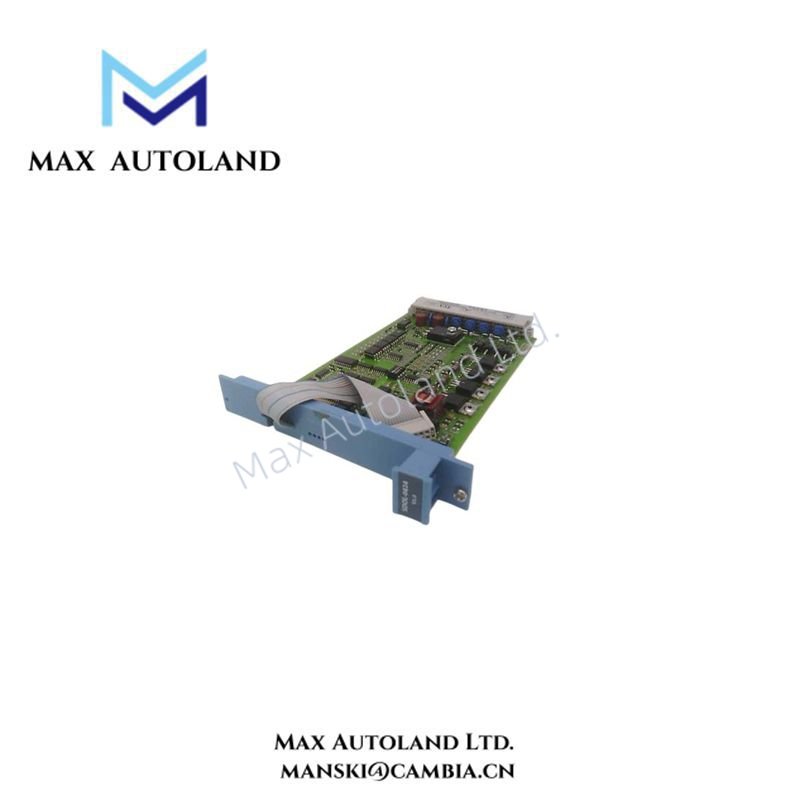

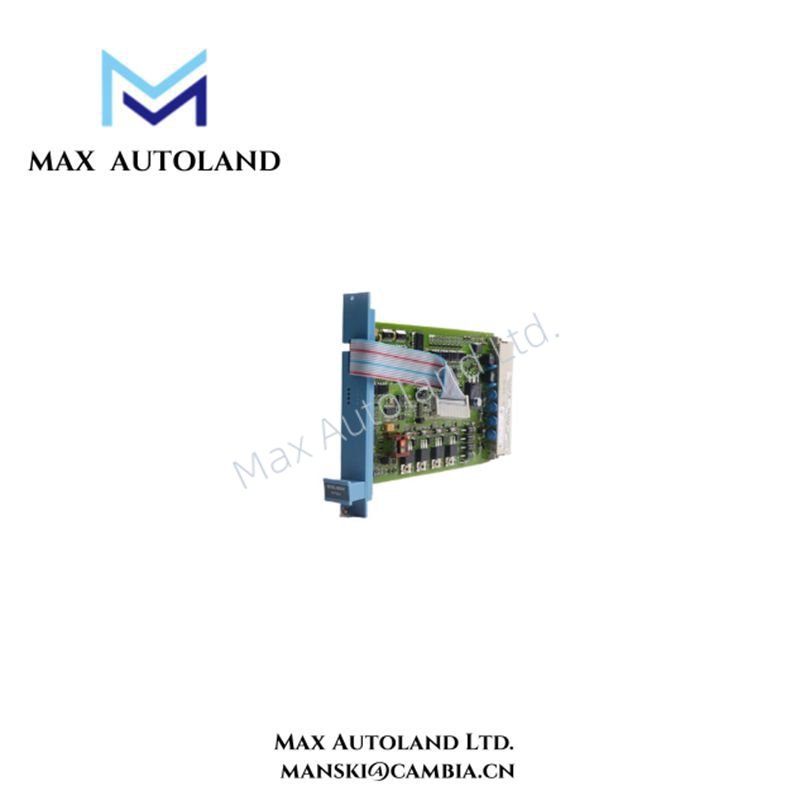

The Honeywell FC-SDOL-0424 is a digital output module in the FSC / Safety Manager series, providing four independent 24 VDC solid-state output channels. Each channel drives up to 1 A, delivering reliable control for industrial devices in safety-critical environments. Additionally, the module continuously monitors the loop, detecting wire breaks and short circuits, which enhances overall system reliability.
The loop-monitored digital output module SDOL-0424 features four 24 V DC, 1 A channels capable of driving loads up to 24 W. The maximum total module load reaches 3.6 A. These channels support both resistive and inductive loads, and each inductive output includes a suppression diode to prevent voltage spikes. This design ensures safe and efficient operation in industrial automation systems.
Specification
| General | Type numbers: | FS-SDOL-0424 |
| FC-SDOL-0424 | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Space requirements: | 4 TE,3HE(=4HP,3U) | |
| Power | Power requirements: | 5V DC,15 mA |
| 24V DC internal,50 mA | ||
| 24VDC external,15 mA(without output load) | ||
| Output | Number of output channels: | 4 |
| Output specification: | 24VDC solid-state source,short circuit proof | |
| Maximum channel current: | 1A | |
| Maximum total module load: | 3.6A(module dissipationlimit) | |
| Maximum load inductance: | 0.5H | |
| Maximum load capacitance: | 1μF | |
| Top of overload detection: | >100 | |
| Cold resistance lamp: | >200 | |
| Voltage drop: | <1.3V at 1A | |
| Off current: | <0.1 mA | |
| Current sense voltage drop: | <1Vat1A | |
| WDG input current: | 4 mA |
