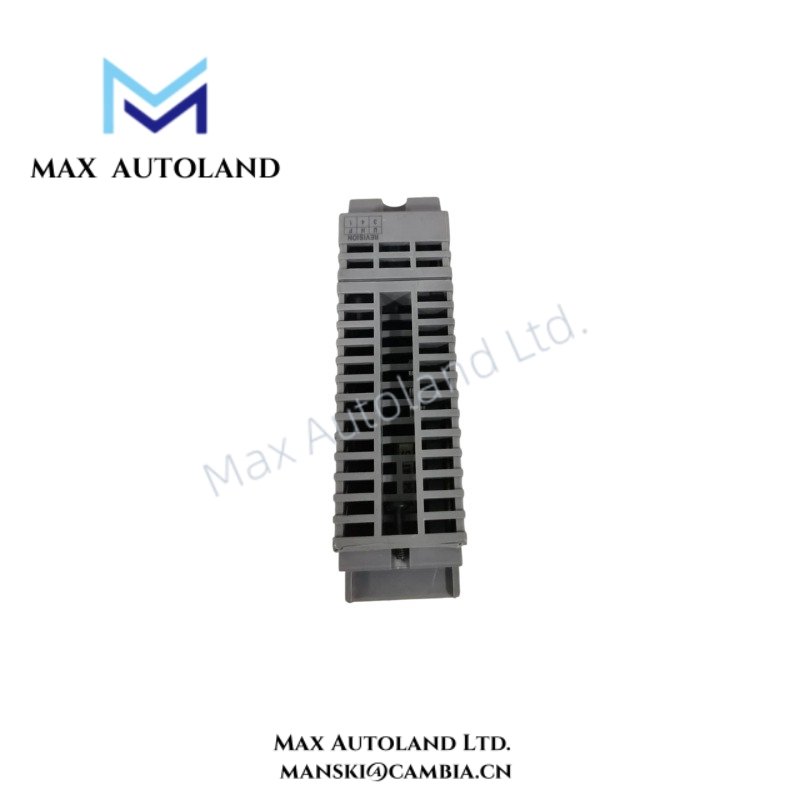

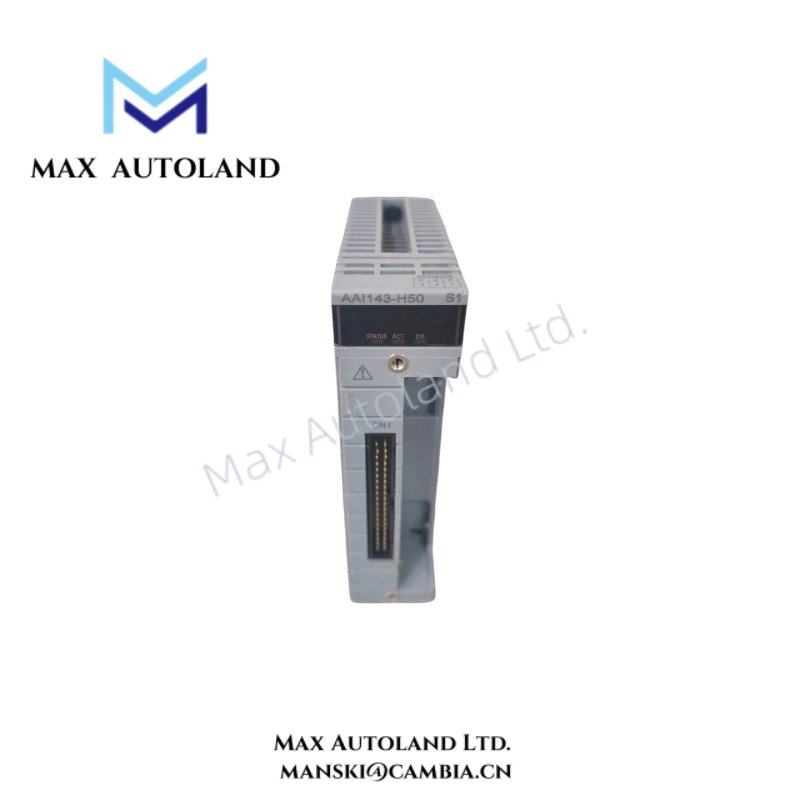

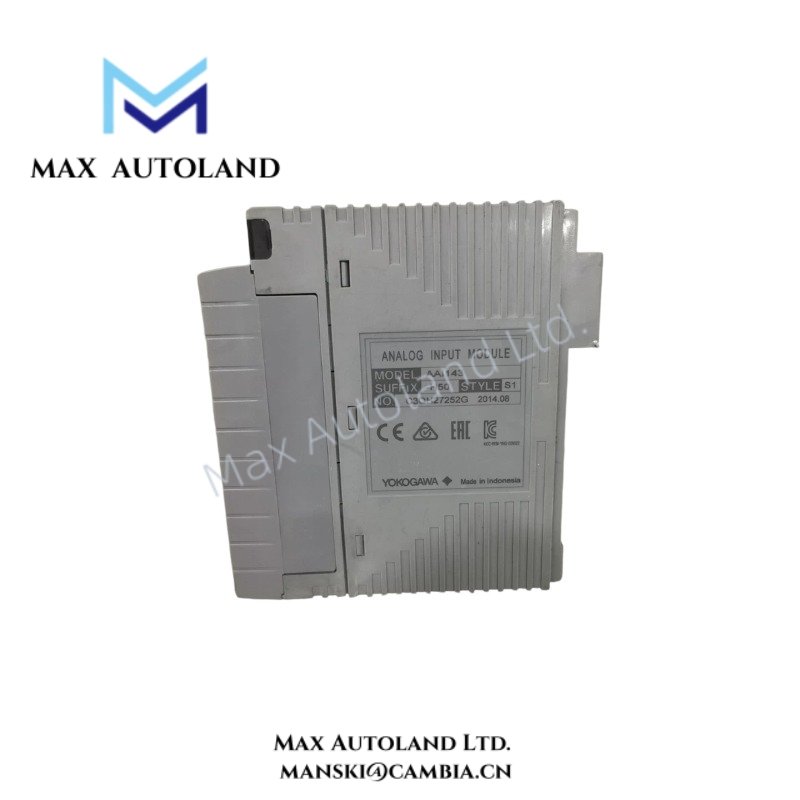

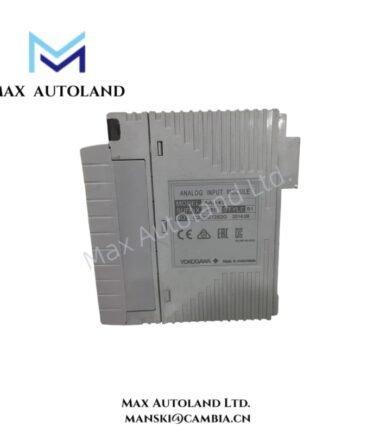

AAI143-H50/A4S10 Yokogawa 16-Channel Analog Input Module

Overview

Configured for isolated 4-20 mA DC signal acquisition in Yokogawa CENTUM CS 3000 and CENTUM VP DCS platforms, the Yokogawa AAI143-H50/A4S10 (AAI143 Analog Input Module) receives signals from 2-wire or 4-wire transmitters and supports HART communication. The module provides galvanic isolation between field input circuits and the system side and supports dual-redundant configurations.

Hardware Specifications

4-20 mA HART and Channel Isolation

The AAI143-H50/A4S10 processes 4-20 mA DC transmitter signals across 16 isolated channels. Each input circuit supports transmitter signal acquisition while the module maintains galvanic isolation between field circuits and the system side.

The H suffix specifies digital communication through the HART protocol. Therefore, the module can process the analog current signal while supporting HART-based digital communication on compatible transmitter loops.

The specified input resistance varies with operating state. During power-on operation, resistance ranges from 270 ohm at 20 mA to 350 ohm at 4 mA. When powered off, the input resistance reaches at least 500 kohm.

Frequently Asked Questions (FAQ)

Q: Does the AAI143-H50/A4S10 support HART communication?
A: Yes. The H suffix specifies HART digital communication support for compatible 4-20 mA transmitter circuits.

Q: Can the module operate in a redundant configuration?
A: Yes. The supplied specifications identify the AAI143-H50/A4S10 as compatible with dual-redundant configurations.

Q: Is hot-swap operation specified for this module?
A: The supplied data does not specify a hot-swap function. Follow the applicable Yokogawa system installation and maintenance procedures before removing or inserting the module.

Field Installation Guidelines

• Install the module and ATA4S-10 terminal block according to the applicable Yokogawa system hardware documentation.
• Verify the 4-20 mA transmitter wiring before applying system power.
• Keep analog signal wiring separated from high-voltage and high-current power conductors to reduce electromagnetic interference.
• Use appropriate shield termination practices for the installed transmitter and DCS wiring architecture.
• Verify transmitter polarity and loop power requirements before commissioning each channel.
• Confirm that the field loop remains within the specified 19.0 to 25.5 VDC transmitter supply range at 20 mA.
• Do not exceed the stated 24 mA maximum input current during normal operation.
• Inspect the pressure clamp terminal connections and surge absorber arrangement before energizing the field circuits.
• For redundant configurations, verify the system redundancy arrangement and module compatibility before maintenance or replacement.
• Do not assume hot-swap capability unless the applicable Yokogawa system documentation explicitly permits energized module replacement.
