Overview

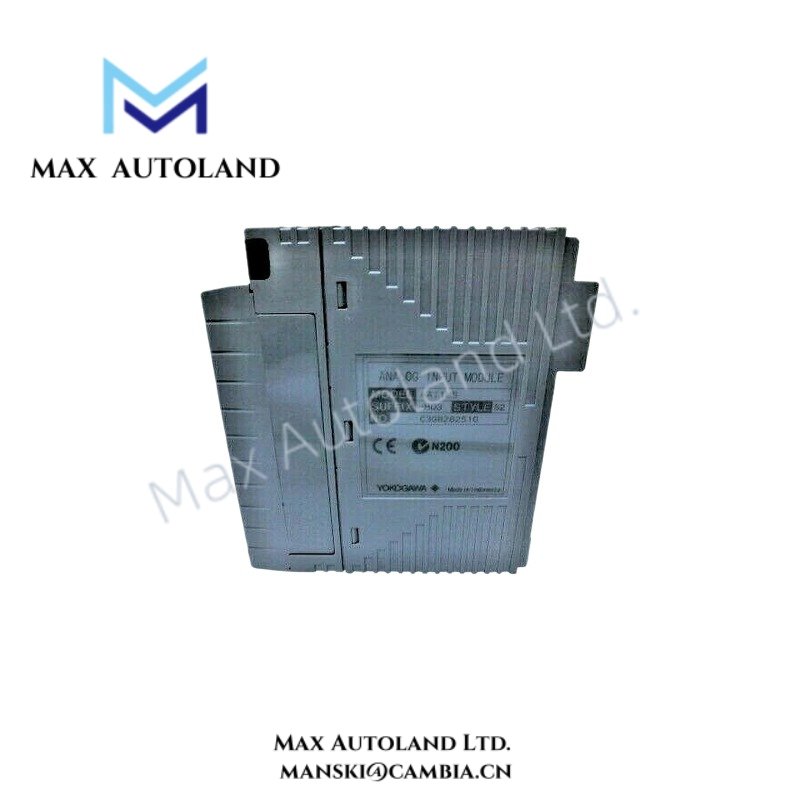

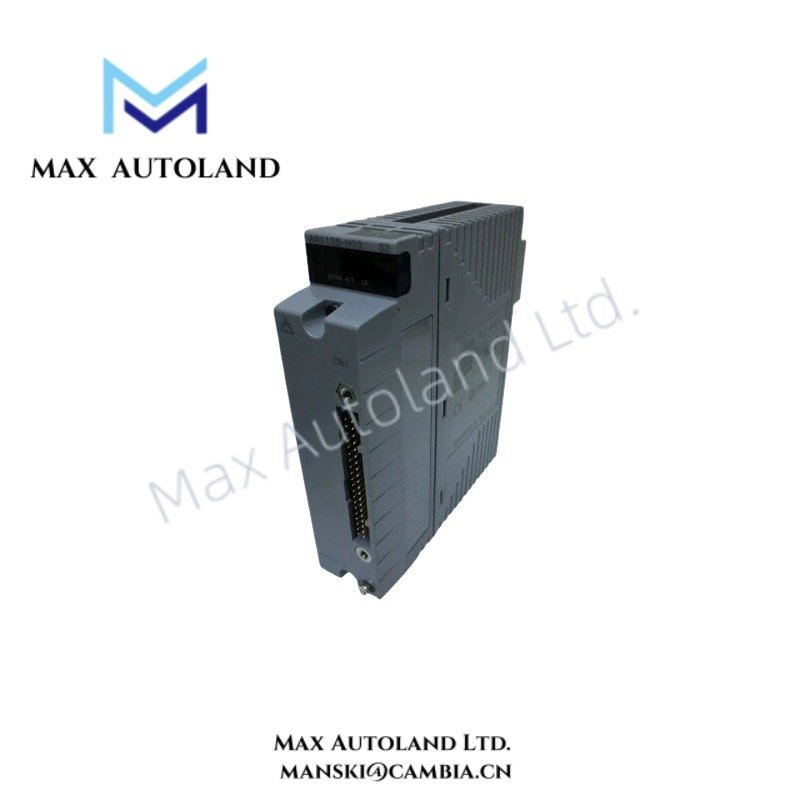

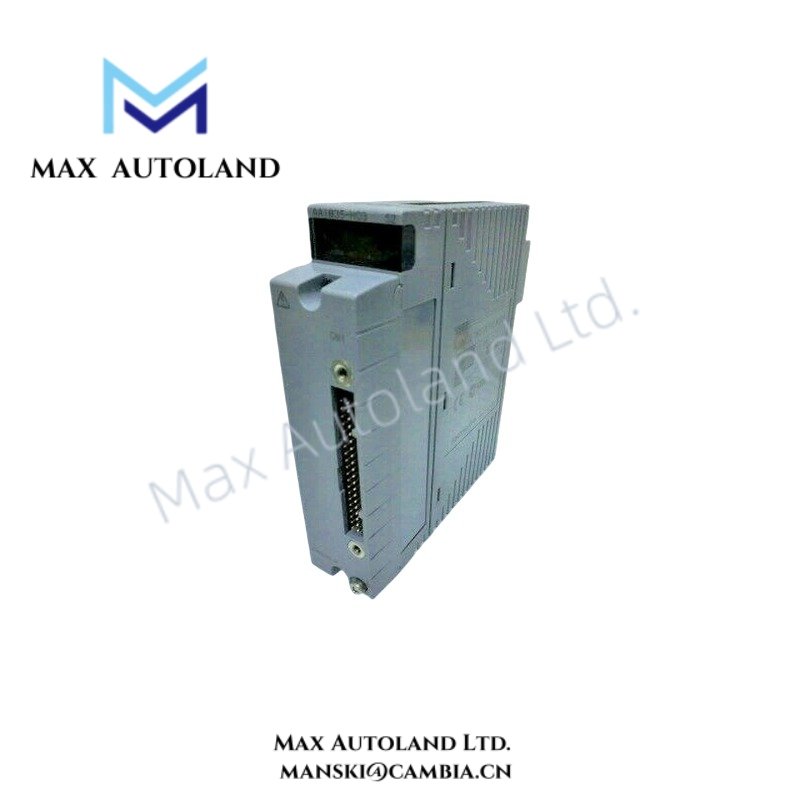

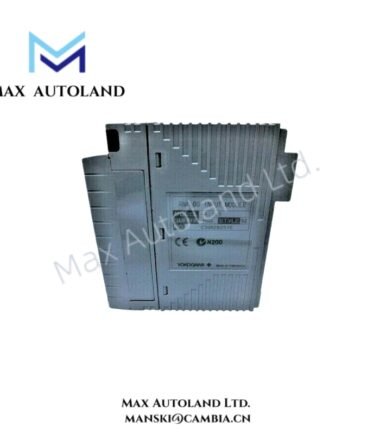

Configured for isolated 4-20 mA current signal output in the CENTUM VP and STARDOM control system environment, the Yokogawa AAI543-S50/K4A00 (AAI543 Analog Output Module) provides direct electrical execution through 16 isolated output channels with redundant configuration support.
Suffix Breakdown & Model Matrix
| Code | Specification |
|---|---|
| Model | AAI543 |
| Module Type | Analog Output Module, 4 to 20 mA, 16-channel isolated |
| -S | Standard type with digital communication using HART protocol |
| 5 | Standard switch-over response in redundant configuration without explosion protection |
| 6 | Fast switch-over response in redundant configuration without explosion protection |
| E | Standard switch-over response in redundant configuration with explosion protection |
| F | Fast switch-over response in redundant configuration with explosion protection |
| /K4A00 | KS Cable Interface Adapter for connecting AEA4D Terminal Board |
| /A4S00 | Pressure Clamp Terminal Block |
| /A4S10 | Pressure Clamp Terminal Block with surge absorber |
| IA4D00 | Dual Pressure Clamp Terminal Block |
| JA4D10 | Dual Pressure Clamp Terminal Block with surge absorber |
| ICCC01 | Connector Cover for MIL Cable |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-S50/K4A00 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | Approx. 0.40 kg |
| Power Consumption | Maximum 230 mA at 5 VDC, 540 mA at 24 VDC |
| Product Type | Analog Output Module |
| Number of Output Channels | 16 isolated channels |
| Output Signal | 4 to 20 mA |
| Output Isolation | Isolated output circuit |
| Redundant Configuration | Supported with standard or fast switch-over response |
| Withstanding Voltage | 1500 VAC for 1 minute between output and system |
| Allowable Load Resistance | 0 to 750 ohm |
| Circuit-open Detection | Less than 0.65 mA |
| Accuracy | Plus or minus 48 uA |
| Data Update Period | 10 ms |
| Temperature Drift | Plus or minus 16 uA per 10 deg C |
| External Connection | Pressure clamp terminal or dedicated MIL connector cable |
| HART Communication | Available |
4-20 mA HART Loop and Channel Isolation Characteristics
The AAI543-S50/K4A00 integrates Yokogawa process control output technology for isolated analog current transmission. Therefore, each output channel maintains electrical separation from the system side to reduce interference during field signal distribution.
The module supports HART communication over the 4-20 mA loop. In addition, the isolated channel design allows the module to connect multiple field devices while maintaining signal integrity within the DCS I/O architecture.
The redundant configuration supports switch-over operation. Moreover, the fast switch-over option reduces output interruption time when the active module changes within the redundant pair.
Frequently Asked Questions
Q: Does the AAI543-S50/K4A00 support redundant operation?
A: Yes. The module supports dual-redundant configuration with standard or fast switch-over response options according to the selected suffix code.
Q: What type of field signal does the AAI543-S50/K4A00 generate?
A: The module provides 16 isolated analog current outputs with a 4 to 20 mA signal range.
Q: Is HART communication available on this module?
A: Yes. The standard type supports digital communication through the HART protocol over the analog output loop.
Field Installation Guidelines
- Install the module according to the Yokogawa I/O rack configuration requirements and verify the correct slot assignment before power application.
- Use the specified KS cable interface adapter, pressure clamp terminal block, or dedicated MIL connector cable according to the selected suffix configuration.
- Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the control system grounding design and avoid multiple-point shield grounding unless specified by the system engineering standard.
- Verify output polarity and field loop resistance before commissioning the 4-20 mA circuits.
- Check redundant module status indicators and confirm switch-over behavior after installation.
- Confirm HART communication operation after completing field device loop checks.
