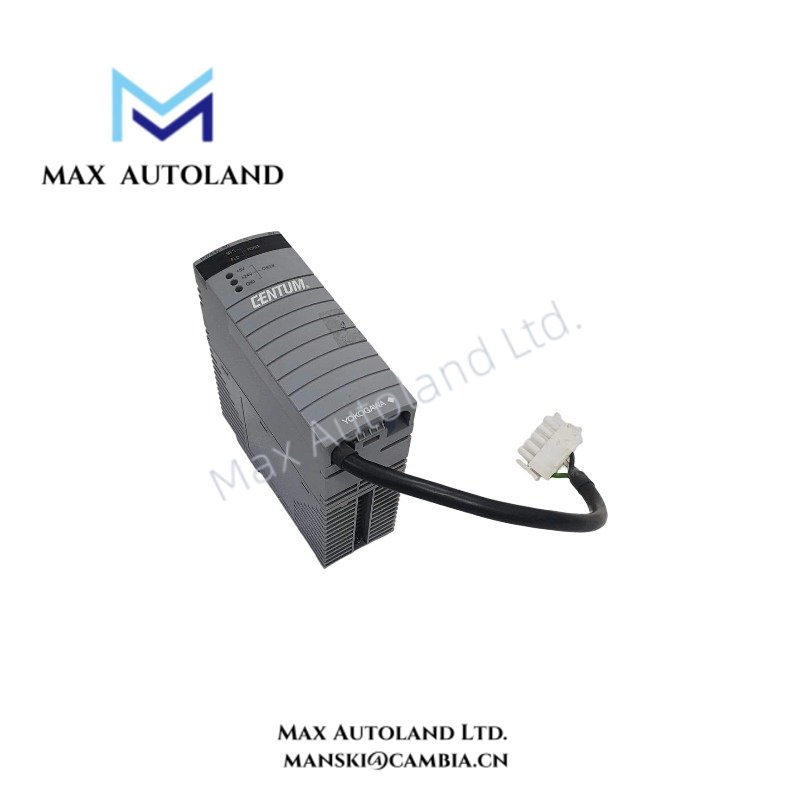

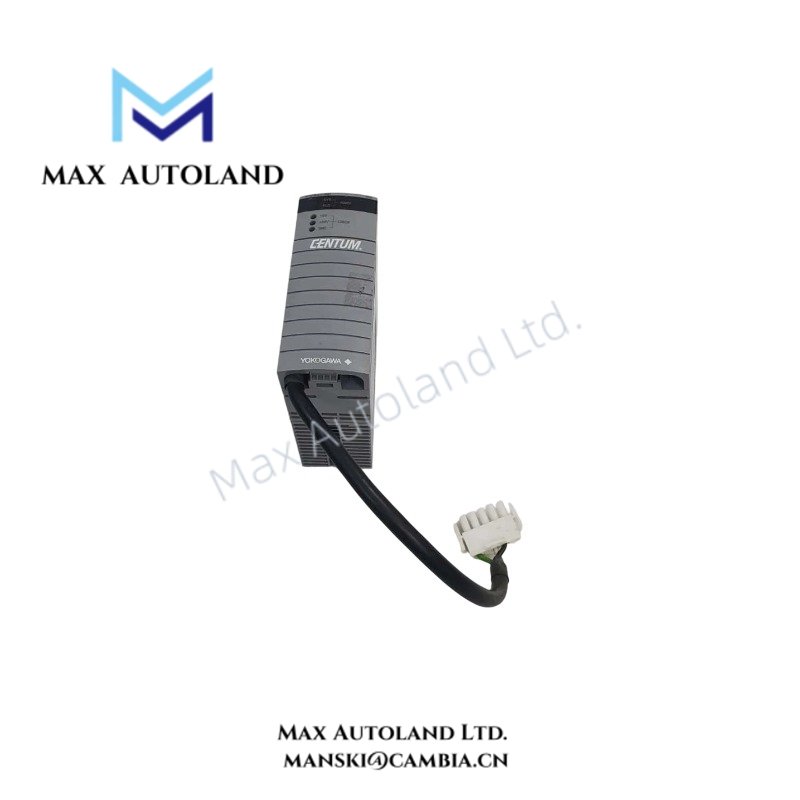

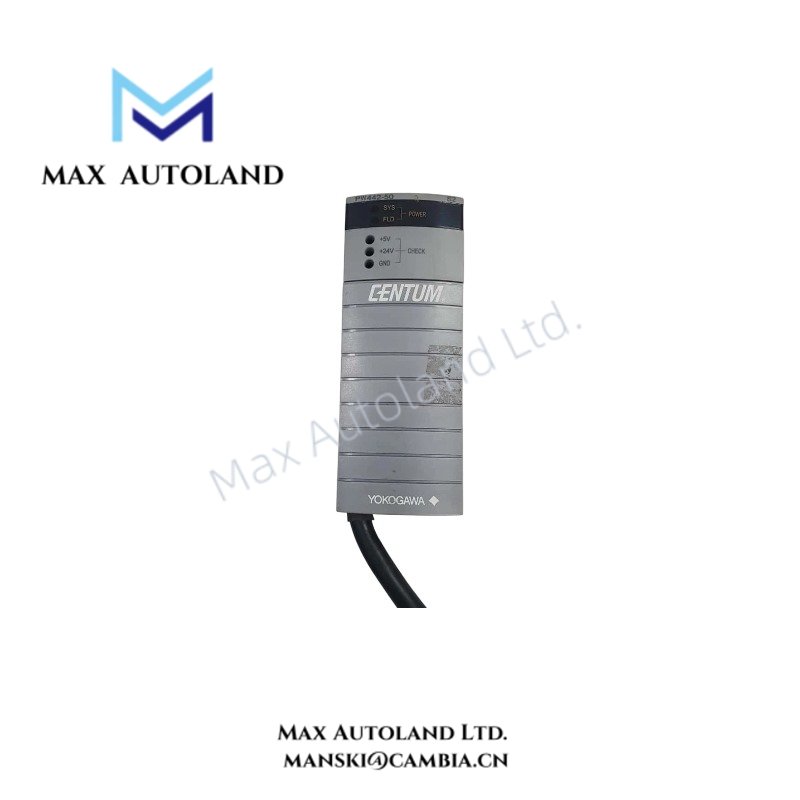

Yokogawa NFPW442-50 S2 Power Supply Module

Overview

Configured for AC power conversion in Yokogawa process control equipment, the Yokogawa NFPW442-50 S2 (NFPW442-50 Power Supply Module) provides direct electrical power input handling for compatible system hardware. It accepts a rated input voltage of 220 to 240 VAC and operates across an input range of 170 to 264 VAC RMS. The module also incorporates specified insulation, dielectric withstand, fuse, and leakage current characteristics.

Hardware Specifications

Process Control Power Interface Characteristics

The NFPW442-50 S2 operates as an AC input power supply component within compatible Yokogawa control hardware. Its specified 47 to 66 Hz input frequency range supports systems operating on nominal 50 Hz or 60 Hz power networks. In addition, the 170 to 264 VAC RMS input range defines the permitted AC supply window.

The module specifies a maximum input current of 0.7 A and uses a 3.15 A fuse rating for input circuit protection. Furthermore, the electrical insulation specification includes 50 Mohm insulation resistance at 500 VDC and a 3000 VAC dielectric withstand test for 1 minute. These parameters define the electrical separation characteristics between applicable circuits.

For Yokogawa DCS installations, power supply hardware operates alongside process I/O equipment that may interface with 4-20 mA HART loops, field instrumentation, and other control circuits. However, the provided data does not specify direct fieldbus, HART, or channel isolation functions for the NFPW442-50 S2 itself.

Frequently Asked Questions

Q: What AC input voltage does the Yokogawa NFPW442-50 S2 accept?
A: The module has a rated input voltage of 220 to 240 VAC and an operating input voltage range of 170 to 264 VAC RMS.

Q: What input frequency range is specified for the NFPW442-50 S2?
A: The specified input frequency range is 47 to 66 Hz, with a nominal rating of 50/60 Hz.

Q: What electrical insulation values are specified for this module?
A: The module specifies 50 Mohm insulation resistance at 500 VDC and a withstanding voltage of 3000 VAC for 1 minute.

Field Installation Guidelines

Verify that the incoming AC supply remains within the specified 170 to 264 VAC RMS range before energizing the module.

Disconnect system power before installing or removing the module. Install the unit only in the designated compatible Yokogawa hardware location.

Check the supply frequency and input wiring before startup. Use wiring practices appropriate for industrial control panels and maintain separation between AC power conductors and low-level signal wiring.

Inspect the input fuse arrangement and protective grounding according to the system documentation. Do not replace protective devices with components having unspecified ratings.

After installation, verify the mechanical seating of the module and inspect all associated connectors before applying power.
