Overview

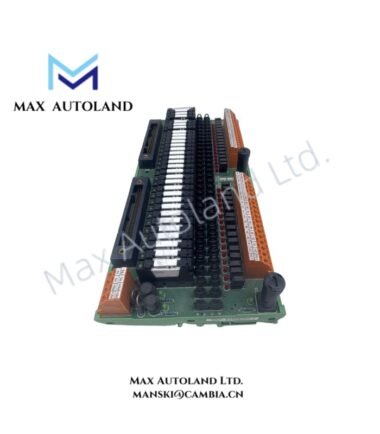

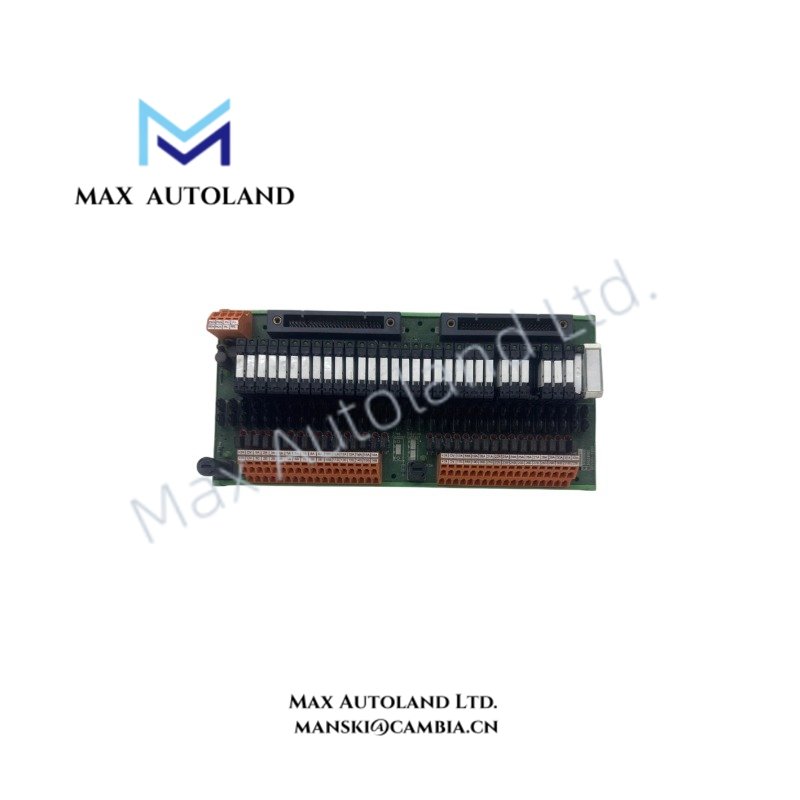

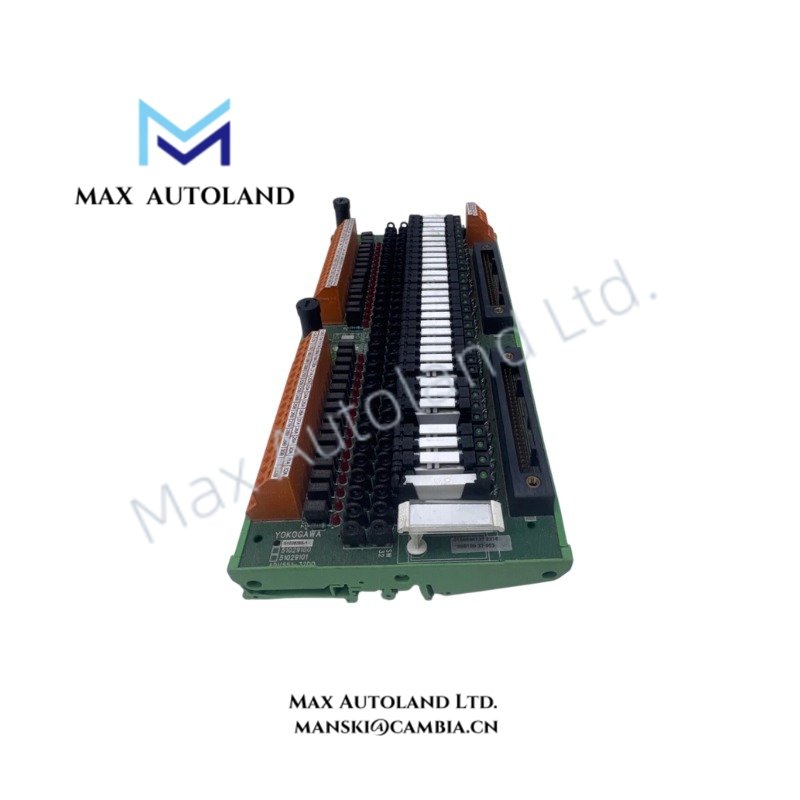

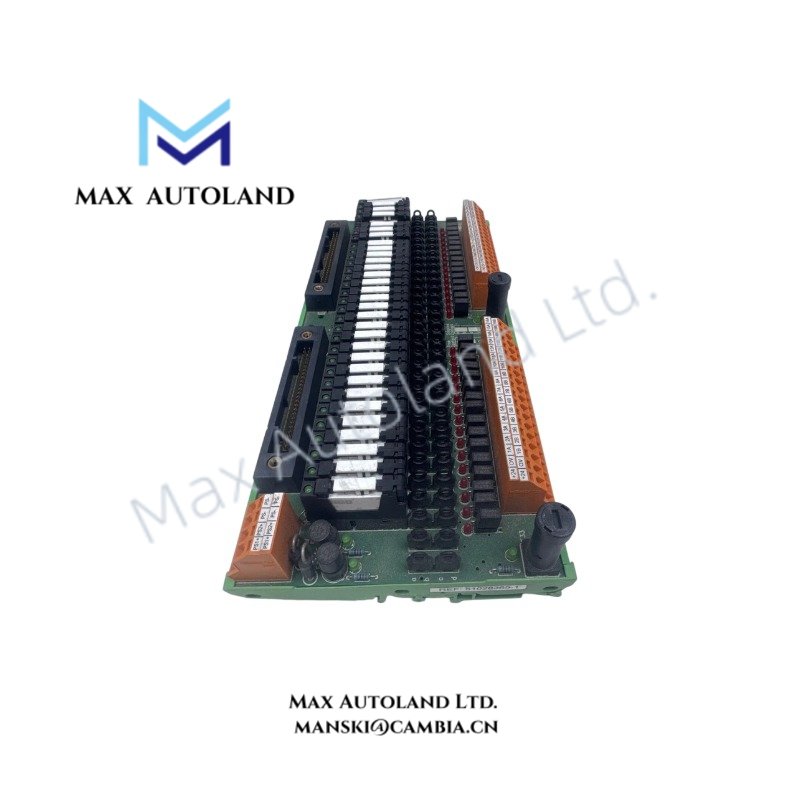

The Yokogawa ADV551-DO32, also cataloged as the ADV551-DO32 Digital Output Module, provides transistor-based discrete output execution for Yokogawa CENTUM VP and CENTUM CS 3000 FIO systems. The module controls external ON/OFF field devices through 32 output channels with electrical isolation functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV551-DO32 |
| Brand | Yokogawa |
| Product Type | Digital Output Module |
| Origin | Japan |
| Weight | Approx. 0.3 kg |
| Dimensions | Approx. 130 mm x 107.5 mm x 32.8 mm |
| Operating Temp | -20 deg C to +60 deg C |
| Power Consumption | Not specified in available documentation |
| System Platform | CENTUM VP / CENTUM CS 3000 |
| I/O Architecture | Field Network I/O (FIO) |
| Number of Channels | 32 digital output channels |
| Output Type | Transistor contact output, current sink format |
| Rated Applied Voltage | 24 VDC |
| Operating Voltage Range | 18 VDC to 26.4 VDC |
| Maximum Load Current | 0.1 A to 0.5 A per channel depending on terminal configuration |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Output Functions | ON/OFF status output, pulse-width output, time-proportioning output |
| Redundancy Function | Supports dual-redundant configuration |
| Mounting Method | Plug-in installation on FIO baseplate or node unit |
Yokogawa DCS Digital Output Execution and Isolation Design
The ADV551-DO32 uses transistor output circuitry to execute discrete control commands from the CENTUM VP or CENTUM CS 3000 control system. The module transfers controller output states to field devices through dedicated output channels.
Additionally, the module incorporates channel-to-channel isolation and channel-to-system isolation to reduce electrical interference between field circuits and the control network. For process instrumentation interfaces, Yokogawa DCS architectures commonly integrate isolated I/O channels with 4-20 mA HART loops, FOUNDATION Fieldbus, or Profibus PA networks through compatible interface modules.
The 32-channel design provides high I/O density for cabinet installations. Furthermore, the dual-redundant configuration option allows paired module arrangements for applications requiring continuous output availability.
Frequently Asked Questions
Q: What type of field devices can the ADV551-DO32 control?
A: The module provides transistor digital outputs for discrete devices such as solenoid valves, relays, indicator lamps, and motor starter control circuits.
Q: Does the ADV551-DO32 support redundant operation?
A: Yes. The module supports dual-redundant configuration when installed in compatible Yokogawa FIO system architectures.
Q: What installation interface does the ADV551-DO32 use?
A: The module uses plug-in installation on compatible FIO baseplates or node units within Yokogawa CENTUM VP and CENTUM CS 3000 systems.
Field Installation Guidelines
- Install the ADV551-DO32 only in compatible Yokogawa FIO node units or baseplate assemblies.
- Verify the 24 VDC field supply polarity before connecting output wiring.
- Separate digital output signal cables from high-current power cables to reduce electrical noise coupling.
- Connect cable shields according to the cabinet grounding design and plant electrical standards.
- Confirm terminal block compatibility before module replacement or system expansion.
- Check output channel assignment and control logic configuration before commissioning field devices.
- Follow Yokogawa installation manuals for grounding, wiring, and redundancy configuration procedures.
