Overview

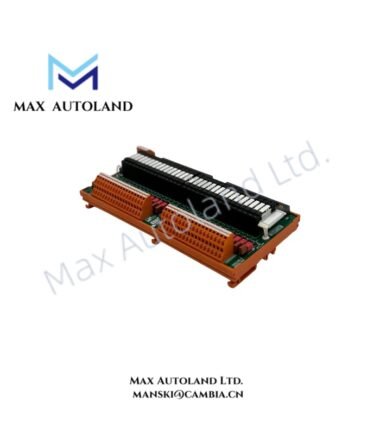

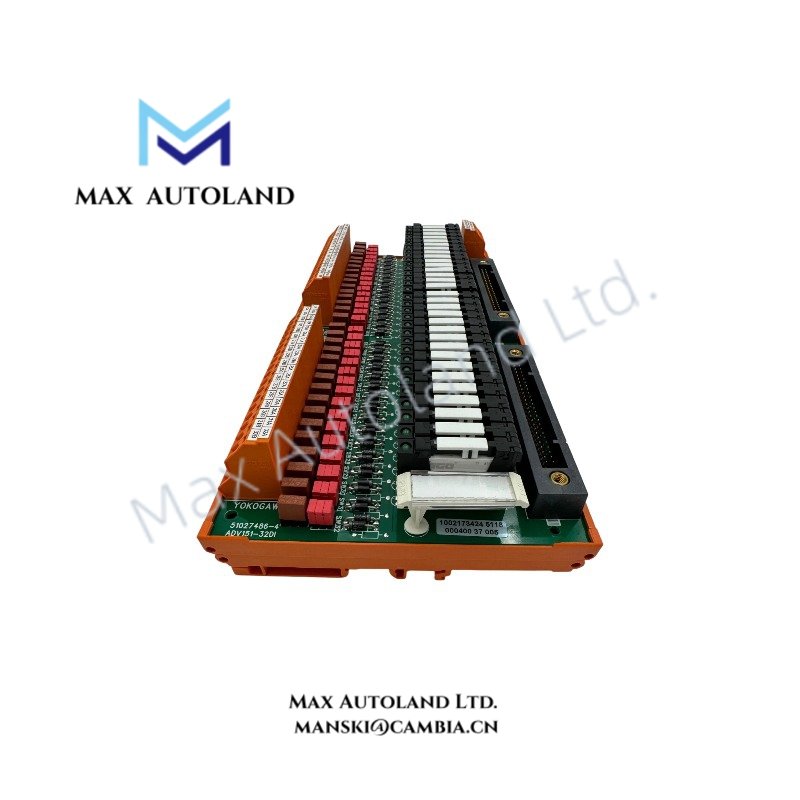

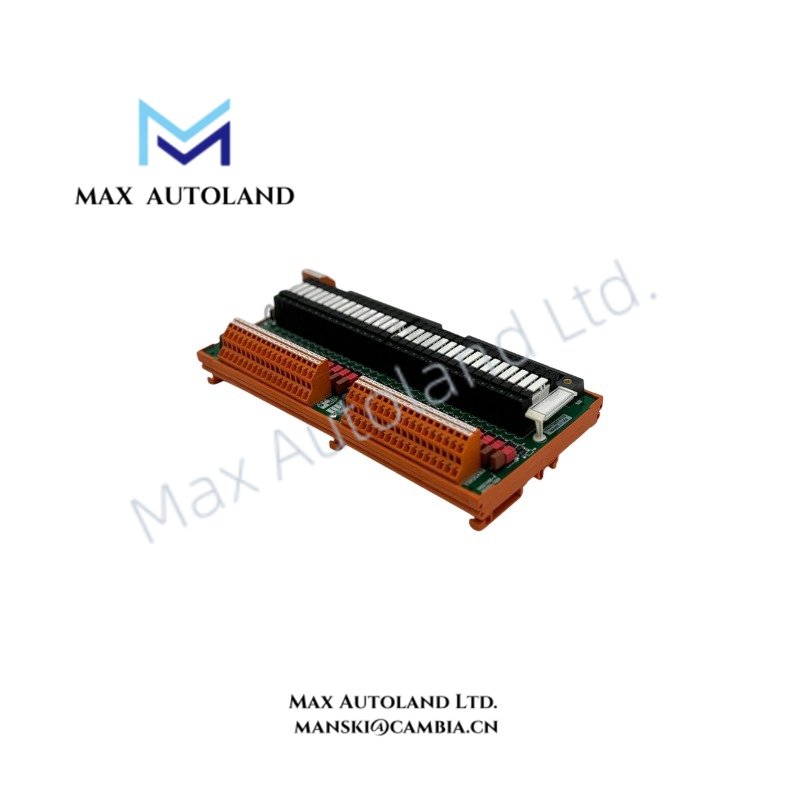

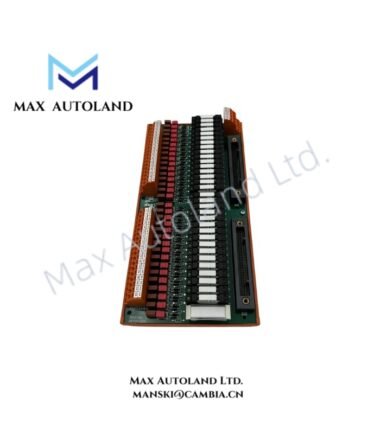

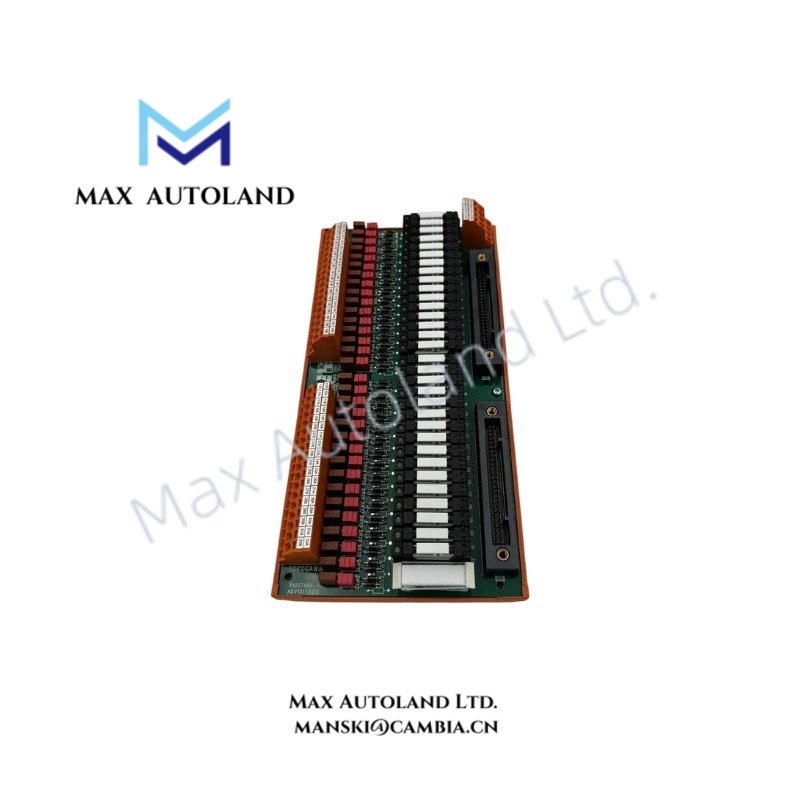

The Yokogawa ADV151, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for receiving 24 VDC ON/OFF discrete signals within Yokogawa CENTUM VP and CENTUM CS 3000 FIO systems. The module processes field status signals from switches, pushbuttons, and proximity devices through 32 input channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Digital Input Module |
| System Platform | CENTUM VP / CENTUM CS 3000 FIO |
| I/O Configuration | 32-channel digital input |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range (ON) | 18 VDC to 26.4 VDC |
| Input Voltage Range (OFF) | 5.0 VDC or less |
| Rated Input Current | Approx. 4.1 mA per channel |
| Input Signal Type | ON/OFF discrete status signal |
| Input Response Time | 8 ms or less |
| Maximum Allowable Voltage | 30.0 VDC |
| Isolation | Input signal isolation from internal system circuits |
| Connection Method | Pressure clamp terminal, dedicated cables, or MIL connector cables |
| Redundancy Support | Single or dual-redundant configuration depending on system architecture |
Yokogawa DCS Signal Isolation and Process I/O Characteristics
The ADV151 integrates with Yokogawa FIO architecture to acquire discrete field signals and transfer status information to CENTUM control applications. The module uses channel-to-channel isolation to reduce electrical interference between input circuits and the internal system interface.
Furthermore, Yokogawa DCS I/O designs support process instrumentation environments where discrete signals operate alongside analog measurement loops. The ADV151 complements Yokogawa field networks by maintaining stable digital status acquisition from external contacts and switching devices.
The module supports industrial wiring practices using dedicated cables and terminal assemblies. Therefore, proper cable routing, grounding, and shielding methods help minimize induced noise during signal transmission.
Frequently Asked Questions
Q: Does the Yokogawa ADV151 support 32 discrete input channels?
A: Yes. The ADV151 provides 32 digital input channels for 24 VDC ON/OFF field status signals.
Q: What type of field devices can connect to the ADV151?
A: The module accepts discrete signals from devices such as switches, pushbuttons, and proximity sensors through compatible Yokogawa terminal and cable assemblies.
Q: Can the ADV151 operate in redundant FIO configurations?
A: The module supports single or dual-redundant configurations when applied within compatible Yokogawa system architectures.
Field Installation Guidelines
- Install the ADV151 in the specified Yokogawa FIO node unit according to the system hardware configuration manual.
- Use approved Yokogawa cables and terminal assemblies for field signal connections.
- Separate digital input wiring from high-power cables to reduce electrical noise coupling.
- Connect cable shields according to the site grounding design and Yokogawa installation requirements.
- Verify input polarity, field voltage level, and terminal assignments before energizing the module.
- Confirm the module status through the CENTUM engineering interface after installation.
