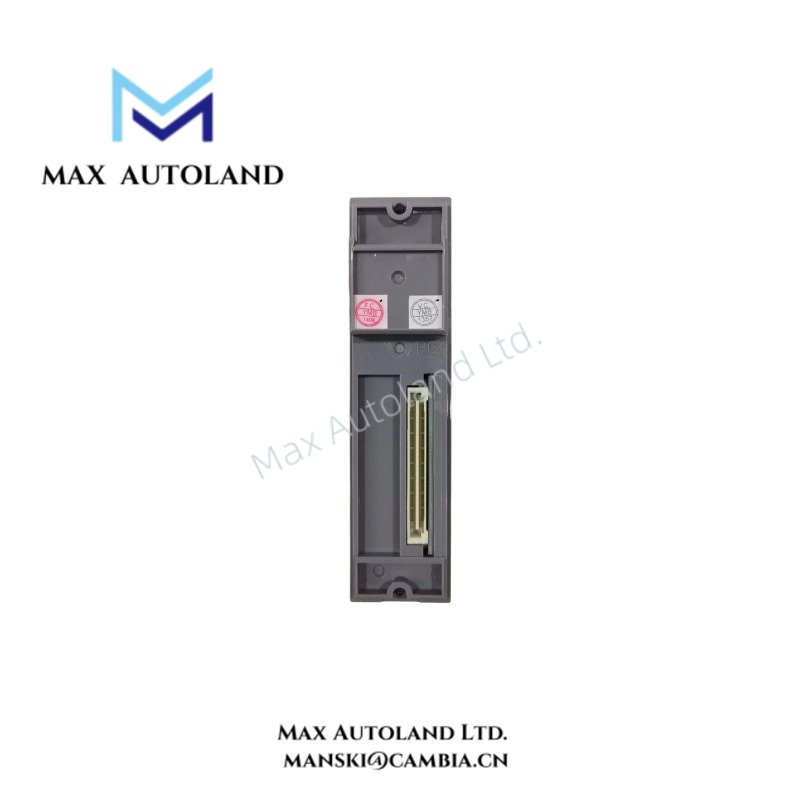

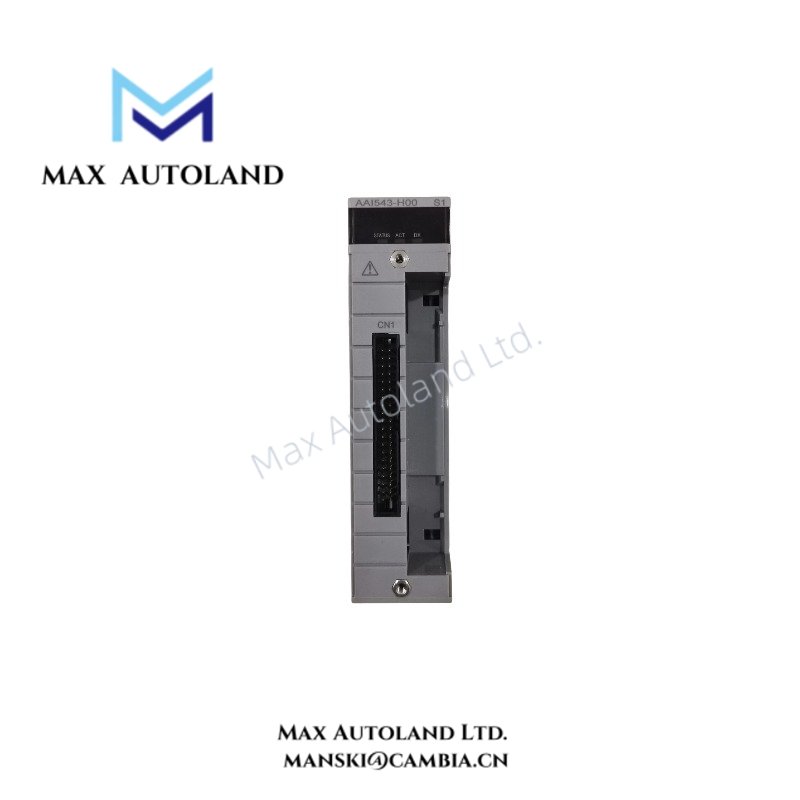

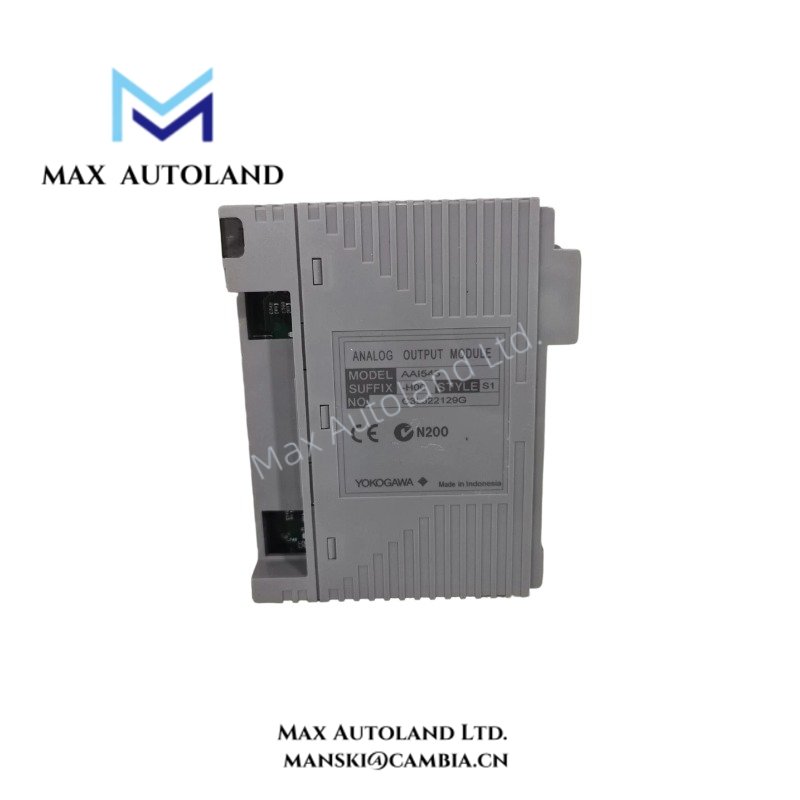

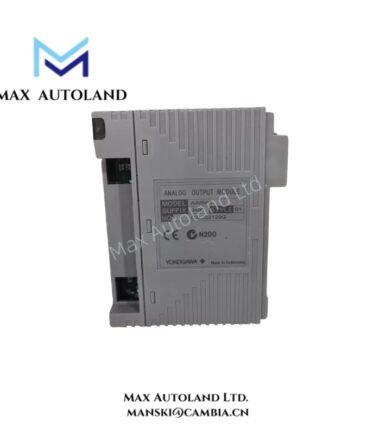

Yokogawa AAI543-H00 S1 Analog Output Module with HART

Overview

Configured for analog current signal output in Yokogawa CENTUM VP and CENTUM CS 3000 I/O systems, the Yokogawa AAI543-H00 S1 (AAI543 Analog Output Module with HART) provides direct electrical execution for 4-20 mA output loops with HART communication capability.

Hardware Specifications

4-20 mA HART Loop Signal Processing

The Yokogawa AAI543-H00 S1 integrates with Yokogawa DCS I/O architectures to generate analog output signals for field instruments. The module processes control commands from the system controller and converts digital values into proportional 4-20 mA electrical output.

Furthermore, the HART communication function allows bidirectional digital communication over the analog current loop. The module supports parameter exchange and device diagnostics when connected with compatible HART field instruments.

The module design follows Yokogawa process control requirements, including channel-to-channel signal separation and stable analog output operation within CENTUM VP and CENTUM CS 3000 environments.

Frequently Asked Questions

Q: What type of signal does the Yokogawa AAI543-H00 S1 output?
A: The AAI543-H00 S1 provides 4-20 mA analog current output for connection to compatible field control devices.

Q: Does the AAI543-H00 S1 support HART communication?
A: Yes. The module includes HART communication capability for compatible smart field instruments connected through the analog output loop.

Q: Can the AAI543-H00 S1 replace other Yokogawa analog output modules directly?
A: Replacement compatibility depends on the installed CENTUM system configuration, I/O card assignment, engineering database settings, and hardware revision.

Field Installation Guidelines

Install the AAI543-H00 S1 according to the Yokogawa I/O cabinet installation requirements and verify slot compatibility before insertion.

Connect field wiring using appropriate terminal blocks and maintain proper separation between analog signal cables and high-voltage power conductors. Use shielded cables for analog loops when required by the site grounding practice.

Confirm the 4-20 mA loop polarity before applying power. Verify HART communication wiring, instrument addressing, and controller configuration after installation.

Inspect the module connector, terminal connections, and cabinet grounding points during commissioning to prevent signal instability caused by loose connections or electrical noise.
