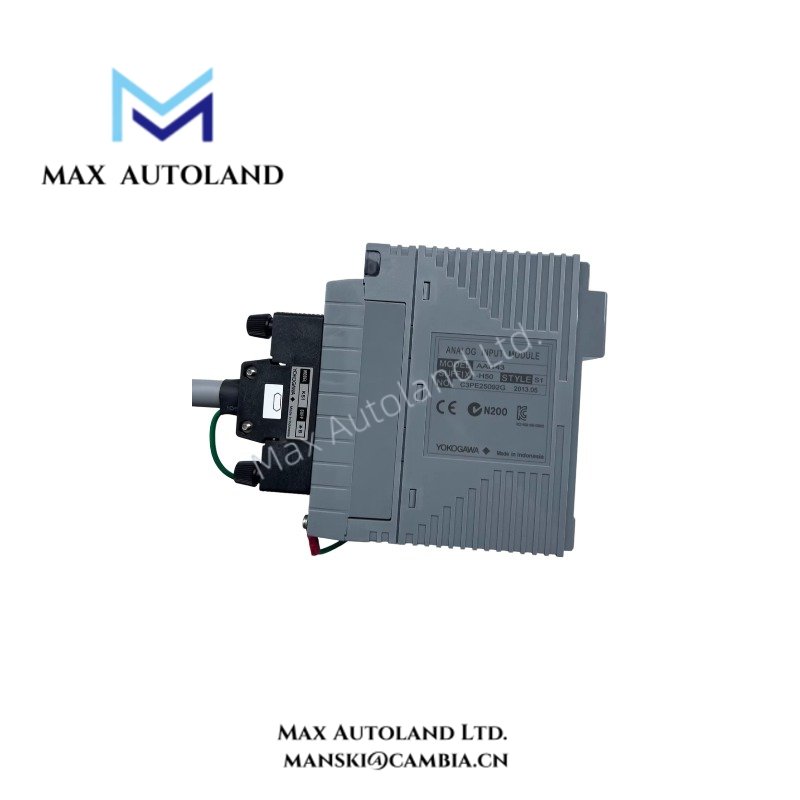

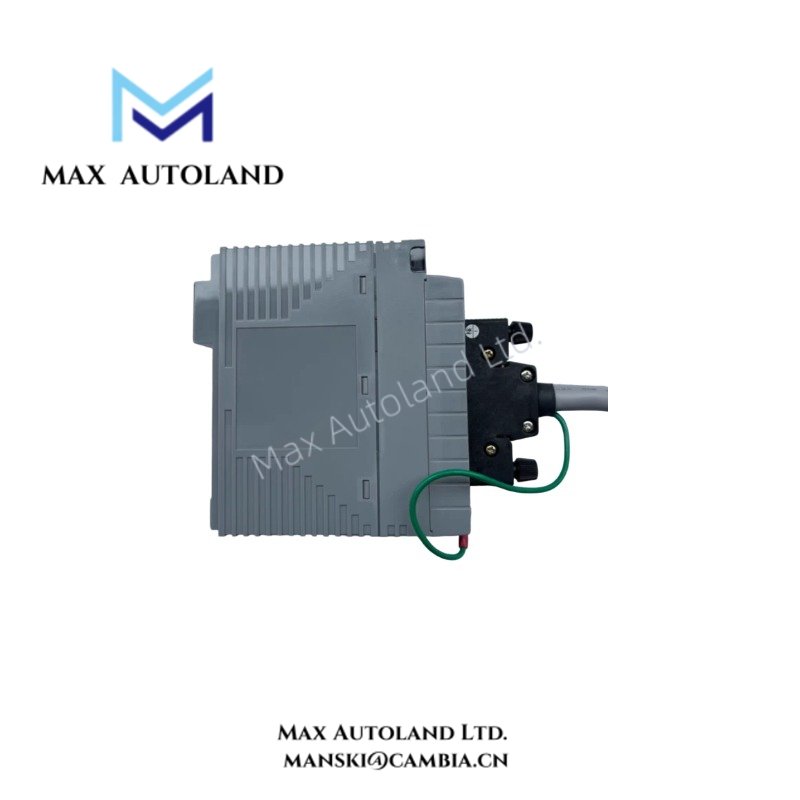

AAI143-H50 Yokogawa Isolated Analog Input Module

Overview

The Yokogawa AAI143-H50, also cataloged as the AAI143-H5 Current Input Module, operates as a dedicated hardware component for converting 4-20 mA DC field signals into digital process values within Yokogawa CENTUM VP and CENTUM CS 3000 DCS platforms.

Hardware Specifications

4-20 mA HART Process Instrument Interface

The Yokogawa AAI143-H50 integrates isolated 4-20 mA current input channels with HART communication capability. Therefore, the module can acquire the primary analog measurement while supporting digital device configuration, diagnostics, and additional transmitter information through the same current loop.

Each input channel provides electrical isolation between field signals and the system side. Furthermore, the 1500 V AC isolation rating supports separation between field wiring circuits and DCS processing circuits. The module processes input data with a 10 ms update period and maintains an accuracy specification of ±16 uA.

The HART function requires installation in an ER bus node unit equipped with HART capability and EB401 firmware revision 2 or later. In this configuration, the module supports communication between intelligent field transmitters and Yokogawa CENTUM control systems.

Frequently Asked Questions

Q: What type of field signals can the AAI143-H50 accept?
A: The AAI143-H50 accepts 4-20 mA DC analog current signals from field transmitters and sensors through 16 isolated input channels.

Q: Does the AAI143-H50 provide HART communication?
A: Yes. The -H50 version supports HART protocol communication when installed with an ER bus node unit containing HART functionality and EB401 firmware revision 2 or later.

Q: What electrical isolation does this module provide?
A: The module provides 1500 V AC isolation for 1 minute between input circuits and the system side, reducing signal interference between field wiring and DCS hardware.

Field Installation Guidelines

Install the AAI143-H50 in the specified Yokogawa DCS I/O node configuration and verify compatibility with the selected ER bus node hardware before commissioning.

Connect 4-20 mA field wiring according to the Yokogawa terminal assignment documentation. Maintain proper cable separation between analog signal wiring and high-voltage power circuits to reduce electromagnetic interference.

For HART communication operation, confirm that the installation includes the required HART-enabled node unit and compatible EB401 firmware revision.

Verify transmitter loop polarity, shield termination method, and grounding arrangement before applying power. Check input current values and diagnostic status through the DCS engineering tools during startup.
