Overview

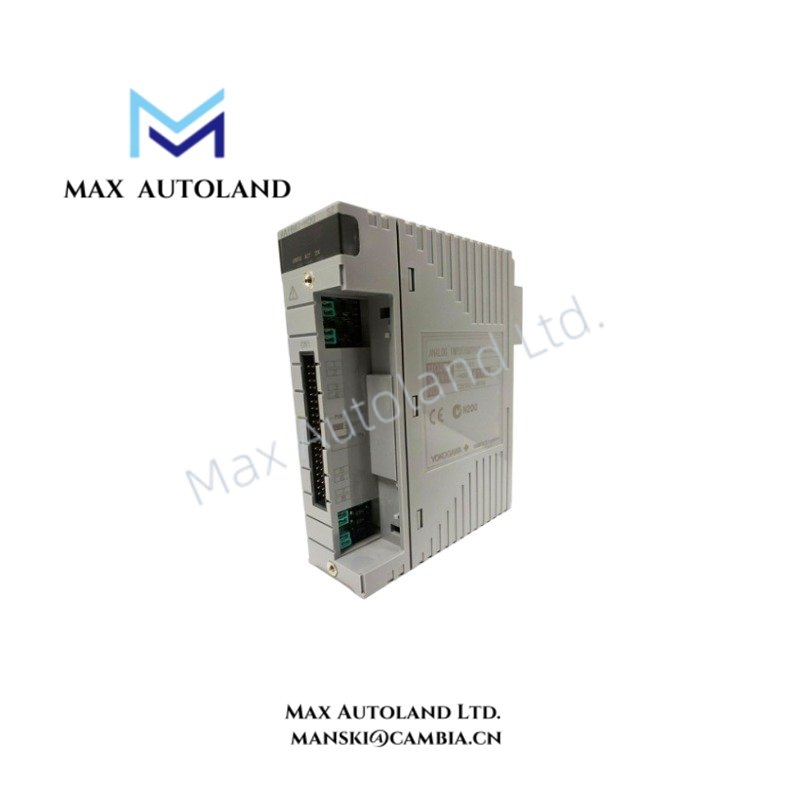

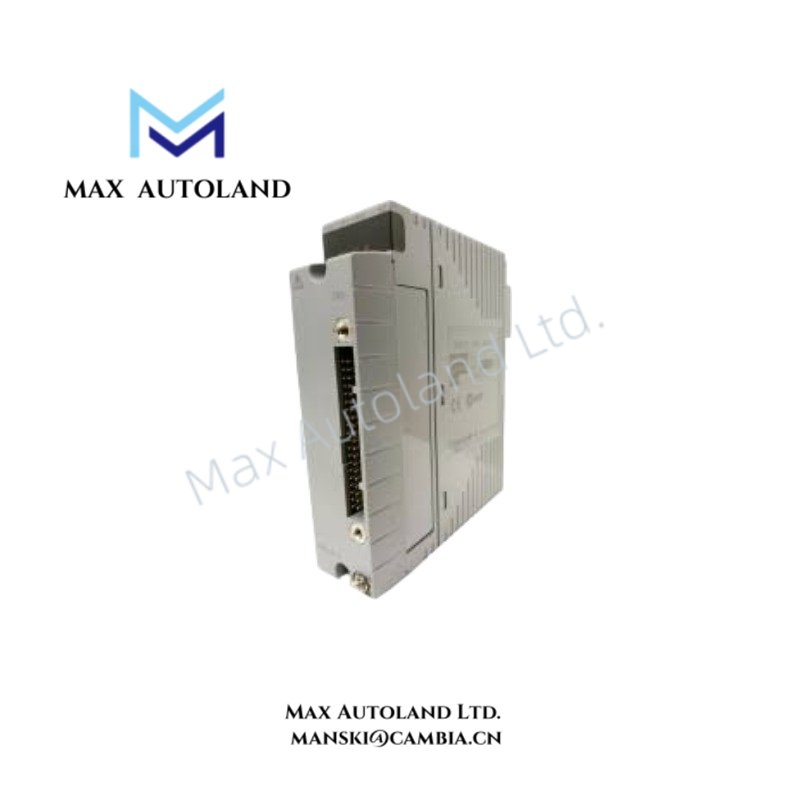

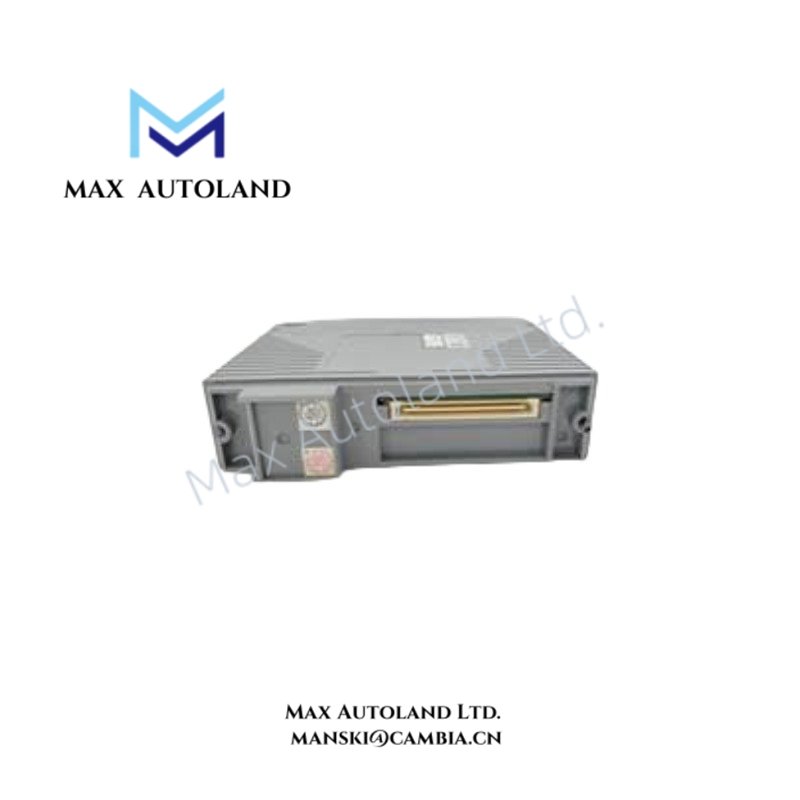

The Yokogawa AAI141-H50, also cataloged as the AAI141 Analog Input Module, operates as a dedicated hardware component for receiving 4-20 mA and 1-5 V DC field signals within Yokogawa CENTUM VP and CENTUM CS3000 DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI141-H50 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Analog Input Module |
| Input Channels | 16 channels, non-isolated between channels |
| Input Signal | 4-20 mA DC or 1-5 V DC |
| Input Configuration | 2-wire and 4-wire transmitter connection |
| Digital Communication | HART protocol supported |
| Allowable Input Current | 24 mA maximum |
| Accuracy | +/- 0.1% of full scale |
| Transmitter Power Supply | 19.0 V DC or higher at 20 mA |
| Redundancy Configuration | Dual-redundant configuration supported |
| Mounting Type | Node unit rack mounting |
| Operating Temp | -20 deg C to +60 deg C |
4-20 mA HART Loop Protocol and Channel Processing
The Yokogawa AAI141-H50 processes analog field signals through a DCS I/O interface and supports 4-20 mA HART loop protocol communication. Therefore, the module can receive measurement variables and HART digital information from compatible field transmitters.
The module provides 16 input channels for current and voltage measurement tasks. However, the channels do not provide channel-to-channel isolation. Proper field wiring separation and signal grounding practices must be applied during installation.
The AAI141-H50 supports dual-redundant configuration within Yokogawa CENTUM systems. As a result, the control architecture can maintain signal acquisition availability through redundant module arrangements.
Frequently Asked Questions
Q: Does the Yokogawa AAI141-H50 support HART communication?
A: Yes. The module supports HART protocol communication for compatible 4-20 mA field transmitters.
Q: Are the 16 input channels individually isolated?
A: No. The AAI141-H50 provides 16 input channels with non-isolated channel architecture. Field wiring design must consider grounding and interference control.
Q: Can the AAI141-H50 operate in a redundant configuration?
A: Yes. The module supports dual-redundant installation within compatible Yokogawa CENTUM DCS node configurations.
Field Installation Guidelines
Install the AAI141-H50 in the specified Yokogawa node unit slot and verify the module seating condition before system power application.
Use shielded signal cables for analog field connections when required by the site electrical design. Connect cable shields according to the plant grounding standard to reduce electromagnetic interference.
Separate analog signal wiring from high-voltage power cables and switching circuits. Maintain correct polarity for 4-20 mA loops and verify transmitter power supply wiring before commissioning.
Check the CENTUM engineering configuration after installation. Confirm channel assignment, input scaling, HART communication status, and module diagnostic information before placing the loop into operation.
