Overview

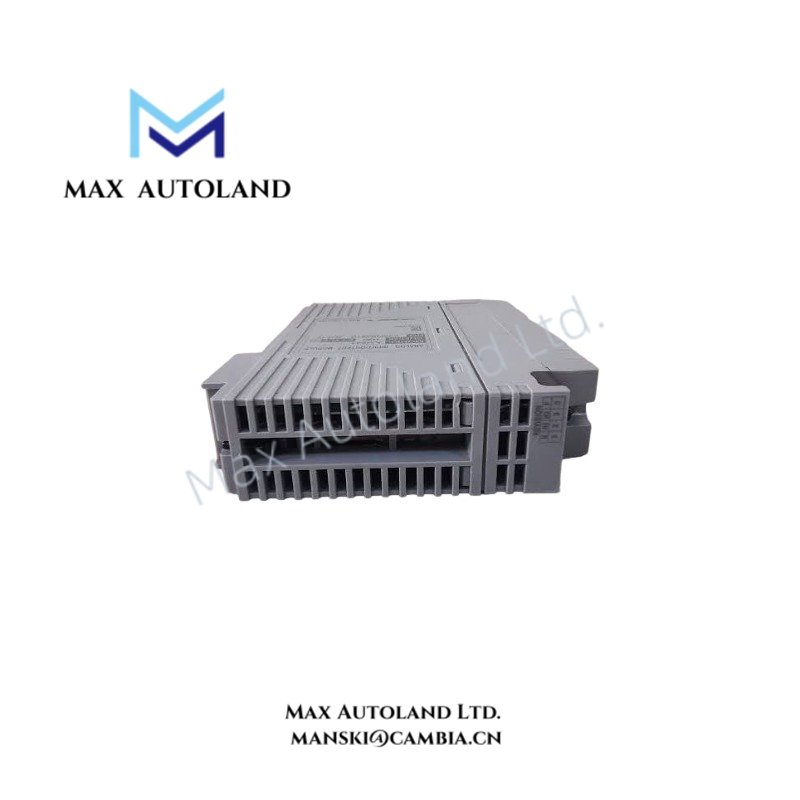

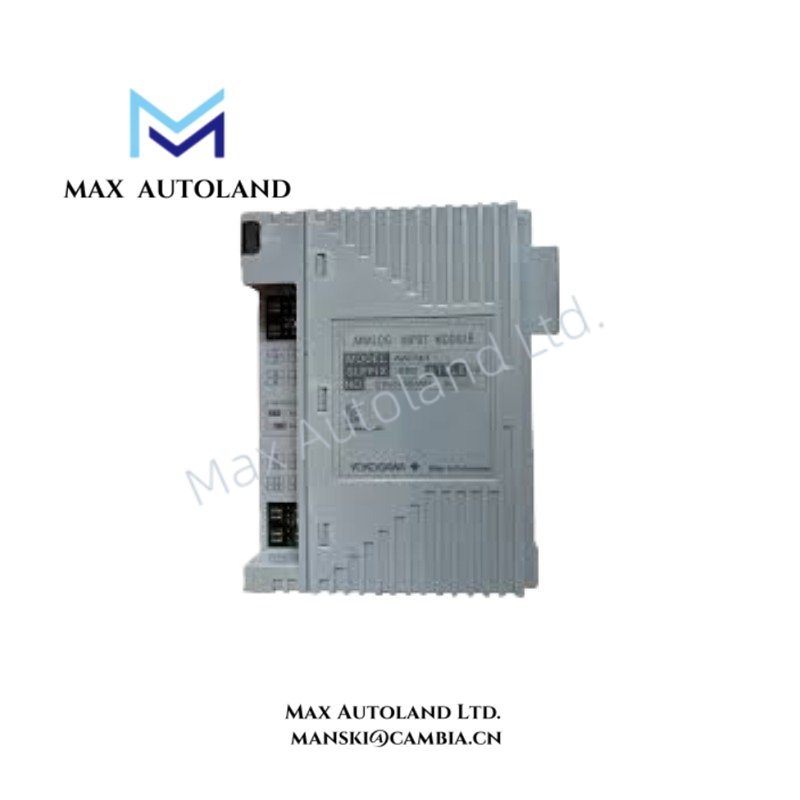

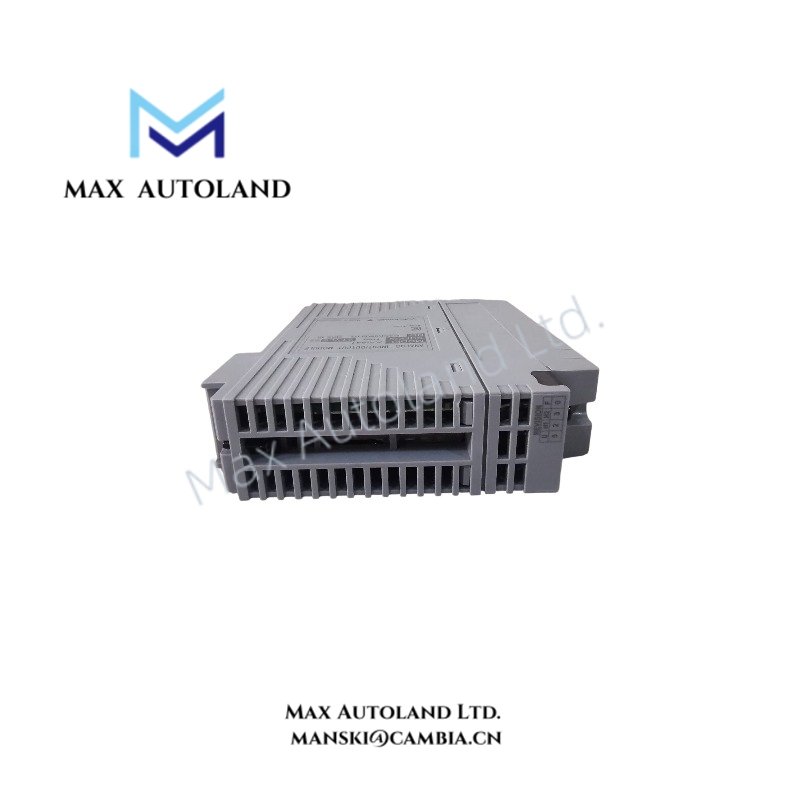

The Yokogawa AAI841-S50, also cataloged as the AAI841 Analog I/O Module, operates as a dedicated hardware component for 4-20 mA signal input and output execution within Yokogawa CENTUM series DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI841-S50 |
| Brand | Yokogawa |
| Origin | Japan |
| Module Type | Analog I/O Module |
| Function | 8-channel analog input and 8-channel analog output |
| Input Signal | 4-20 mA DC |
| Output Signal | 4-20 mA DC |
| Channel Configuration | 8 input channels / 8 output channels, non-isolated common ground |
| Allowable Input Current | 25 mA max |
| Input Resistance | 400 ohm at 20 mA to 1000 ohm at 4 mA |
| Allowable Load Resistance | 0 to 750 ohm |
| Circuit Open Detection | Less than 0.65 mA for output |
| Measurement Accuracy | Input: +/-16 uA; Output: +/-48 uA |
| Data Update Period | 10 ms |
| Input Step Response Time | 100 ms |
| Output Step Response Time | 40 ms |
| Transmitter Power Supply | 14.8 VDC or higher at 20 mA; 26.4 VDC or lower at 0 mA |
| Temperature Drift | +/-0.1% / 10 deg C |
| Power Consumption | 310 mA at 5 VDC; 450 mA at 24 VDC |
| Weight | Approx. 0.3 kg |
| Operating Temp | -20 to 70 deg C |
| External Connection | Pressure clamp terminal, KS cable, or MIL connector cable |
| Redundancy | Supports dual-redundant configuration |
| System Compatibility | Yokogawa CENTUM VP and CENTUM series DCS |
4-20 mA DCS Loop Integration and Signal Handling
The AAI841-S50 processes analog field signals through Yokogawa DCS I/O architecture. The module accepts 4-20 mA input signals and generates 4-20 mA output signals for control loop execution.
Furthermore, the module supports process instrumentation interfaces based on standard current loops. The design allows connection with field transmitters, actuators, and analog control devices within CENTUM system configurations.
For Yokogawa process control applications, the module can support engineering practices associated with 4-20 mA HART loop protocol integration, FOUNDATION Fieldbus / Profibus PA connectivity through system-level interfaces, and channel-to-channel signal management where applicable. The AAI841-S50 itself provides non-isolated analog I/O channels with common ground configuration.
Frequently Asked Questions
Q: Does the Yokogawa AAI841-S50 provide channel isolation between analog input and output circuits?
A: No. The AAI841-S50 uses a non-isolated common ground channel configuration. External isolation devices should be applied when field circuit separation is required.
Q: Can the AAI841-S50 operate in a redundant Yokogawa DCS configuration?
A: Yes. The module supports dual-redundant configuration within compatible Yokogawa CENTUM system architectures.
Q: What type of field signals can connect directly to the AAI841-S50?
A: The module accepts 4-20 mA DC analog input signals and provides 4-20 mA DC analog output signals for connected field devices.
Field Installation Guidelines
- Install the AAI841-S50 only in compatible Yokogawa CENTUM system I/O node configurations.
- Verify the module slot assignment and terminal wiring before applying field power.
- Separate analog signal wiring from high-voltage power cables to reduce electromagnetic interference.
- Use shielded cables for analog loops and connect cable shields according to the plant grounding standard.
- Confirm current loop polarity before commissioning input and output channels.
- Check transmitter power supply requirements before connecting external field instruments.
- Verify redundant configuration wiring when dual-redundant operation is required.
- Inspect terminal connections periodically to maintain stable electrical contact.
