Overview
Furthermore, the module features fast switching and high signal integrity, allowing engineers to implement real-time process control effectively. Therefore, it is ideal for critical industrial automation applications where safety, precision, and reliability are essential. Additionally, the module’s design supports scalable system expansion, enabling facilities to enhance automation capabilities with minimal disruption.
Specification
| Parameter | Specification |
|---|---|
| Module Type | Digital Output Module |
| Model | XO16N1-C3.0 |
| Order Number | 1SBP260605R1001 |
| Number of Channels | 16 discrete output channels |
| Output Voltage | 24 V DC / 250 VAC (depending on variant) |
| Output Current | Up to 0.5 A per channel |
| Output Type | Relay / Solid-state (depending on variant) |
| Response Time | <10 ms typical |
| Isolation | Optical isolation between channels and backplane |
| Mounting | DIN rail or Advant OCS rack compatible |
| Wiring | Screw terminals for easy connection |

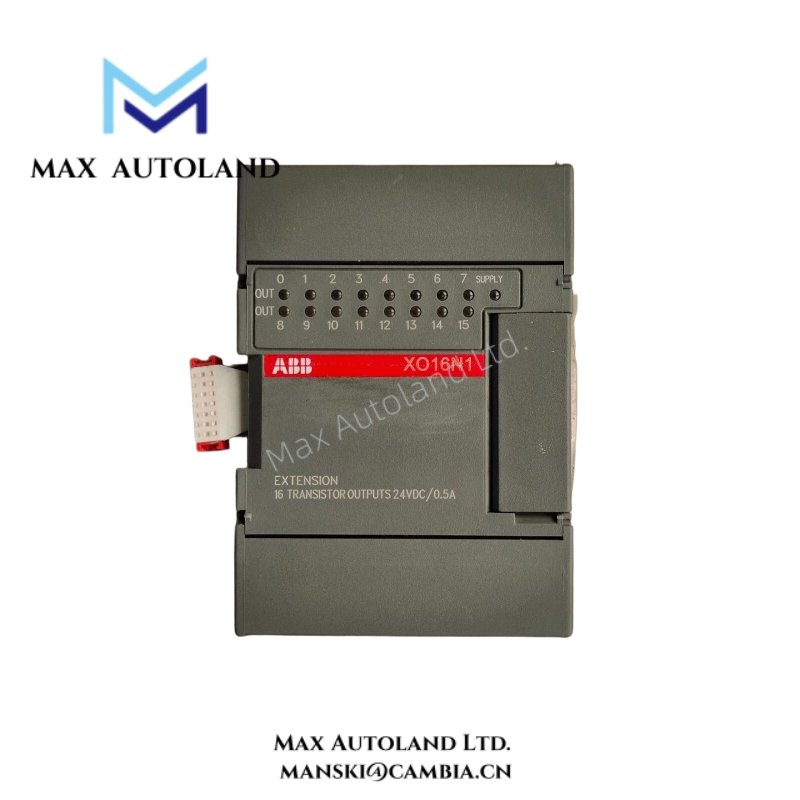

| LED Indicators | Status LEDs for each output channel |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Storage Temperature | -20–70 °C (-4–158 °F) |
| Humidity | 5–95 % non-condensing |
| Dimensions | Standard Advant OCS module size |
| Weight | Approx. 0.5 kg |
| Certifications | CE, UL (where applicable) |
| Protection Features | Short-circuit and overcurrent protection |
| Integration | Fully compatible with Advant OCS systems |
| Applications | Process automation, power plants, manufacturing, remote I/O expansions |
FAQ
A1: The XO16N1-C3.0 module provides 16 discrete output channels, allowing operators to control actuators, relays, and other field devices within Advant OCS automation systems.
Q2: Which systems is the XO16N1-C3.0 compatible with?
A2: This module integrates seamlessly with ABB Advant OCS platforms, enabling reliable communication with I/O racks and process control components.
Q3: What voltage and current ratings does the module support?
A3: Each output channel supports up to 24 V DC or 250 VAC (depending on variant) and can handle up to 0.5 A per channel safely.
Q4: How is the module installed in the control system?
A4: The XO16N1-C3.0 is designed for DIN rail or Advant OCS backplane mounting, with screw terminals for easy wiring and secure connections.
Q5: Does the module provide diagnostic feedback?
A5: Yes, each output channel includes LED indicators for operational status, helping engineers quickly identify active outputs and potential faults.
