Overview
Specification
| Parameter | Specification |
|---|---|

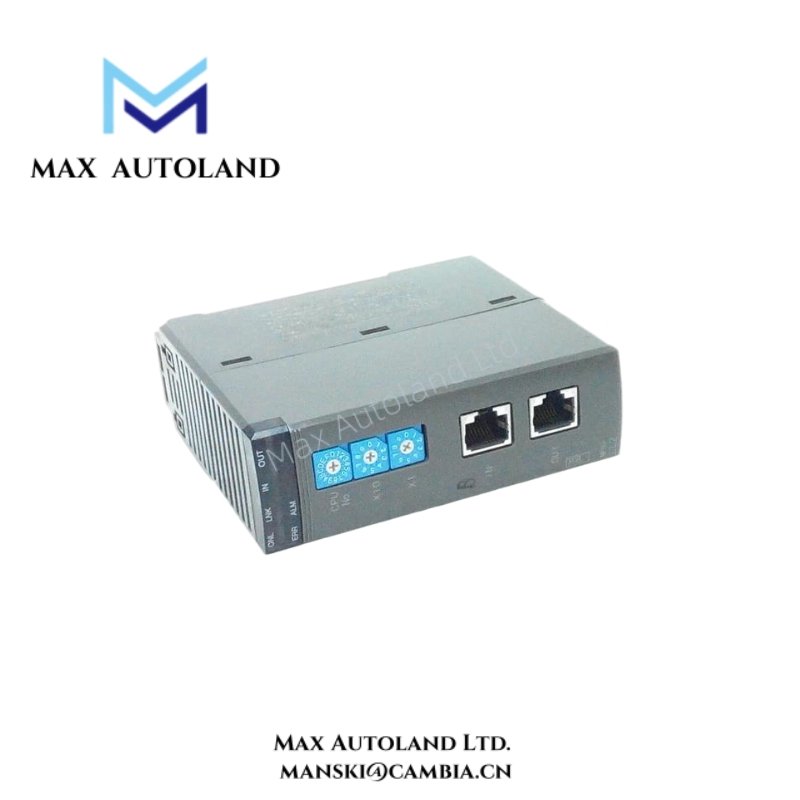

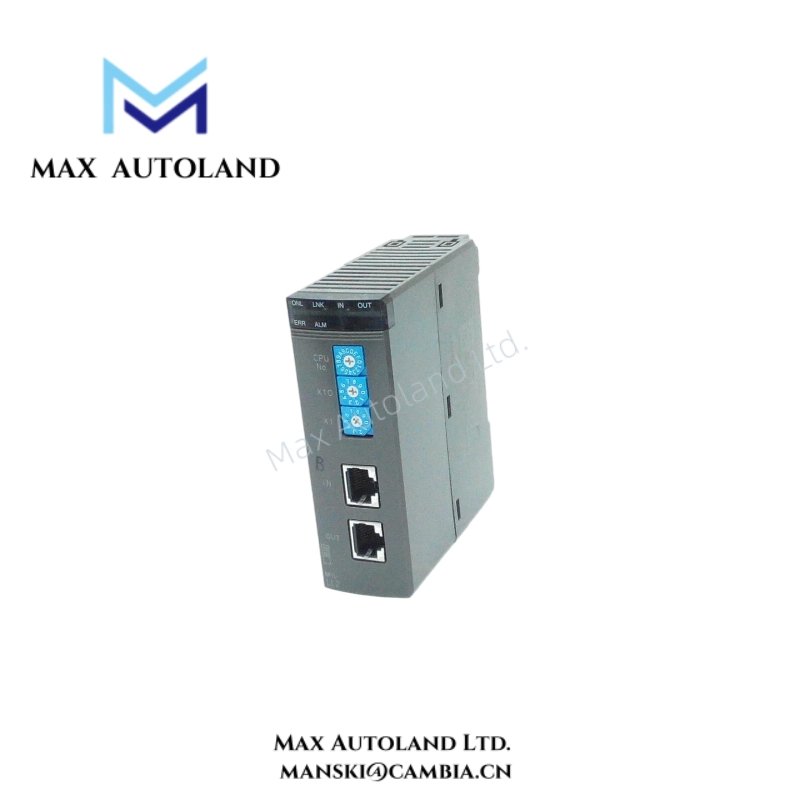

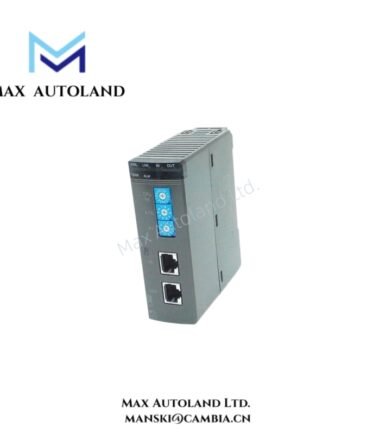

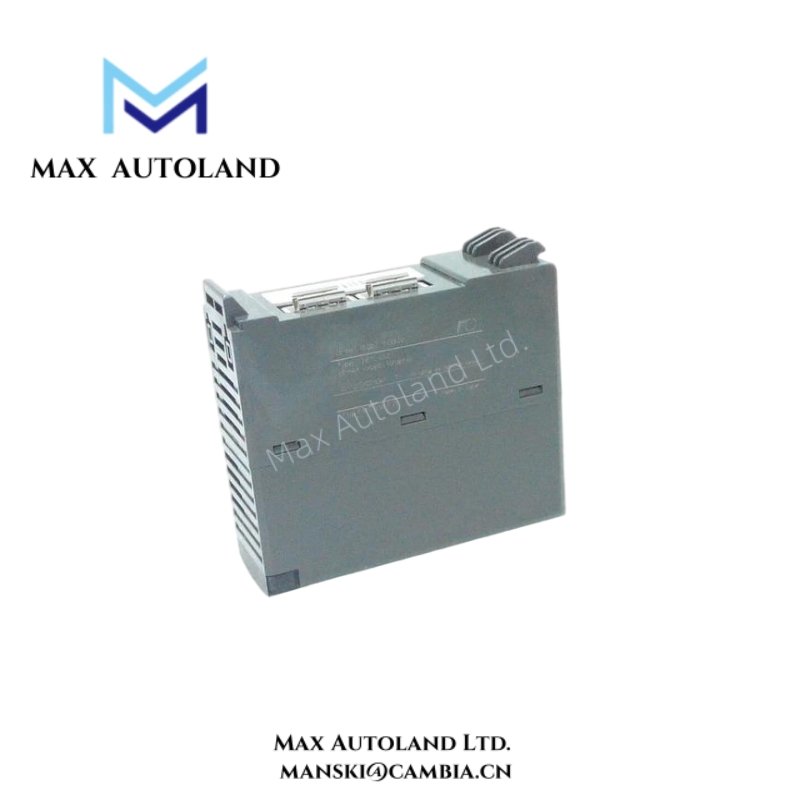

| Model | NP1L-LL2 |
| Manufacturer | FUJI Electric |
| Module Type | LE-net Loop Module |
| Compatible PLC Series | MICREX-SX SPH Series |
| Communication Protocol | FUJI LE-net Fieldbus |
| Network Topology | Loop configuration for distributed I/O |
| Transmission Rate | Up to 1 Mbps |
| Maximum Nodes | Supports up to 32 LE-net nodes per loop |
| Operating Voltage | 24 V DC typical |
| Power Consumption | ≤ 5 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10–90% RH, non-condensing |
| Mounting | DIN rail or PLC rack installation compatible |
| Status Indicators | LED indicators for power, communication, and fault status |
| Compliance & Standards | FUJI Electric industrial standards; CE marking where applicable |
| Maintenance Recommendations | Regular inspection of network connections and cables |
FAQ
A: It is compatible with FUJI MICREX-SX SPH series PLCs.
Q: Which network protocol does it support?
A: The module supports FUJI LE-net fieldbus communication protocol.
Q: How many devices can connect to a single loop?
A: Up to 32 nodes are supported per LE-net loop.
Q: Can it operate reliably in industrial environments?
A: Yes, it is designed for stable operation under standard industrial conditions.
