Overview

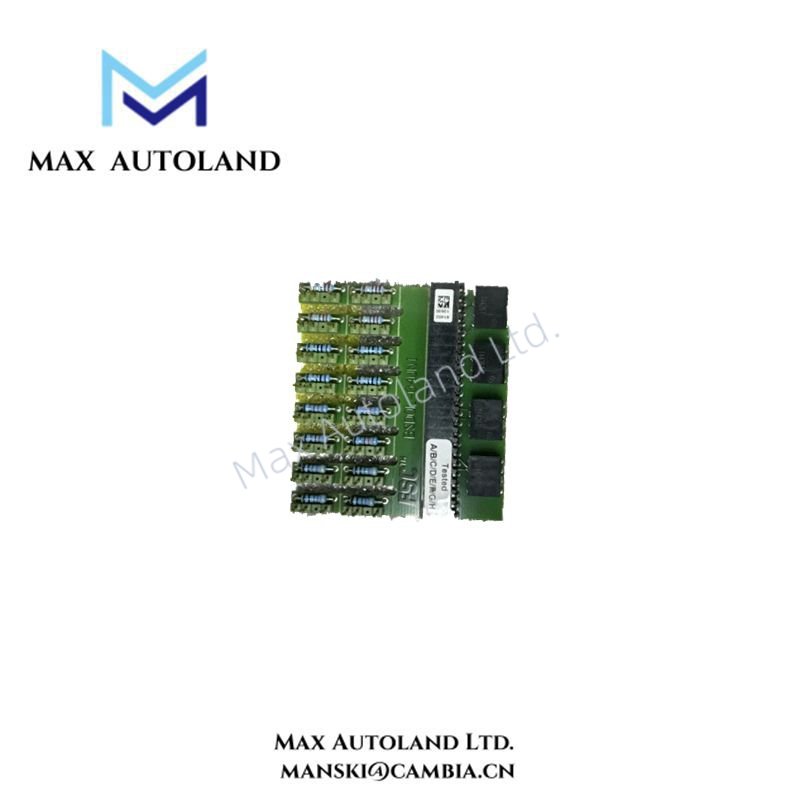

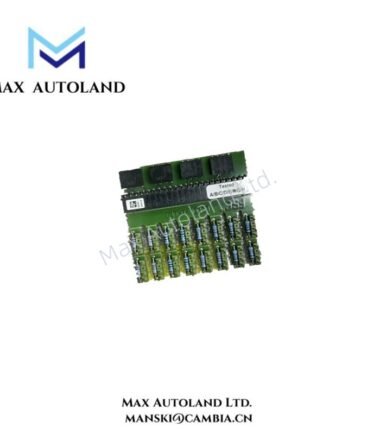

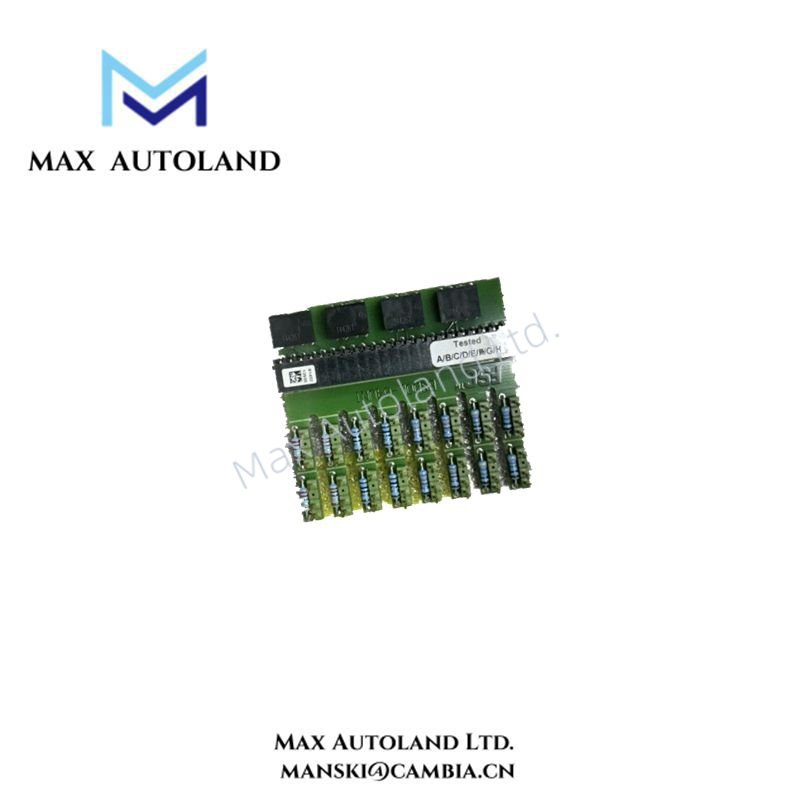

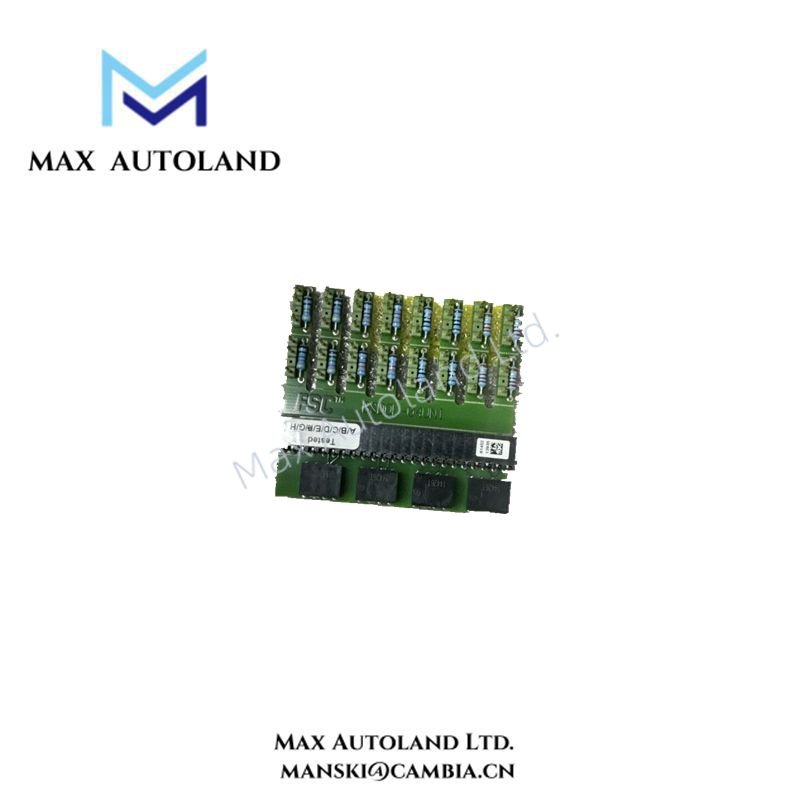

The Honeywell FC-BSDOL-04UNI is a range-setting module specifically designed for Honeywell’s Safety Manager SC system. It connects directly with the SDOL-0424 module, allowing precise adjustment of current sensing thresholds across four output channels. By providing this capability, it enhances diagnostic accuracy and simultaneously prevents false lead-break detection on unused channels, ensuring reliable operation in safety-critical applications.
The BSDOL-04UNI module features multiple break-off sections, which simplify installation and customization. Firstly, the main section (BSDOL-04) must be mounted on the programming connector (Px) of the IO backplane. It offers four range-setting positions corresponding to channels 1 through 4, as detailed in the table below. Additionally, the module includes sixteen range-setting sub-modules (4× type S, 4× type L, 4× type M, 4× type H). These sub-modules must be placed into the four designated positions on the main BSDOL-04 section, ensuring accurate and flexible configuration.
Specification
| General | Type numbers: | FS-BSDOL-04UNI |
| FC-BSDOL-04UNI | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Number of channels: | 4 | |
| Power | Power requirements: | |
| “S” | 5 mA from 24 Vext.of SDOL-0424 | |
| “L”,M”and “H” | None | |
| Load range: | ||
| “S” | None | |
| None | 4-16 mA | |
| 0.1-0.39W at 24V DC(SDOL-0424) | ||
| “L” | 17-47 mA | |
| 0.4-1.1Wat 24VDC(SDOL-0424) | ||
| 0.8-2.3 Wat 48 VDC(SDOL-0448) | ||
| “M” | 48-199 mA | |
| 1.2-4.7 Wat 24VDC(SDOL-0424) | ||
| 2.4-9.5Wat 48 VDC(SDOL-0448) | ||
| “H” | ≥200 mA | |
| ≥4.8Wat 24V DC(SDOL-0424) | ||
| ≥9.6Wat 48V DC(SDOL-0448) | ||
