Overview
Specification
| Parameter | Specification |
|---|---|

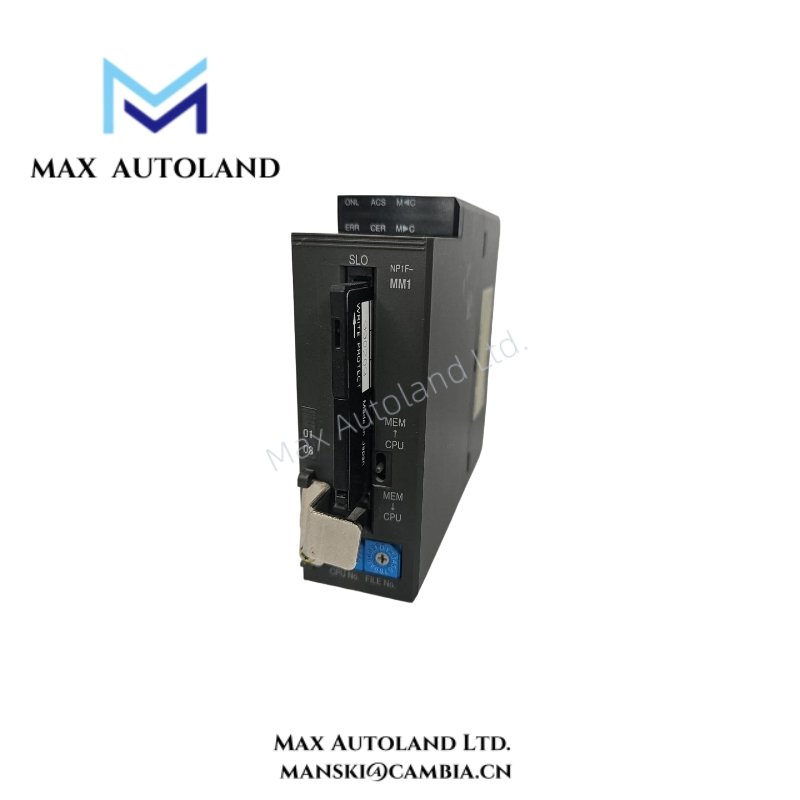

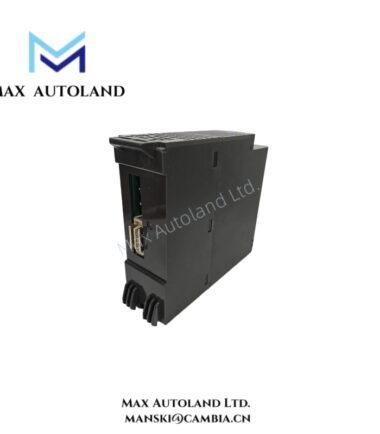

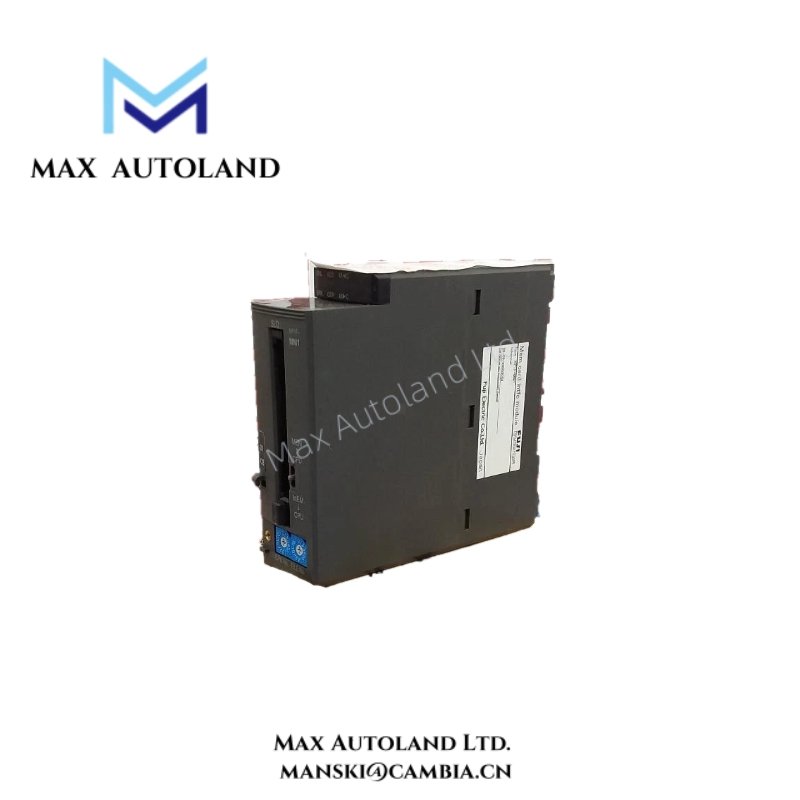

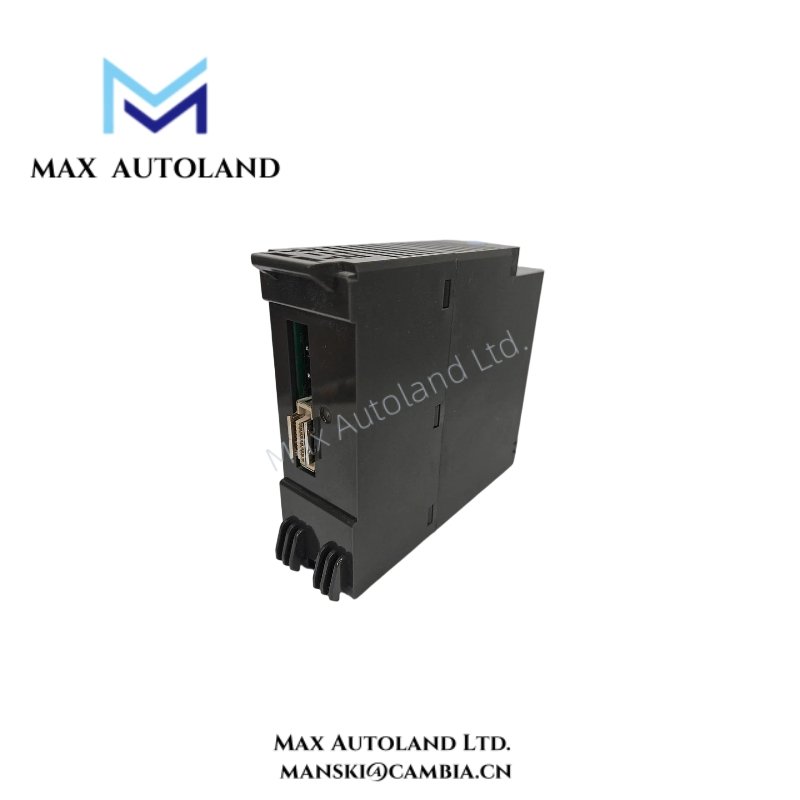

| Model | NP1F-MM1 |
| Manufacturer | FUJI Electric |
| Module Type | Memory Card Interface Module |
| Compatible PLC Series | MICREX-SX SPH Series |
| Memory Card Type | PCMCIA SRAM (standard commercial memory cards) |
| Program Transfer Method | Direct CPU ↔ Memory Card upload/download |
| Data Backup | Supports secure storage of PLC programs and parameters |
| Operating Voltage | 24 V DC typical (check exact model specifications for tolerance) |
| Power Consumption | ≤ 5 W |
| Communication Speed | High-speed interface, optimized for fast program transfer |
| Operating Temperature | 0°C to 55°C (industrial standard) |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10–90% RH, non-condensing |
| Vibration Resistance | IEC standard industrial vibration tolerance |
| Shock Resistance | IEC standard industrial shock tolerance |
| Dimensions (L × W × H) | Approx. 120 mm × 80 mm × 25 mm (exact may vary by series) |
| Mounting | DIN rail or PLC rack installation compatible |
| Status Indicators | LED indicators for power, memory activity, and fault status |
| Compliance & Standards | FUJI Electric industrial standards; CE marking where applicable |
| Maintenance Recommendations | Periodic memory check, ensure proper card insertion, inspect connections |
| Warranty | Standard FUJI Electric warranty (refer to local distributor for details) |
FAQ
A: The module is compatible with the MICREX-SX SPH series PLCs.Q: What memory cards does it support?
A: Standard PCMCIA SRAM memory cards are supported for data storage.Q: Can I upload and download programs directly?
A: Yes, the module allows direct transfer between the CPU and memory card.
Q: Is this module suitable for harsh industrial environments?
A: Yes, it is designed for stable operation under standard industrial conditions.
