Overview

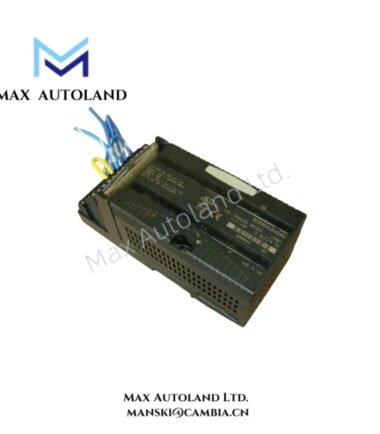

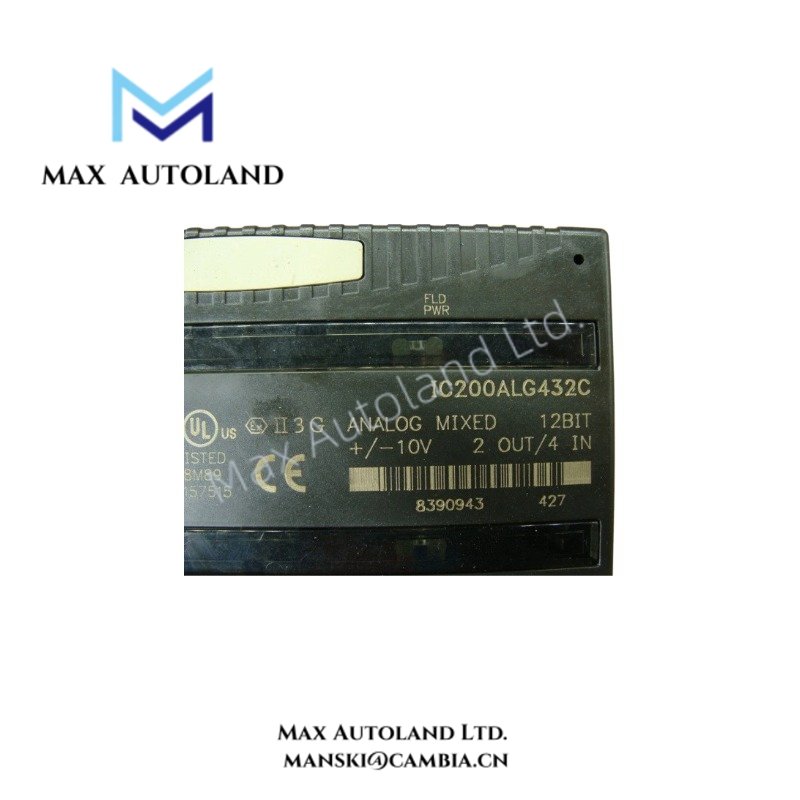

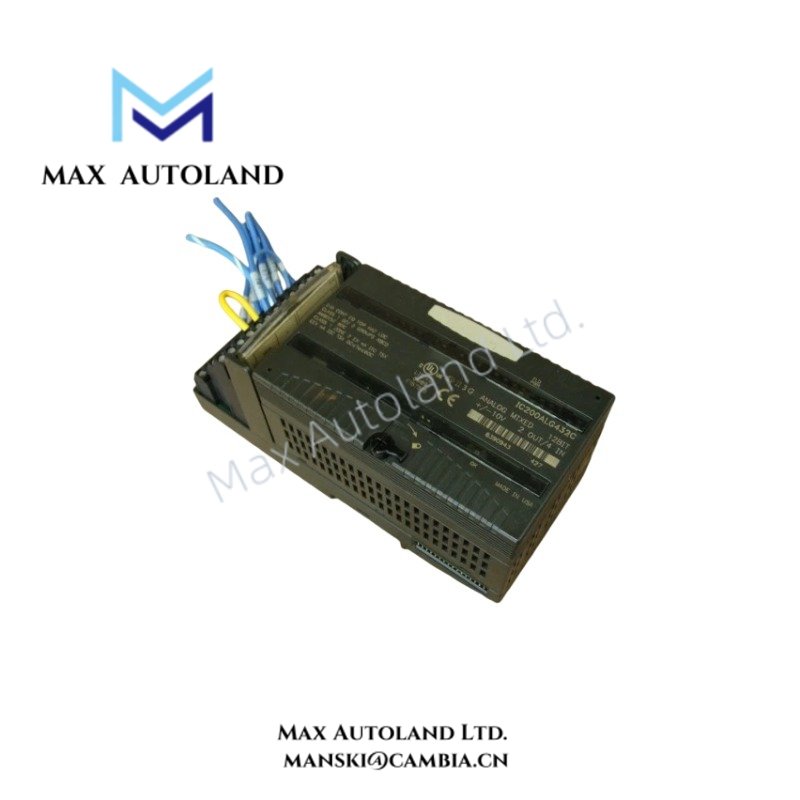

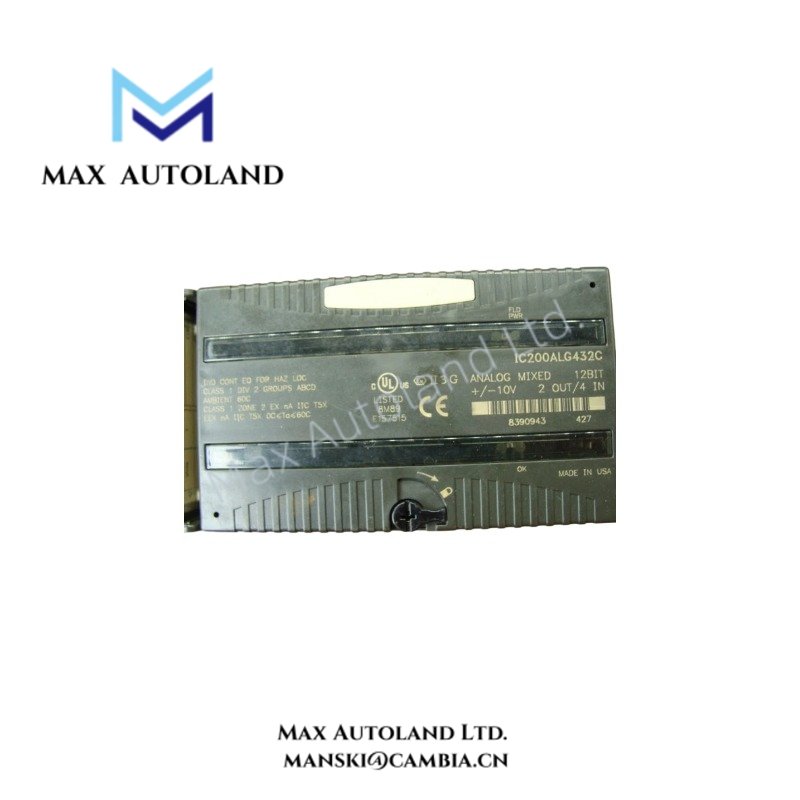

Configured for mixed analog signal processing in VersaMax distributed I/O systems, the GE Fanuc IC200ALG432B (IC200ALG432 Mixed Analog Module) provides direct physical and electrical execution for analog field signal acquisition and output handling. The module operates with a 10 VDC signal range and supports a 0.4 ms update rate, while its specified response time is 5 ms.
Suffix Breakdown & Model Matrix
The supplied data identifies IC200ALG432B as the complete product model and IC200ALG432 as the base model. No further suffix decoding is provided in the available technical data.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200ALG432B |
| Base Model | IC200ALG432 |
| Brand | GE Fanuc |
| Manufacturer | General Electric |
| Series | VersaMax |
| Product Type | Mixed Analog Module |
| Origin | USA |
| Weight | 0.1 kg |
| Dimensions | 10.8 cm x 11.4 cm x 5.7 cm |
| Power Consumption | 160 mA |
| Signal Voltage | 10 VDC |
| Resolution | 8 counts |
| Update Rate | 0.4 ms |
| Response Time | 5 ms |
| Common Mode Voltage | 0 V |
| Accuracy at 25 deg C | +/- 0.3% of full scale |
| Accuracy at 60 deg C | +/- 1% maximum |
| Tariff Code | 8537101190 |
VersaMax Backplane Communication and I/O Scaling
The IC200ALG432B interfaces with the VersaMax I/O architecture through the system backplane. The module exchanges analog data with the controller while maintaining the specified update cycle for field signal processing. Its mixed analog configuration supports compact I/O density within a distributed hardware assembly.
Firmware and controller compatibility should be verified against the installed VersaMax CPU and backplane configuration before system commissioning. In addition, confirm the module position and available system power capacity when adding or replacing hardware.
Frequently Asked Questions
Q: What analog performance values are specified for the IC200ALG432B?
A: The supplied data specifies a 10 VDC signal voltage, 8 counts resolution, a 0.4 ms update rate, and a 5 ms response time.
Q: How does temperature affect the specified accuracy?
A: Accuracy is specified as +/- 0.3% of full scale at 25 deg C and +/- 1% maximum at 60 deg C.
Q: What should be checked before installing the module in a VersaMax system?
A: Verify the correct module position, backplane compatibility, available power capacity, field wiring, and controller firmware compatibility. Keep analog signal wiring separated from high-current conductors to reduce electrical interference.
Field Installation Guidelines
Install the IC200ALG432B in the correct VersaMax I/O position according to the system hardware configuration.
Disconnect or isolate system power before inserting or removing the module unless the applicable system documentation explicitly permits powered replacement.
Route analog signal wiring separately from motor leads, relay output wiring, and other high-current conductors. Use shielded cable where the field installation requires noise suppression, and terminate cable shields according to the site grounding design.
Verify signal polarity and voltage range before connecting field devices. After installation, confirm module recognition through the controller configuration and validate analog values against known field references.
