Overview

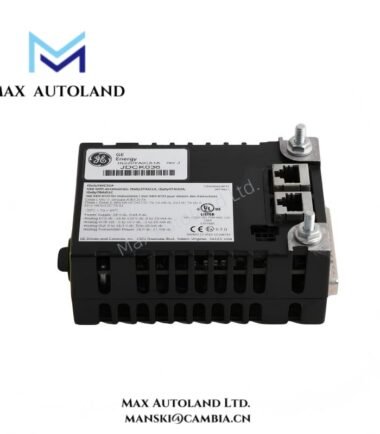

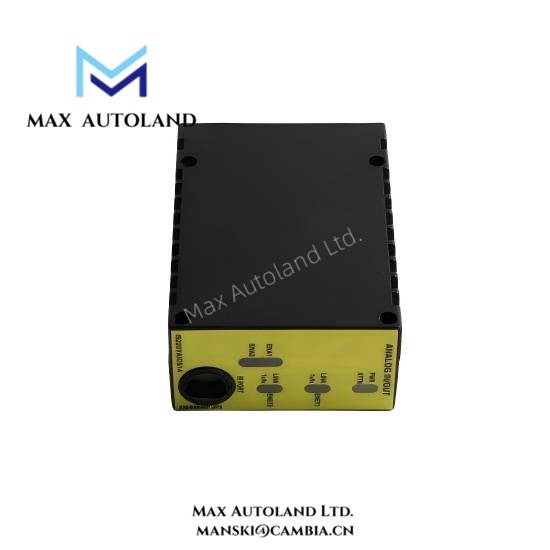

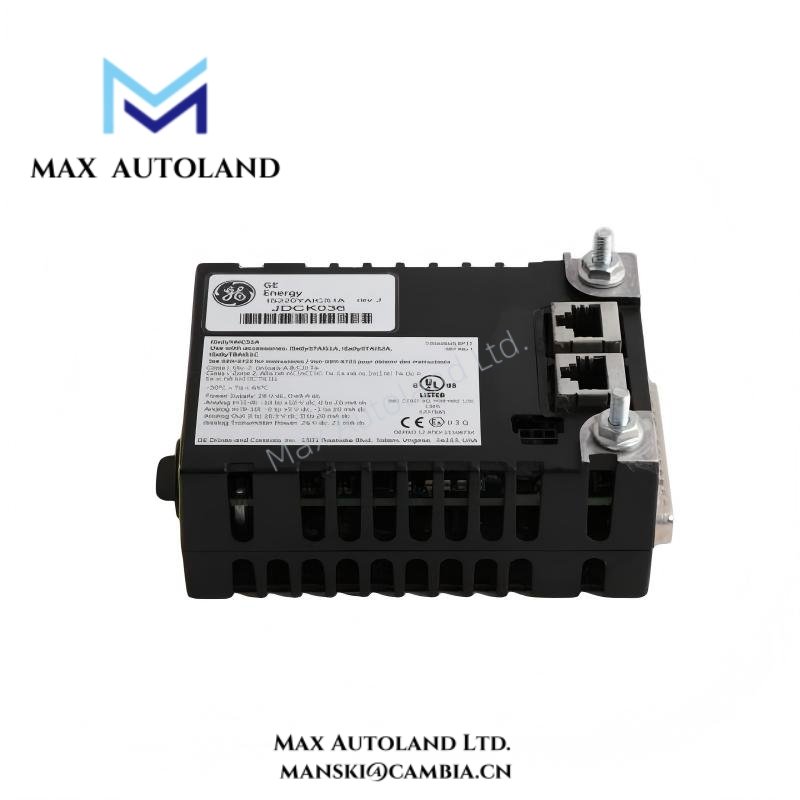

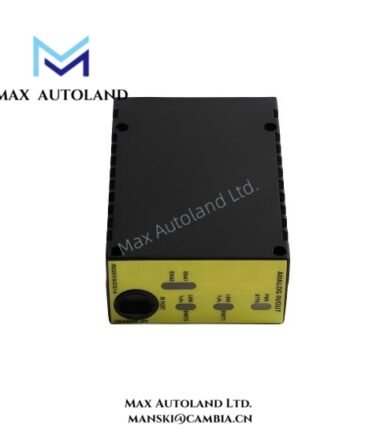

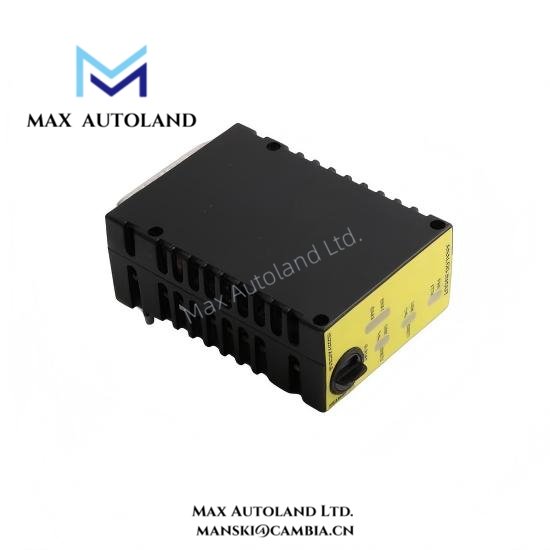

The IS220YAICS1A is a high-performance analog input/output module designed for the GE Mark VIeS Turbine Control System. It delivers accurate analog signal acquisition and output control, enabling precise turbine regulation. GE engineered this module to maintain reliability under harsh industrial environments while supporting seamless system integration.
This module features a compact design, energy-efficient circuitry, and enhanced component durability. Its architecture supports multiple analog channels and provides rapid signal response for dynamic turbine operations. Installation and diagnostics are simplified through standardized connectors and integrated monitoring points.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | GE (General Electric) | Leading global turbine control systems provider. |
| Model | IS220YAICS1A | Full Mark VIeS compatible Analog I/O Pack. |
| Series | Mark VIeS YAIC | Supports GE turbine analog input/output requirements. |
| PCB Type | Analog I/O Module | Multi-layer PCB optimized for signal integrity and thermal management. |
| Dimensions | 220 mm × 120 mm × 40 mm | Compact rack-mount design for standard 19-inch slots. |
| Weight | 0.95 kg | Lightweight yet reinforced for vibration and shock resistance. |
| Input Channels | 8 analog inputs | Supports 0–20 mA and 4–20 mA signals with high precision. |
| Output Channels | 8 analog outputs | Voltage or current output, 16-bit resolution, fast response. |
| Processor | Dual microcontroller cores | Handles real-time analog signal processing with redundancy. |
| Memory | Onboard non-volatile memory | Retains configuration and calibration settings. |
| Energy Storage | 150 mF capacitor bank | Ensures stable operation during transient voltage fluctuations. |
| Mounting | Rack-mounted, standard 19-inch slot | Equipped with locking connectors for secure installation. |
| Operating Temperature | -20°C to 70°C | Suitable for industrial turbine hall environments. |
| Humidity Tolerance | 5% – 95% non-condensing | Ensures reliable performance under varying humidity. |
| Compliance | CE, UL, RoHS | Meets international safety and environmental standards. |
| Typical Lifespan | 10+ years | Designed for long-term continuous turbine operations. |
| Diagnostics | Integrated monitoring points | Supports real-time diagnostics and GE software integration. |
FAQ
Q1: Is the IS220YAICS1A brand new and genuine?
A1: Yes, this module is 100% brand-new and factory original.
Q2: How quickly can you ship the module?
A2: We ship within 3 days to 2 weeks depending on order quantity.
Q3: Which shipping options are available?
A3: We commonly use DHL, FedEx, and UPS for secure delivery.
Q4: What if the module has quality issues?
A4: We support returns within 30 days for manufacturing defects.
Q5: How many analog channels does IS220YAICS1A support?
A5: It provides 8 analog inputs and 8 analog outputs with 16-bit resolution.
Q6: Can this module operate in harsh environments?
A6: Yes, it functions reliably from -20°C to 70°C and 5%–95% humidity.
