Overview

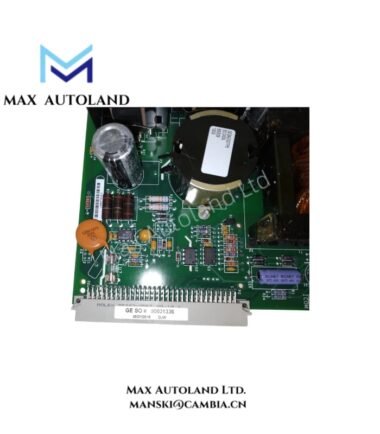

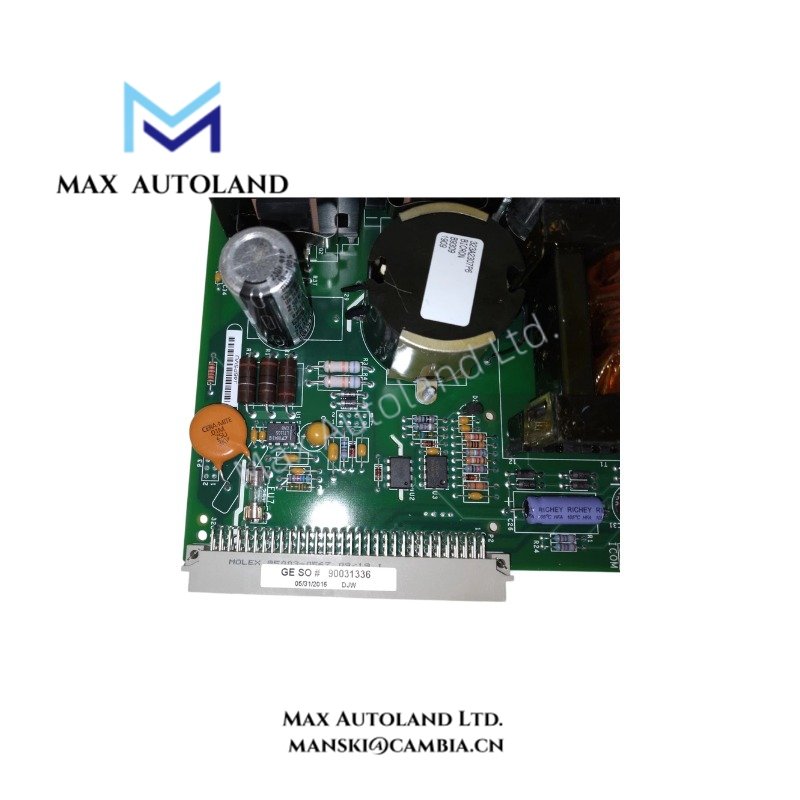

Configured for power conversion and isolated contact-wetting supply in the GE EX2100 excitation system, the General Electric IS200EPSMG1A (IS200EPSM Power Board) provides direct electrical power conditioning. It accepts 125 VDC input and provides a regulated +5 VDC output rail.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200EPSMG1A |
| Brand | General Electric |
| Series | EX2100 |
| Product Type | Exciter Power Supply Module |
| Function | Power Board |
| Origin | USA |
| Weight | 1.1 kg |
| Dimensions | 8 x 18.6 x 26.1 cm estimated shipping size |
| Input Voltage | 125 VDC +/-10% |
| Output Rail | +5 VDC @ 6 A |
| Isolated Contact-Wetting | +70 VDC @ 0.2 A |
| Efficiency | > 85% @ 50% load |
| Isolation | 2.5 kVAC input-to-output |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -45 deg C to +85 deg C |
| Humidity | 95% RH non-condensing |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
Industrial Control and Power Interface
The IS200EPSMG1A receives a nominal 125 VDC input and converts the incoming supply into the specified +5 VDC rail at up to 6 A. This power path supports the electrical requirements of the associated EX2100 hardware.
The module also provides an isolated contact-wetting output of +70 VDC at 0.2 A. Therefore, the input and output sides maintain electrical isolation rated at 2.5 kVAC.
The specified efficiency exceeds 85% at 50% load. The operating temperature range extends from -40 deg C to +70 deg C, while storage conditions extend from -45 deg C to +85 deg C.
Frequently Asked Questions
Q: What input voltage does the IS200EPSMG1A accept?
A: The module accepts 125 VDC with a specified tolerance of +/-10%.
Q: What output does the IS200EPSMG1A provide?
A: It provides a +5 VDC output rail rated at 6 A, plus an isolated +70 VDC contact-wetting output rated at 0.2 A.
Q: What isolation rating does the module specify?
A: The specified input-to-output isolation rating is 2.5 kVAC.
Field Installation Guidelines
- Verify the module model and electrical ratings before installation.
- Confirm that the available DC supply matches the specified 125 VDC input range.
- Maintain correct polarity and secure all power connections according to the applicable GE EX2100 installation documentation.
- Route power wiring separately from low-level signal wiring where practical to reduce electrical interference.
- Keep conductive debris, loose hardware, and contamination away from the PCB and its connectors.
- Ensure the installation environment remains within the specified -40 deg C to +70 deg C operating range and 95% RH non-condensing humidity limit.
- Provide adequate ventilation around the assembly so heat can dissipate under load.
- Do not apply voltage to the module until the wiring, connector seating, and supply polarity have been verified.
